Received Utilization: The ratio of each port receiving traffic and current port‟s total
bandwidth.
Bytes Sent: The total bytes sent from current port.
Frames Sent: The total frames sent from current port.
Sent Utilization: The ratio of real port sending traffic ratio to current port of total bandwidth.
Total Bytes: Total bytes of receiving and send from current port.
Total Utilization: Real traffic of received and sent to current port of total bandwidth.
Clear All: This will clear all port's counter values and be set back to zero.
4.5.3 Port Packet Error

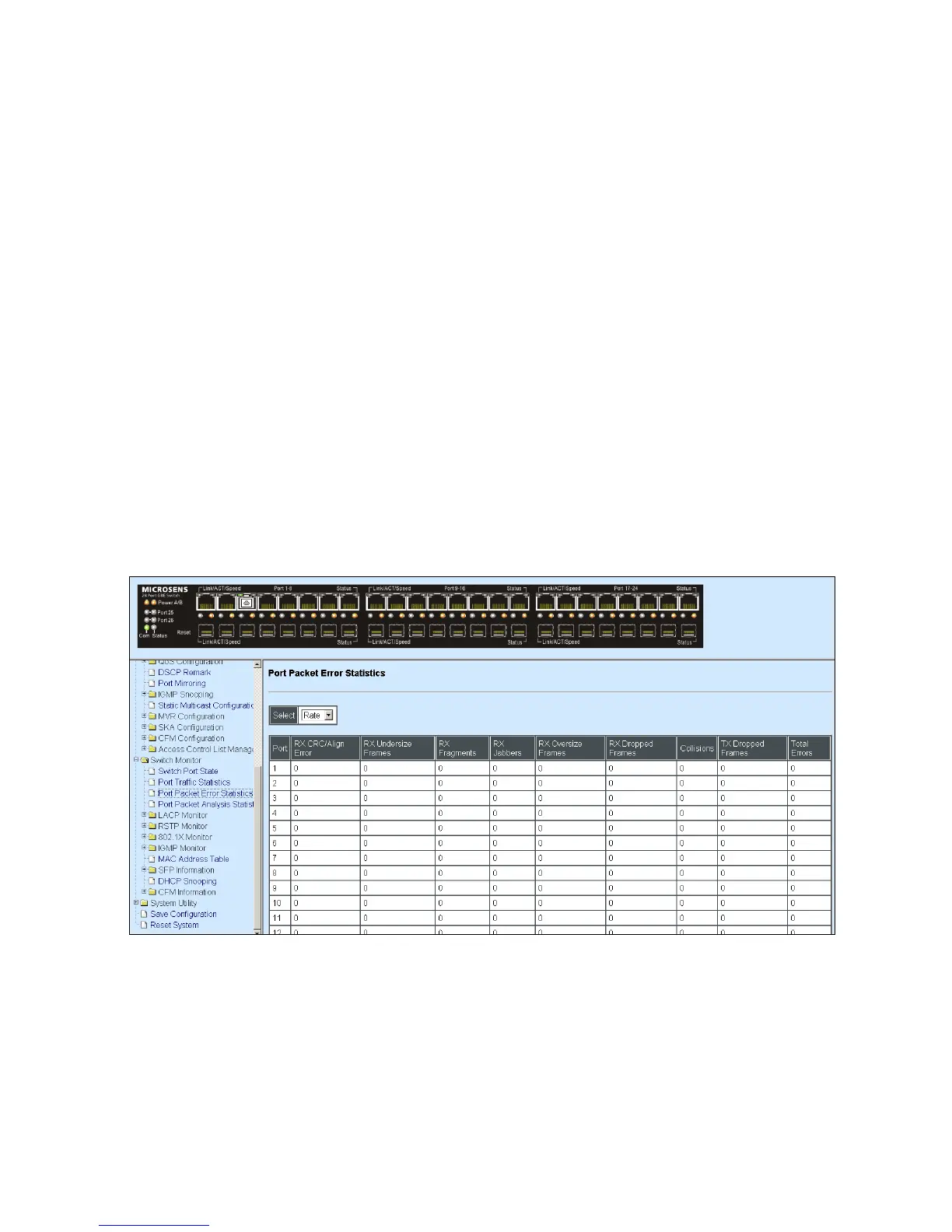

Port Packet Error Statistics mode counters allow users to view the port error of the
Managed Switch. The event mode counter is calculated since the last time that counter was
reset or cleared. Select Port Packet Error Statistics from the Switch Monitor menu and
then the following screen page appears.
Select: Choose the Packet Error Statistics from the pull-down menu.
RX CRC/Align Error: CRC/Align Error frames received.
RX Undersize Frames: Undersize frames received.
RX Fragments Frames: Fragments frames received.
