Strict: This indicates that services to the egress queues are offered in the sequential order
and all traffic with higher priority queues are transmitted first before lower priority queues are
serviced.
Weight: Weighted Round-Robin shares bandwidth at the egress ports by using scheduling
weights 1, 2, 4, 8 for queues 1 through 4 respectively.

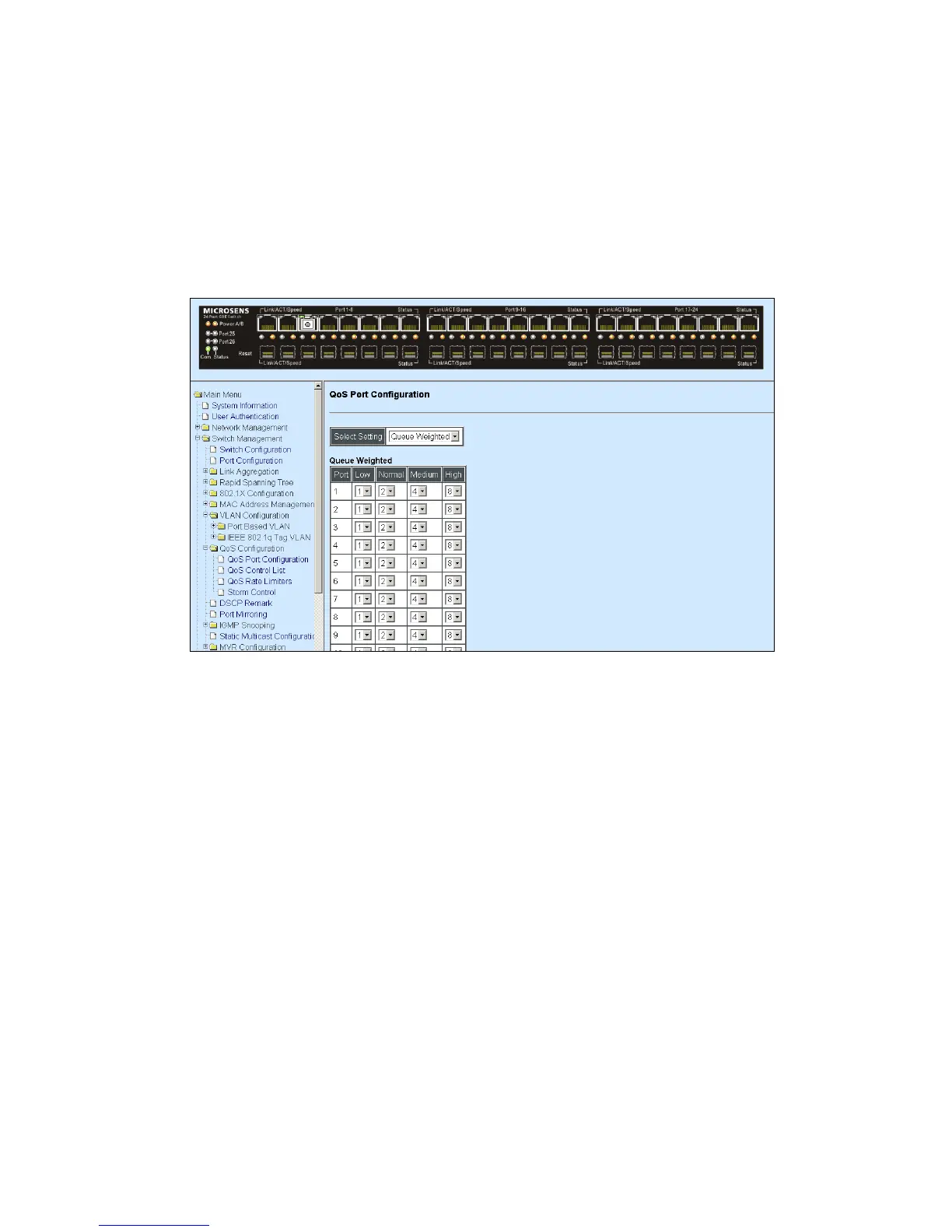

Configure Queuing Weighted:
Click the pull-down menu to select values of Queue weighted for each port.
4.4.8.2 QoS Control List
The following screen page appears if you choose QoS Priority Configuration and then
select QoS Control List.
