Root ID: Display this Managed Switch‟s Root ID.
Root port: Display this Managed Switch‟s Root Port Number.
4.5.6.2 RSTP Port Status

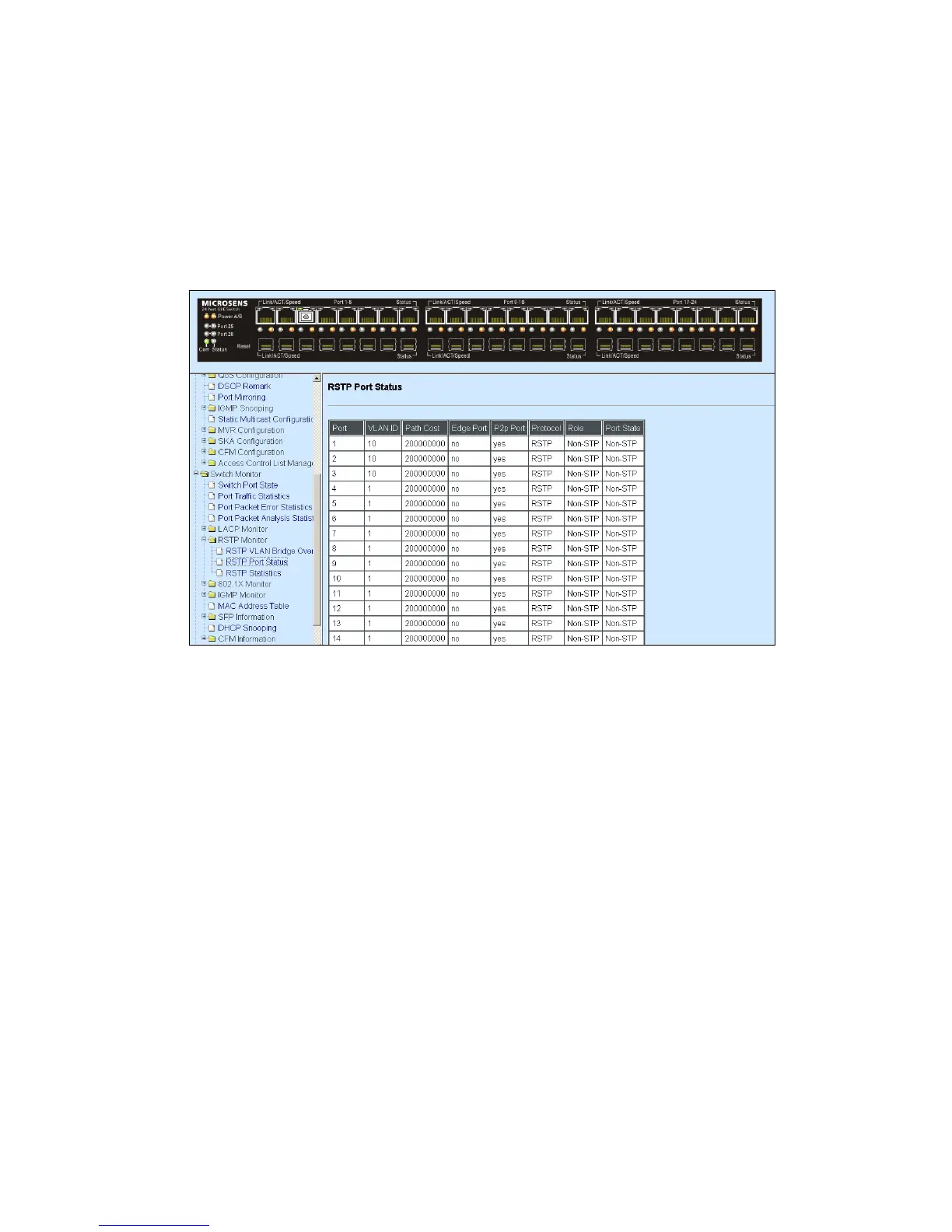

RSTP Port Status allows users to view a list of all RSTP ports‟ information. Select RSTP
Port Status from the RSTP Monitor menu and then the following screen page appears.
In this page, you can find the following information of a RSTP port:
Port Number: The number of the port.
VLAN ID: The VID of the VLAN that this port belongs to.
Path Cost: The Path Cost of the port.
Edge Port: “Yes” is displayed if the port is the Edge port connecting to an end station and
does not receive BPDU.
P2p Port: “Yes” is displayed if the port link is connected to another STP device.
Protocol: Display RSTP or STP.
Role: Display the Role of the port (non-STP, forwarding or blocked).
Port State: Display the state of the port (non-STP, forwarding or blocked).
