IEEE 802.1ag also defines the following network error status to be conveyed in the CCM.
MACstatus
Either some remote ND is reporting its interface as not ready to pass both the data
packets and BPDU, or all remote NDs are reporting their interfaces as not able to
pass ordinary data packets.
RemoteCCM
The ND is not receiving valid CCMs from at least one of the remote NDs.
ErrorCCM
The ND has received at least one invalid CCM whose CCM Interval has not yet timed
out.
XconCCM
The ND has received at least one CCM from either another VLAN or a lower MD
Level whose CCM Interval has not yet timed out.

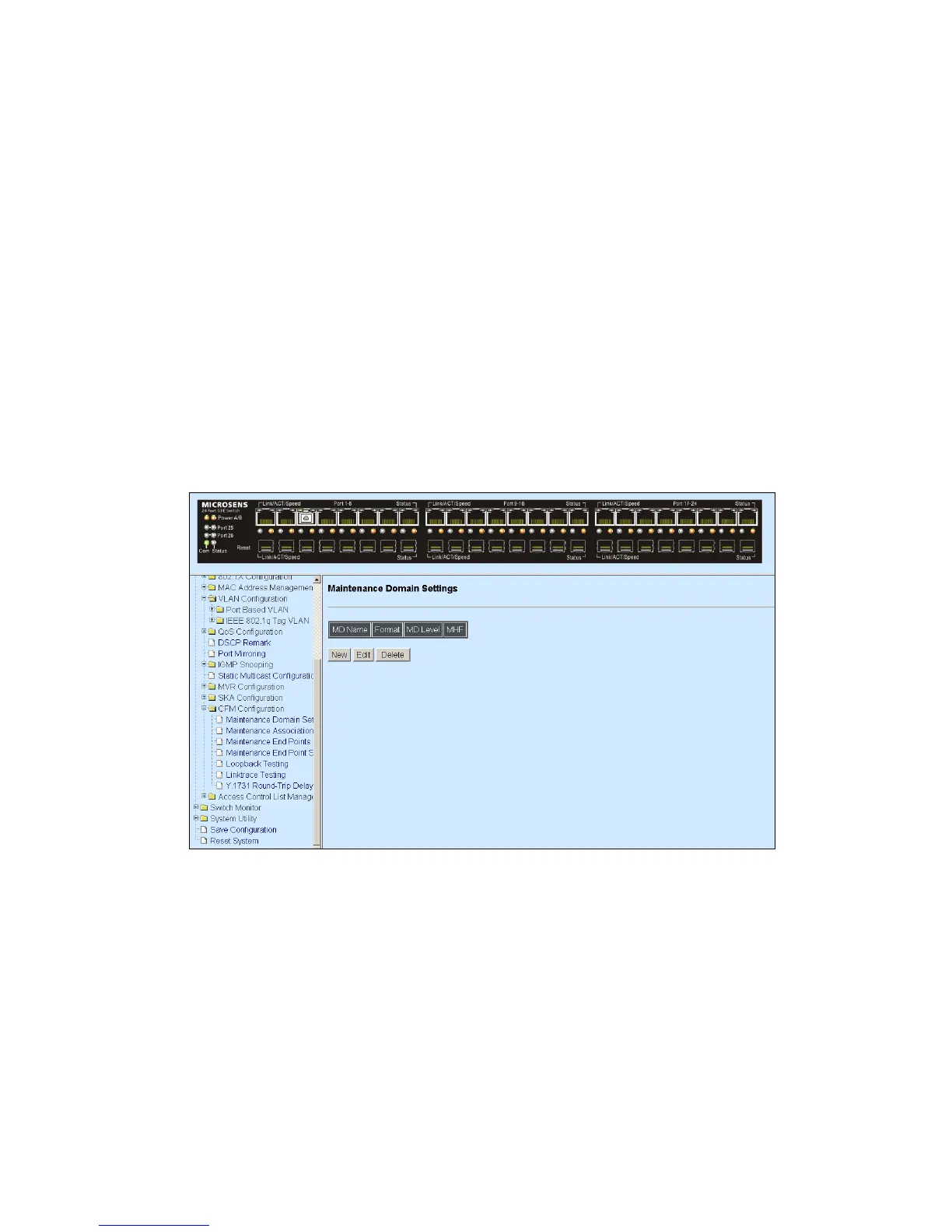

Select the folder CFM Configuration from the Switch Management menu and then the
following screen page appears.
Maintenance Domain Settings: To register or remove CFM Maintenance Domain.
Maintenance Association Settings: To register or remove CFM Maintenance Association
under a Maintenance Domain.
Maintenance End Point List: To register or remove MEP ID from a Maintenance
Association.
Maintenance End Port Settings: To configure MEP setting of the Managed Switch.
Loopback Testing: To activate Loopback test and configuration.
