Microsens MS400870M Series User Manual

142

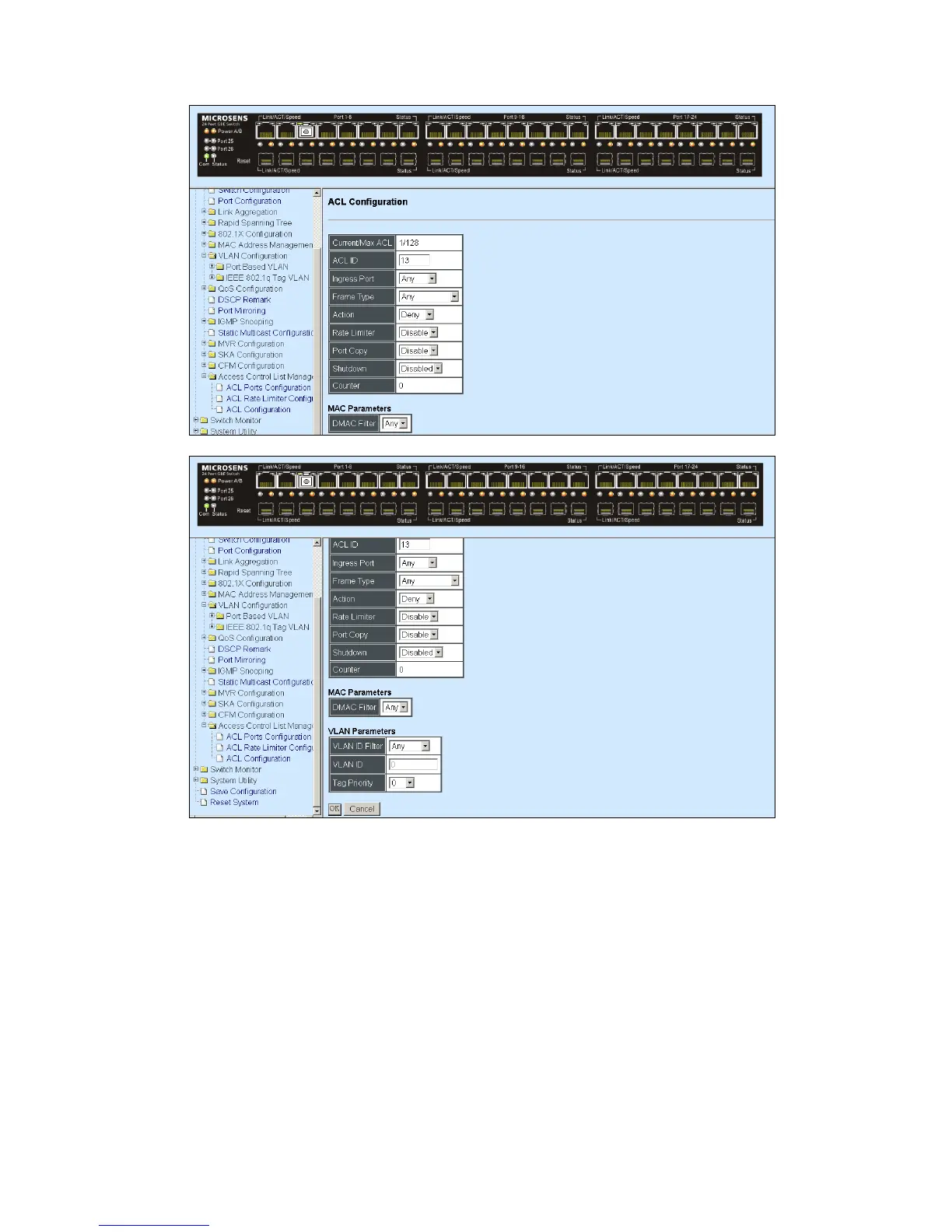

MAC Parameters
DMAC Filter: Slect the DMAC Filter from the pull-down menu.
VLAN Parameters
VLAN ID Filter: Select “Any” or “Specific” for VLAN ID Filter.
VLAN ID: Specify a VLAN ID.
Tag Priority: Select the tag priority from the pull-down mneu.
When information conforms to MAC and VLAN parameters, then actions set in “Frame
Type”, “Action”, “Rate Limiter”, “Port Copy”, and “Shutdown” will be taken into consideration.
Ingress Port: Select Policy 1~8 or the port number from the pull-down menu.
Frame Type: Select the desired frame type.
