Revision:1.0(2023-01-12)
93
7)
Connect
the
power
supply
.
The
power
socket
is
at
the
bottom
of
the
right
side
of
the
module.
Pay
attention
to
the
connection
direction.
Then,
use
V
elcro
tapes
to
arrange
the
power
cord.
2.
On
the
wall

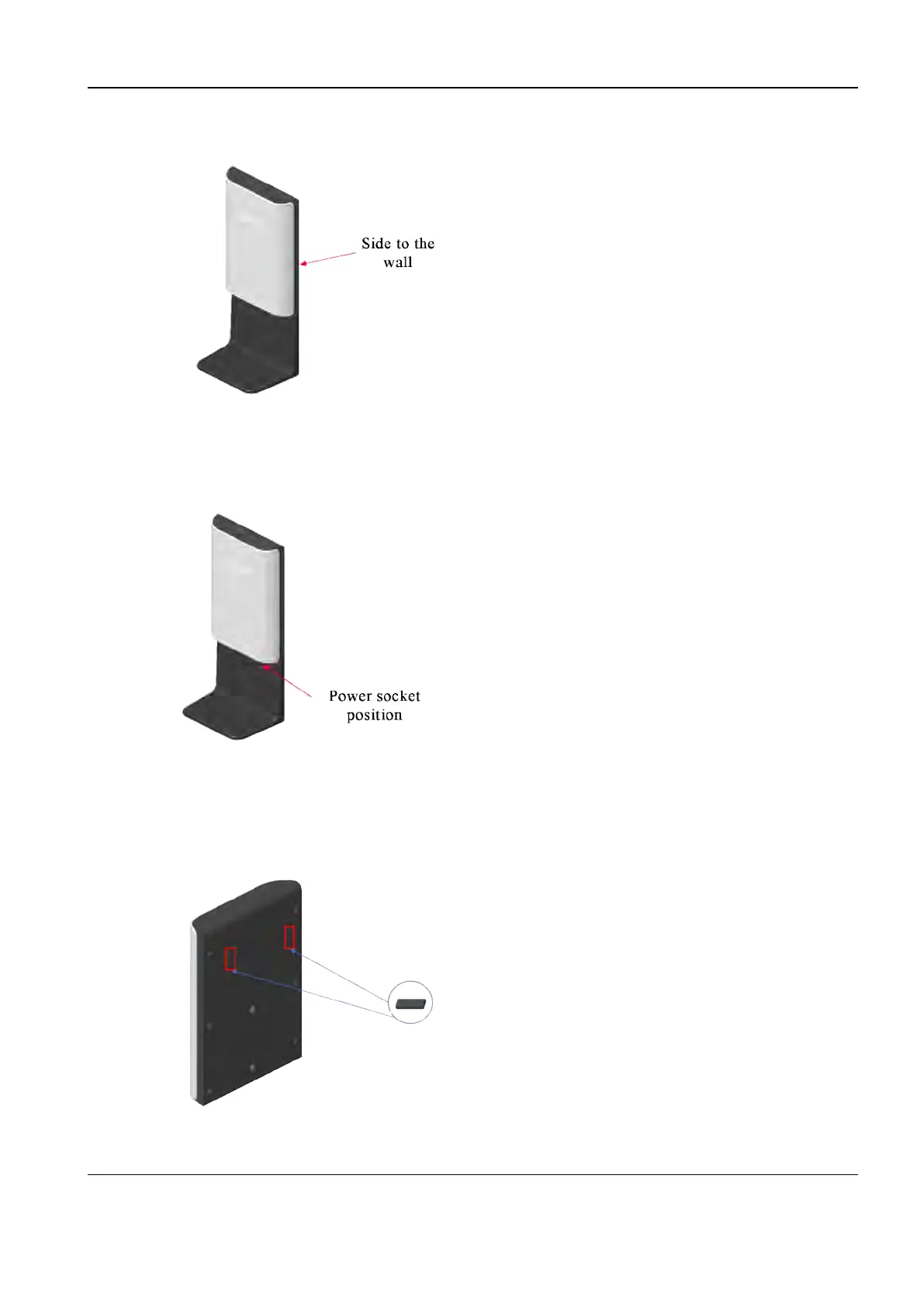

1)
Mount
the
thin
cushion
on
the
rear
of
the
Charging
Pile
module(China),
as
shown
in
the
figure
below
.
2)
Mark
the
positions
of
the
four
mounting
holes
on
the
wall,
as
shown
in
the
figure
below
.
Diagnostic
Ultrasound
System
Service
Manual
3
Installation
91
93
