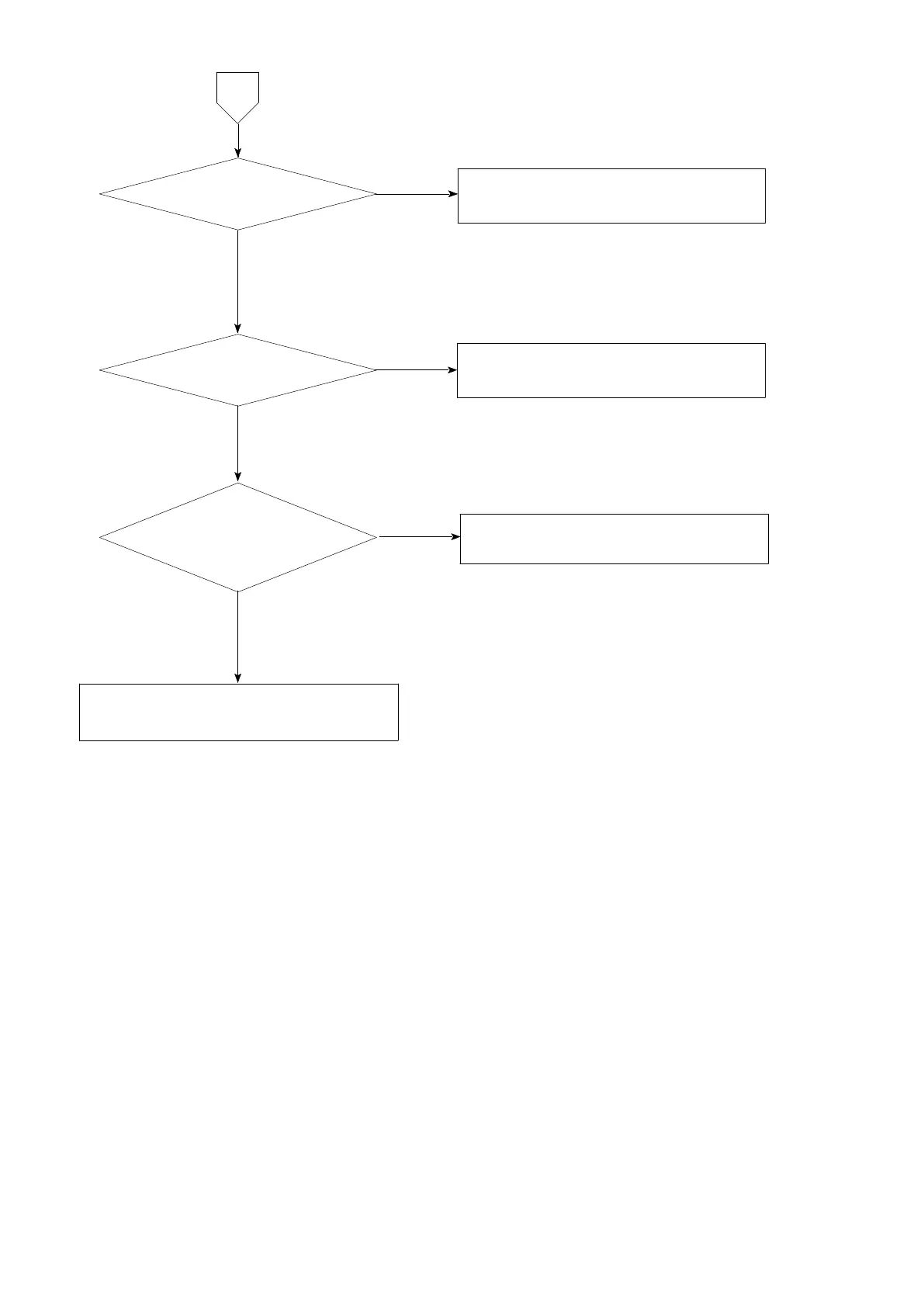

Key lock has set with

Function FUNC−06.

Either the HOLD of

external control input or

BCD output is used.

Status display LOCK

lights up.

Set the external control LOCK to open.

Cancel the key−lock with Function

FUNC−06.

Set the HOLD input open.

Inform Minebea about the contents of

failure and situation at site in details.
