Procedures

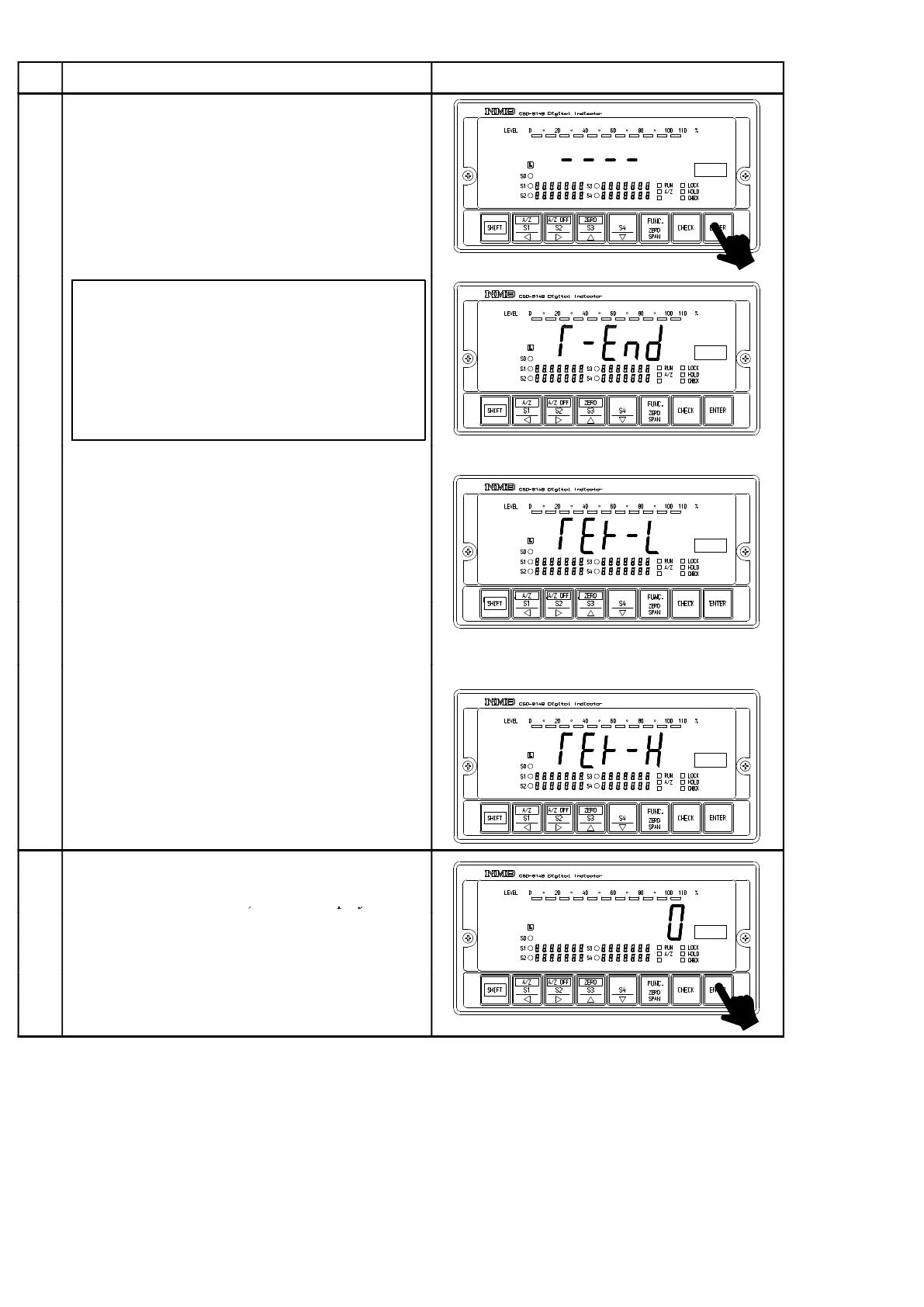

Press the key.

The load display will show “− − − −” with

flashing display on and off, then zero adjustment

can be started.

Warning

：

At the same time, take care

not to apply load vibration due to

vibration and so on.

When load vibration is applied, there will

be possibilities that zero point will be

unstable, and precise reading of zero will

not be obtained.

If completed, the load display will become

“T−END”.

However, when the initial load is not entered

within the range of 0.0 mV/V to 2.4 mV/V, the

Error code shown in the right figure will be

displayed for about 2 seconds, then the “ZERO”

display will be shown on load display and

returns to step 8.

Error Code

“TER−L” : Zero point − over

“TER−H” : Zero point + over

Error Code

Press the key.

After CCAL mode is over, the load display will

show

the

present

load.

fter

mode

over

the

load

display

will

show the present load.
