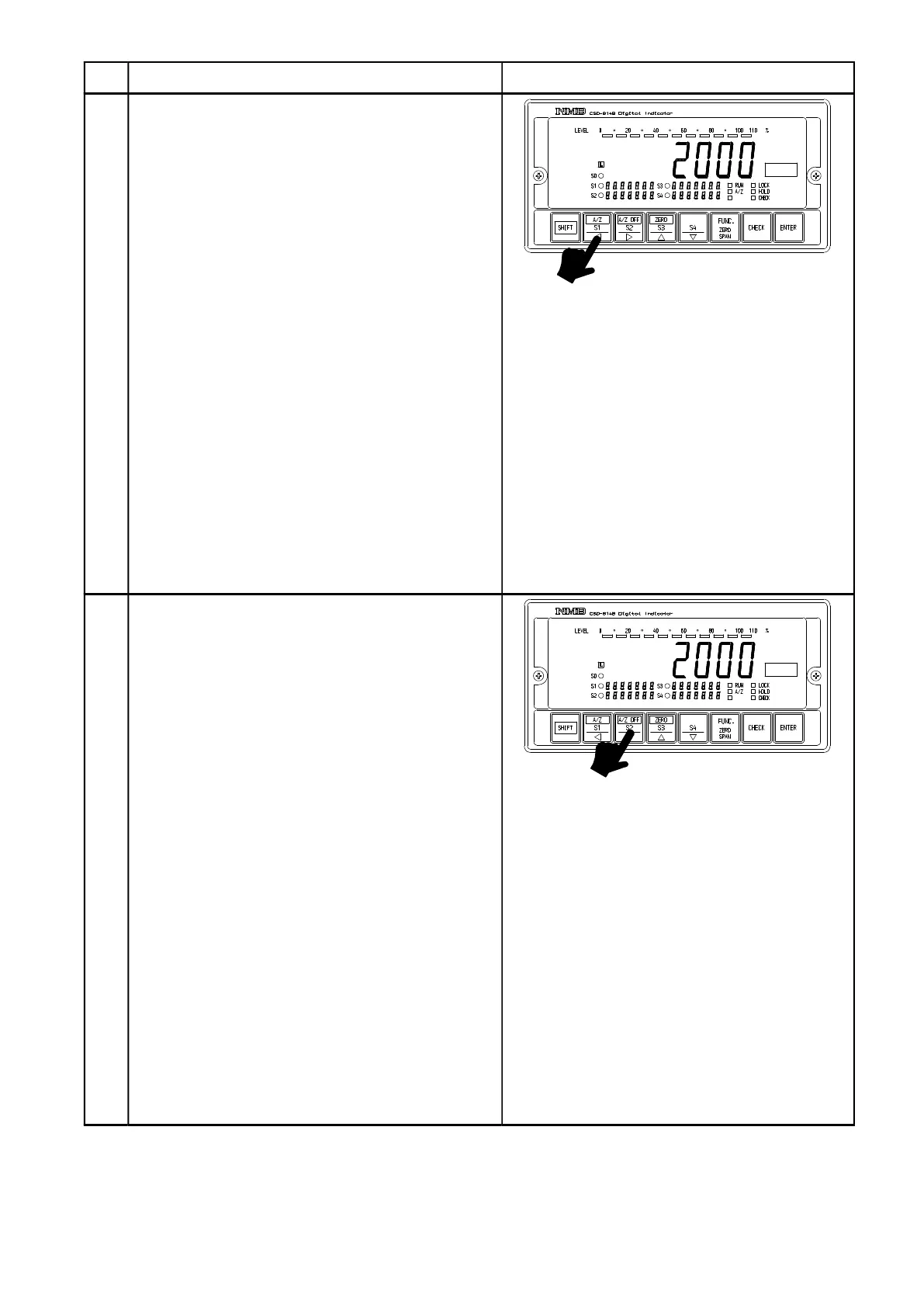

Procedures
1
Change S1 set value
When the key is pressed in Measurement
mode, 10
0
digit of S1 set value display on front
panel will flash, then S1 setting can be
changeable.
Every time the key is pressed, the flashing
digit will change from 10
0
digit → 10
1
digit →
10
2
digit → 10
3
digit → 10
4
digit → 10
5
digit and
polarity (POL). Conversely, when returning the
flashing digit, press the key.
Change the set value by the key or key
after flashing the digit which is desired to change.
After fixing up the change, press the key. The
flashing digit on S1 set value display will light.
Moreover, when the instrument is left untouched
for about 20 seconds, with the status of
whichever digit on S1 set value display, the
automatically flashing digit will light. In case of
changing set value of S2, S3, and S4 successively,
press key. Every time you press key, items
of set points will change one by one.
: Set value carry key
: Set value digit down key
: Set value Increment key.
: Set value Decrement key.
: Set value Initialization key.
(Set the value to zero.)
: Change terget of set value
2
Change S2 set value
When the key is pressed in Measurement
mode,
10
0
digit of S2 set value display on front
panel will flash, then S2 setting can be
changeable.
Every time the key is pressed the flashing
digit will change from 10
0
digit → 10
1
digit →
10
2
digit → 10
3
digit → 10
4
digit → 10
5
digit and
polarity (POL). Conversely, when returning the
flashing digit, press the key.
Change the set value by the key or key
after flashing the digit which is desired to change.
After fixing up the change, press the key. The
flashing digit on S2 set value display will light.
Moreover, when the instrument is left untouched
for about 20 seconds, with the status of
whichever digit on S2 set value display, the
automatically flashing digit will light.
In case of changing set value of S1, S3, and S4
successively., press key. Every time you press
key, target of set points will change one by
one.
: Set value carry key
: Set value digit down key
: Set value Increment key.
: Set value Decrement key.
: Set value Initialization key.
(Set the value to zero.)
: Change terget of set value
