Minebea CSD-814B User Manual

46

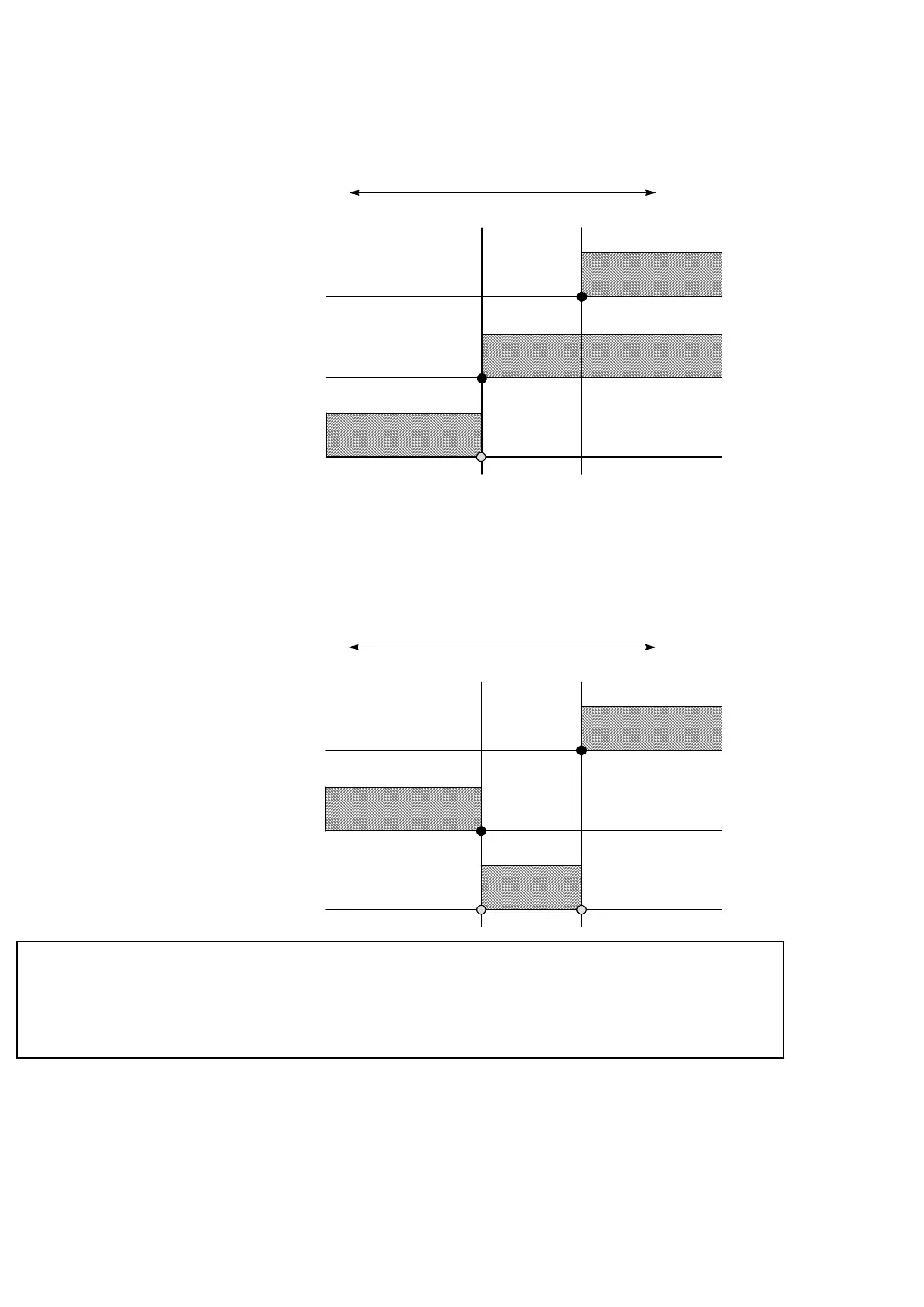

(1) When both of “Greater than or equal to” is selected for both of S1 and S2 with FUNC−12.
S1 judgement display, S1 contact output ON at (S1 set value) ≦ (Display value)
S2 judgement display, S2 contact output ON at (S2 set value) ≦ (Display value)
S0 judgement display, S0 contact output ON at (S1 set value) ＞ (Display value)
and (S2 set value) ＞ (Display value) at the same time
Display(large)
ON
OFF
S1 Set Value
ON
OFF
ON
OFF
Display(light)
S2 Set Value
S2 judgement display,
S2 contact output
S1 judgement display,
S1 contact output
S0 judgement display,
S0 contact output
(2) When “Less than or equal to” is selected for S1 and “Greater than or equal to” is selected
for S2.
S1 judgement display, S1 contact output ON at (S1 set value) ≧ (Display value)
S2 judgement display, S2 contact output ON at (S2 set value) ≦ (Display value)
S0 judgement display, S0 contact output ON at (S1 set value) ＜ (Display value)
＜ (S2 set value)
Display(light)
ON
OFF
ON
OFF
ON
OFF
Display(large)
S1 Set Value S2 Set Value
S2 judgement display,
S2 contact output
S1 judgement display,
S1 contact output
S0 judgement display,
S0 contact output
● Above figure shows the case of (S1 set value) ＜ (S2 set value).
In case of (S1 set value) ≧ (S2 set value), SO judgement display and
SO contact output will always be OFF.
