Minebea CSD-814B User Manual

47

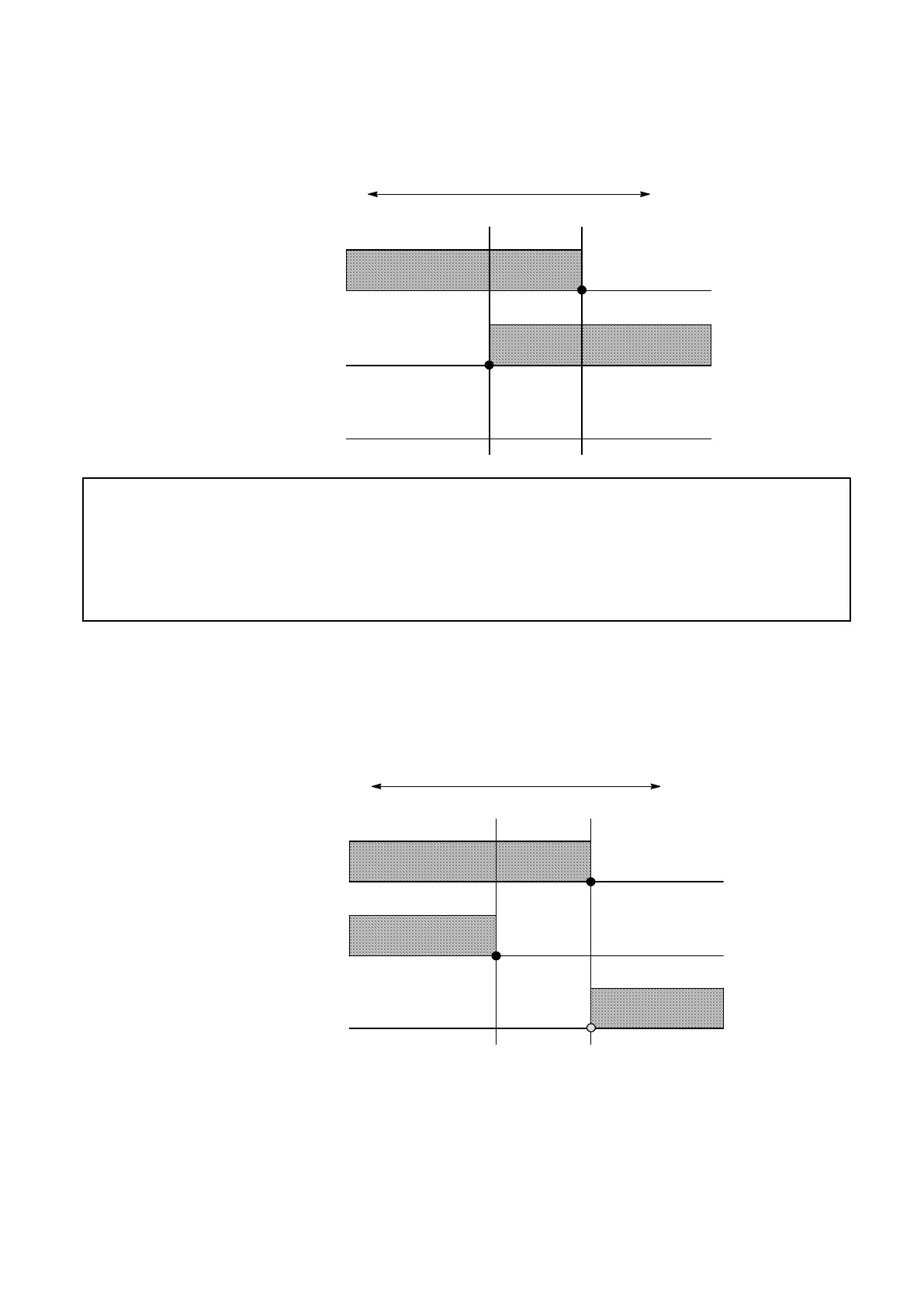

(3) When “Greater than or equal to” is selected for S1 and “Less than or equal to” is selected
for S2.
S1 judgement display, S1 contact output ON at (S1 set value) ≦ (Display value)
S2 judgement display, S2 contact output ON at (S2 set value) ≧ (Display value)
S0 judgement display, S0 contact output always OFF
S2 Set Value
ON
OFF
S1 Set Value
ON
OFF
ON
OFF
Display(light)
Display(heavy)
S2 judgement display,
S2 contact output
S1 judgement display,
S1 contact output
S0 judgement display,
S0 contact output
● Above figure shows the case of (S1 set value) ＜ (S2 set value).
In due course, when the relations are (S1 set value)≧ (S2 set value),
SO judgement display and SO contact output will become ON when
their relations are (S2 set value) ＜ (Display value) ＜ (S1 set value).
(4)
When “L.E.” (less than or Equal to) is selected for both of S1 and S2 with FUNC−12.
S1 judgement display, S1 contact output ON at (S1 set value) ≧ (Display value)
S2 judgement display, S2 contact output ON at (S2 set value) ≧ (Display value)
S0 judgement display, S0 contact output ON at (S1 set value) ＜ (Display value)
and (S2 set value) ＜ (Display value) at the same time
S2 Set Value
ON
OFF
S1 Set Value
ON
OFF
ON
OFF
Display(light)
Display(heavy)
S2 judgement display,
S2 contact output
S1 judgement display,
S1 contact output
S0 judgement display,
S0 contact output
