Procedures

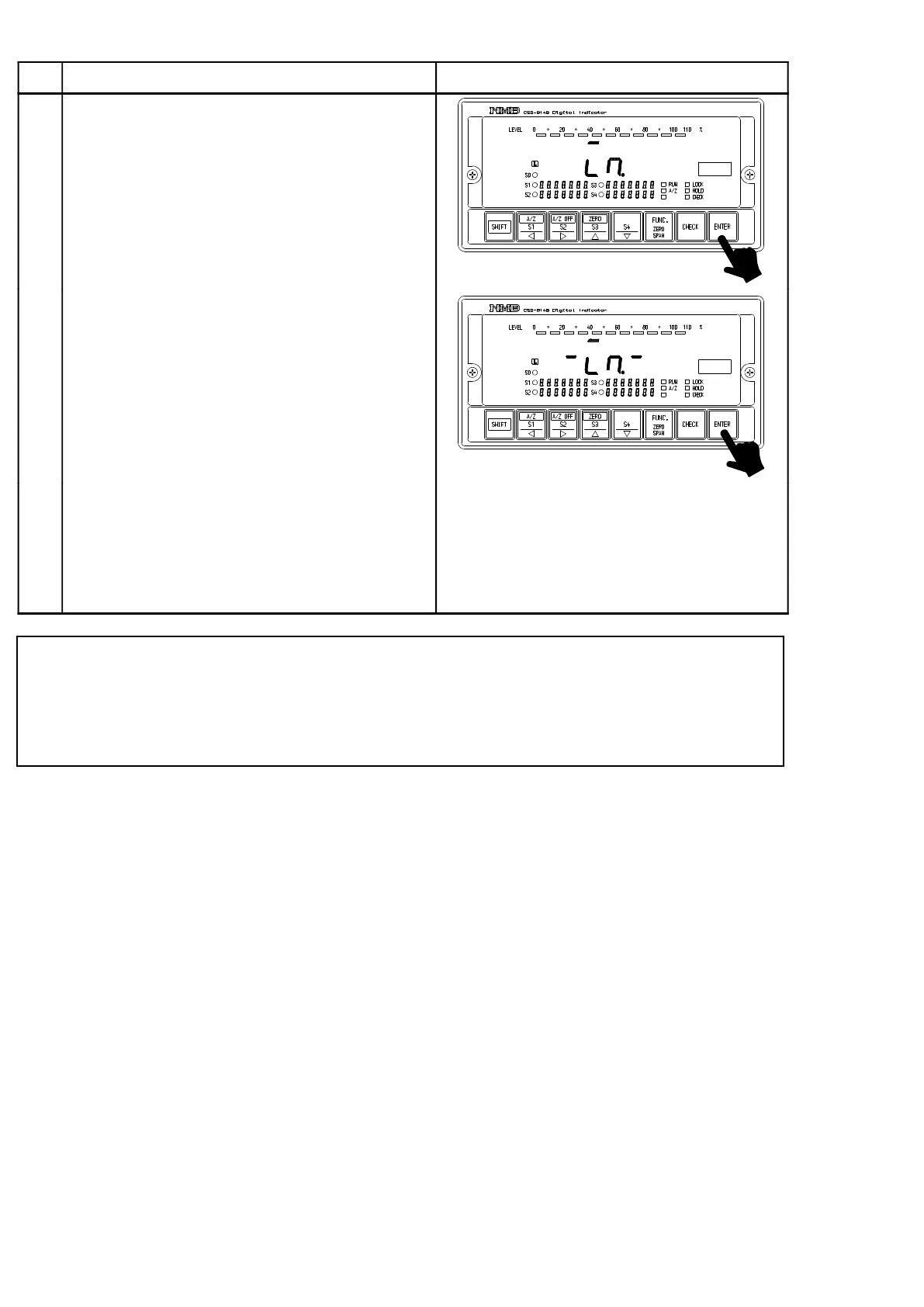

Confirmation on external control input signal.

Press the key.

The load display will show “IN”.

By pressing the key again, the load display

will change to “−IN−”.

At the same time, ON/OFF condition of external

control input signal can be monitored on the

front panel display.

Display

ZERO

Input

S4 : A/Z Input

S0 : A/Z OFF Input

HOLD : HOLD Input

LOCK : LOCK Input

CHECK : A−SEL Input

● Turn off the all external input signals when you will proceed to the

next step, or when you return to the measurement mode by pressing

the key.

1−1. Installation5
Power Supply6
Application Notes6
Record of Revision8
Table of Contents9
General14
- 1−1. Features14
Each Name and Function15
- 2−1. Front Panel15
- 2−2. Rear Panel17
Installation Procedures18
- 3−1. Installation Place18
- 3−2. Location Where Installation Is Not Allowed18
- 3−3. Installation19
Connecting Method20
- 4−1. Layout of Terminal20
- 4−2. Note on Connection21
- 4−3. Connection22
Calibration Procedure32
- 5−1. Preparations32
- 5−2. Calibration Procedures32
  - 5−2−2. Fine Adjustment Mode38
- 5−3. Selection of Calibration Procedures on each Condition41
  - 5−3−1. to Make Calibration on the Instrument42
  - 5−3−2. in Case of Executing Recalibration45
Operating Procedures46
- 6−1. Key46
  - Simultaneously in Measurement Mode46
  - For Comparator S1, S2, S3, and S446
- 6−2. Key46
  - 6−2−1. Single Key Is Pressed in Measurement Mode46
- 6−2−2. When Pressed with the Key Together in Measurement Mode46
- 6−2−3. When Operated in Fine Adjustment Mode for Zero and Span46
- 6−2−4. When Operation Is Made in Another Mode47
6−3. Key47
- 6−3−1. Single Key Is Pressed in Measurement Mode47
- 6−3−2. When Pressed with the Key Together in Measurement Mode47
- 6−3−3. When Operated in Fine Adjustment Mode for ZERO and SPAN47
- 6−3−4. Operation Is Made in Another Mode48
6−4. Key48
- 6−4−1. Single Key Is Pressed in Measurement Mode48
- 6−4−2. When Pressed with the Key Together in Measurement Mode48
- 6−4−3. When Operated in Fine Adjustment Mode for ZERO and SPAN48
- 6−4−4. When Operation Is Made in the Other Mode48
6−5. Key49
- 6−5−1. Press Key in the Measurement Mode49
- 6−5−2. When Operated in Fine Adjustment Mode for ZERO and SPAN49
- 6−5−3. When Operation Is Made in the Other Mode49
6−6. Key49
- 6−6−1. When Pressed in Measurement Mode49
- 6−6−2. When Operated in the Fine Adjustment Mode for ZERO and SPAN49
- 6−6−3. When Operation Is Made in the Other Mode49
6−7. Key50
- 6−7−1. When Pressed Singly in Measurement Mode50
- 6−7−2. When Pressed with the Key Together in Measurement Mode50
- 6−7−3. Pressed in the Fine Adjustment for ZERO and SPAN50
- 6−7−4. When Operation Is Made in Another Mode50
6−8. Key50
Function and Operation51
7−1. External Control Input Signal, Contact Output Signal51
- 7−1−1. External Control Input Signal51
- 7−1−2. Contact Output Signal52
- 7−1−3. Equivalent Circuit52
7−2. Comparator53
- 7−2−1. Change of Set Value53
- 7−2−2. Operation on Comparator S1, S2, S3 and S456
- 7−2−3. Comparative Target for Comparator S1, S2, S3 and S457
- 7−2−4. Operation of Comparator so58
- 7−2−5. Hysteresis on Comparator61
7−3. How to Use Filter63
- 7−3−1. Digital Filter63
7−4. Zero Tracking64
- 7−4−1. What Is Zero Tracking64
- 7−4−2. Setting Related with Zero Tracking64
- 7−4−3. Target of Zero Tracking65
- 7−4−4. Cancellation for Compensation by Zero Tracking65
- 7−10. Key Lock73
- 7−11. CHECK Value74
- 7−12. Short at the Input of Strain Gage Applied Transducers74
- 7−13. Recording Location for Setting Data and so on74
- 7−14. Check Mode75
  - 7−14−1. Operating Procedures for Check Mode76
- 7−15. Monitor Mode84
Function Mode86
- 8−1. Setting Method for Function Mode86
- 8−2. Function on Function Data89
- 8−3. Target for Comparator and Various Kinds of Optional Outputs98
Options99
- 9−1. Analog Output100
Troubleshooting145
- 10−1. Executing Trouble Shooting146
- 10−2. Error Display163
Specifications164
- 11−1. Specifications for Analog164
- 11−2. Specifications for Digital164
- 11−3. Function of Sheet Key on Front Panel165
- 11−4. External Control Function165
- 11−5. Comparator Function166
- 11−6. Output Signal for Contact166
- 11−7. Various Kinds of Functions166
- 11−8. General Specifications167
- 11−9. Specifications at the Time of Shipment167
- 11−10. Accessories167
- 11−11. Options168
- 11−11−10. Outline Dimensions171
Warranty172
- 12−1. Warranty172
- 12−2. Repair172
Appendix173
- 13−1. Replacement of Fuse173
- 13−2. Character's Pattern for Display176
- 13−3. Sample Program177
  - 13−3−1. Sample Program for RS−232C Stream Mode177
  - 13−3−2. Sample Program for Command Mode178
