A V-marker is a small, V-shaped marker that is designed for the robot to either
dock to so its front or its rear is facing the marker. The V-marker is the simplest
marker available for the robot. It consists of a V shape with an interior angle of
120° and sides of 150 mm.The robot must dock straight toward the inside of the
V.

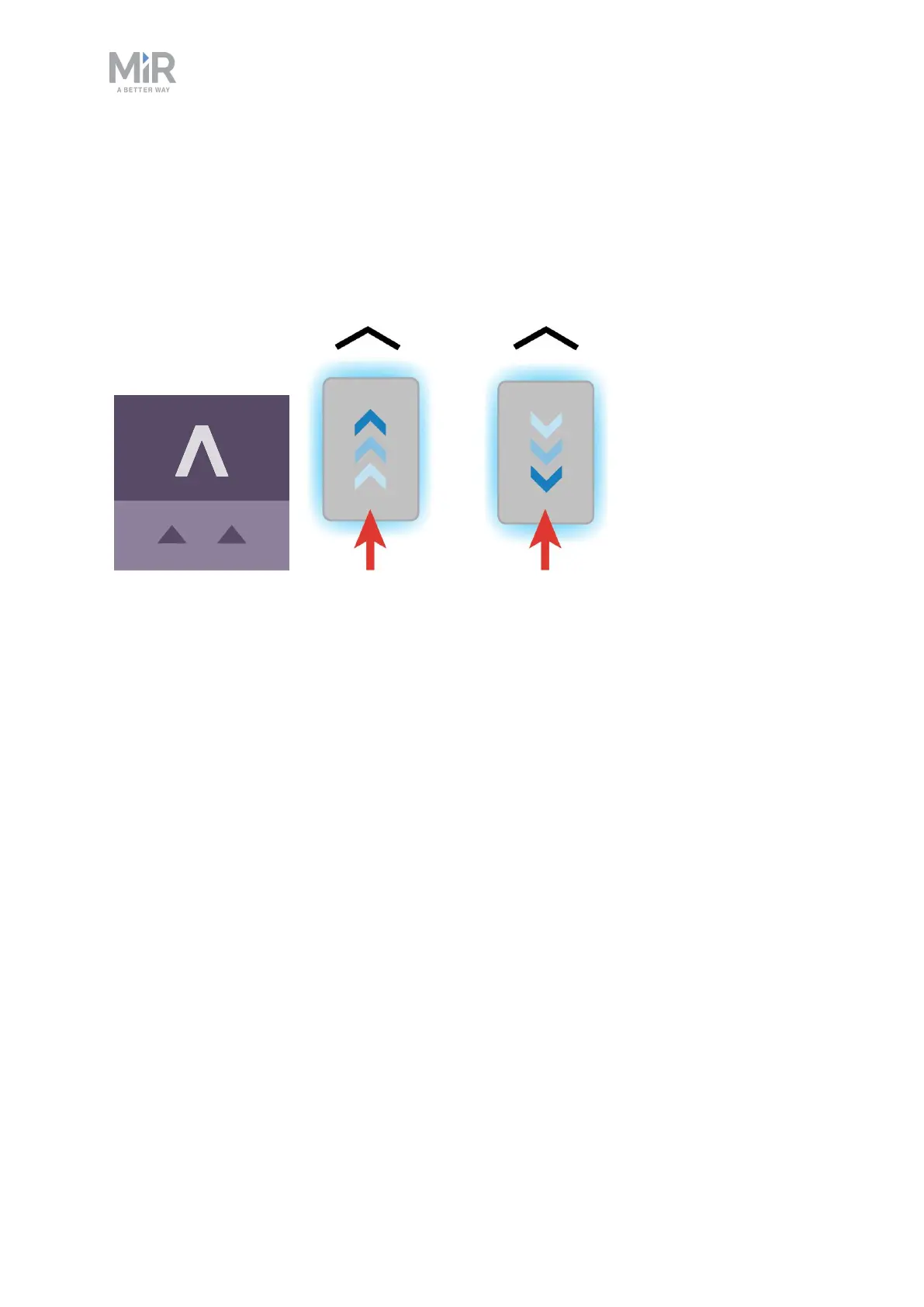

Figure 11.11. The icon used for V-markers in the interface and an illustration of how robots can
dock to the marker.
