9.2 C Controller Setting Utility
9.2.3 Operating Event history screen
9
UTILITY OPERATION
(3) Event detail information screen
Double-clicking an event as stated in (2) of this section displays the detail information
of the event on a single screen.

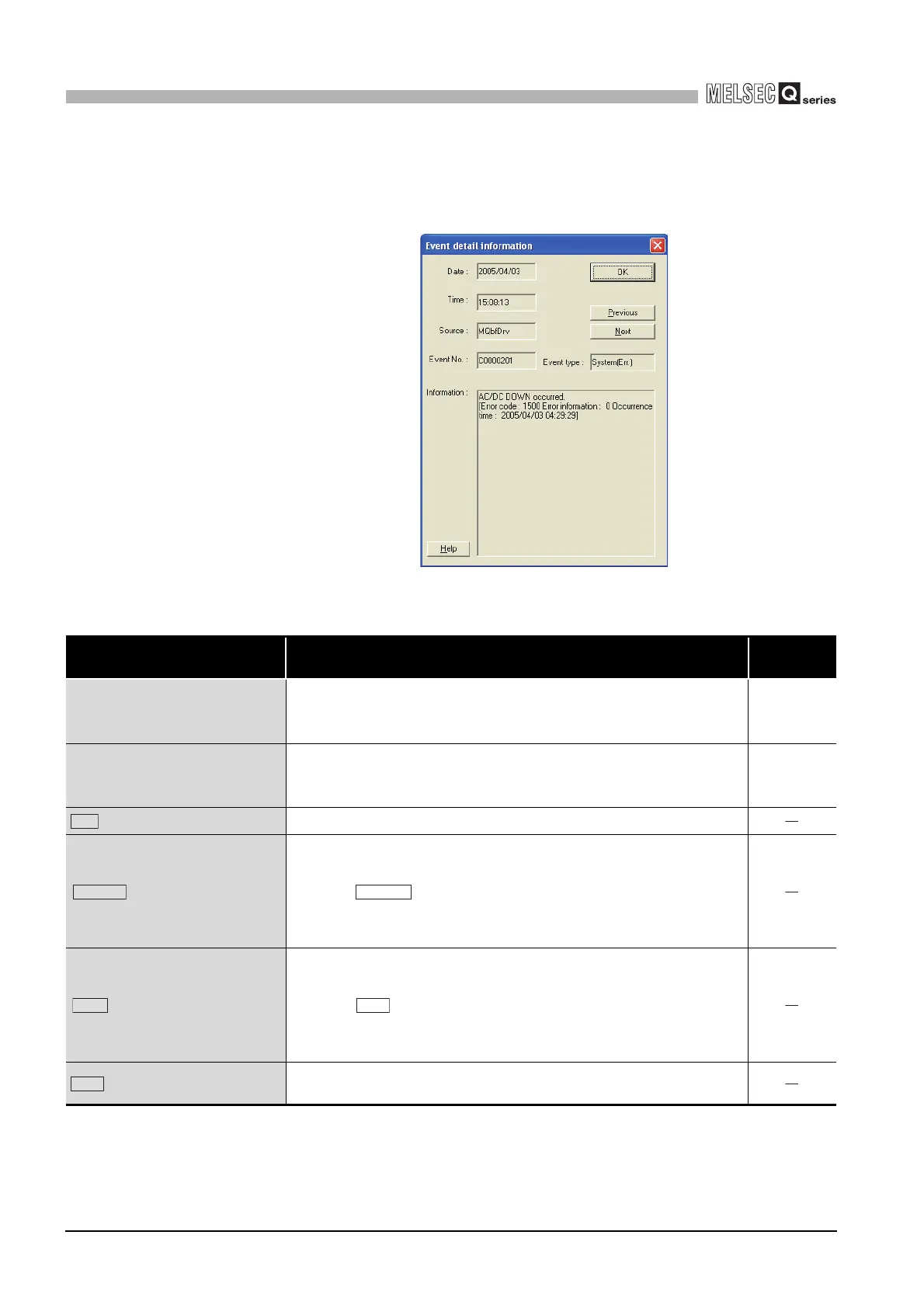

Figure 9.20 Event detail information screen
Table9.9 Explanation of Event detail information screen
Item Description
Reference
section
Date, Time, Source, Event No.,
Information
Displays the event detail information.
This section
(2),
18.4.2
Event type Displays the type of the event.
This section
(4),
18.4.2
button
Closes the "Event detail information" screen.
button
Displays the detailed information of the event immediately newer than the
displayed one.
When the button is clicked with the newest event detail
information displayed, a message appears and the oldest event detail
information is displayed.
button
Displays the detail information of the event immediately older than the
displayed one.
When the button is clicked with the oldest event detail information
displayed, a message appears and the newest event detail information is
displayed.
button
Starts the Help of the C Controller setting utility and displays the
information for the event.
OK
Previous Previous
Next Next
Help
