9.2 C Controller Setting Utility
9.2.8 Operating I/O assignment setting screen
9
UTILITY OPERATION
(2) Switch setting for I/O and intelligent function module screen
Set the I/O module and intelligent function module switches.
* 1 In a multiple CPU system configuration, the data set in this item must be identically set to each of
all CPUs.
Table9.25 Explanation of I/O assignment setting screen (Continued)
Item Description
Reference
section
Base
setting
Base model Set the model name of the base unit.
Power model Set the model name of the power supply module installed.
Extension cable Set the model name of the extension cable.
Slots
Specify the number of the slots of the base unit.
(Initial value: None, Setting range: 2, 3, 5, 8, 10, 12)
6.3
Base mode
Select the base mode from "Auto" and "Detail".
(Initial value: "Auto", Setting range: "Auto", "Detail")
6.3
,
button
Batch-sets the base unit to the specified number of slots. 6.3
button
Reads the multiple CPU system parameter area from the file created by
GX Developer.
9.2.12
button
Changes the settings to the initial values.

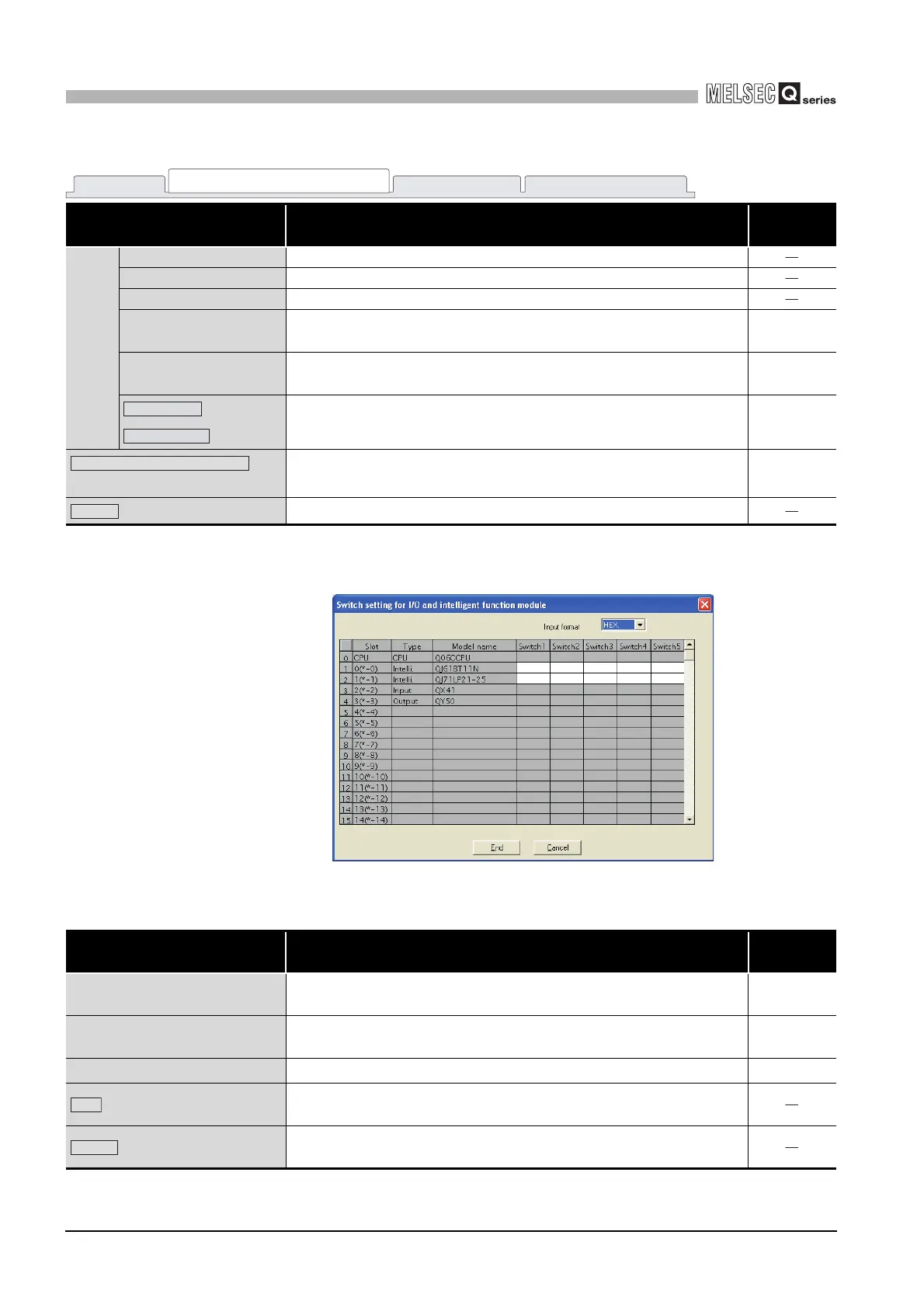

Figure 9.42 Switch setting for I/O and intelligent function module screen
Table9.26 Explanation of switch setting for I/O and intelligent function module screen
Item Description
Reference
section
Input format
Select the numerical input format from BIN., DEC. and HEX.
(Initial value: "HEX.", Setting range: "BIN.", "DEC.", "HEX.")
4.12
Slot, Type, Model name
Displays the "Slot", "Type", and "Model name" set on the "I/O assignment
setting" screen.
This section
(1)
Switch 1 to Switch 5
*1
Set the switches of the intelligent function module. 4.12
button
Saves the settings and closes the "Switch setting for I/O and intelligent
function module " screen.
button
Closes the "Switch setting for I/O and intelligent function module" screen
without saving the settings.
System setting
I/O assignment setting
Multiple CPU setting Communication diagnostics
8 slot default
12 slot default
Import multiple CPU parameter
Default
End
Cancel
