Mitsubishi MELSEC Q Series User Manual

9 - 138
9.5 Device Monitor Utility
9.5.3 Setting 16-point register monitor
9
UTILITY OPERATION
(1) Menu item to be selected
Select [Menu] [16-point register monitor] from the menu bar.
(Selectable only when batch monitor is active.)
After choosing [Setting] [Device setting] from the menu bar, set the device to be
monitored. ( Section 9.5.5)
(2) Display screen

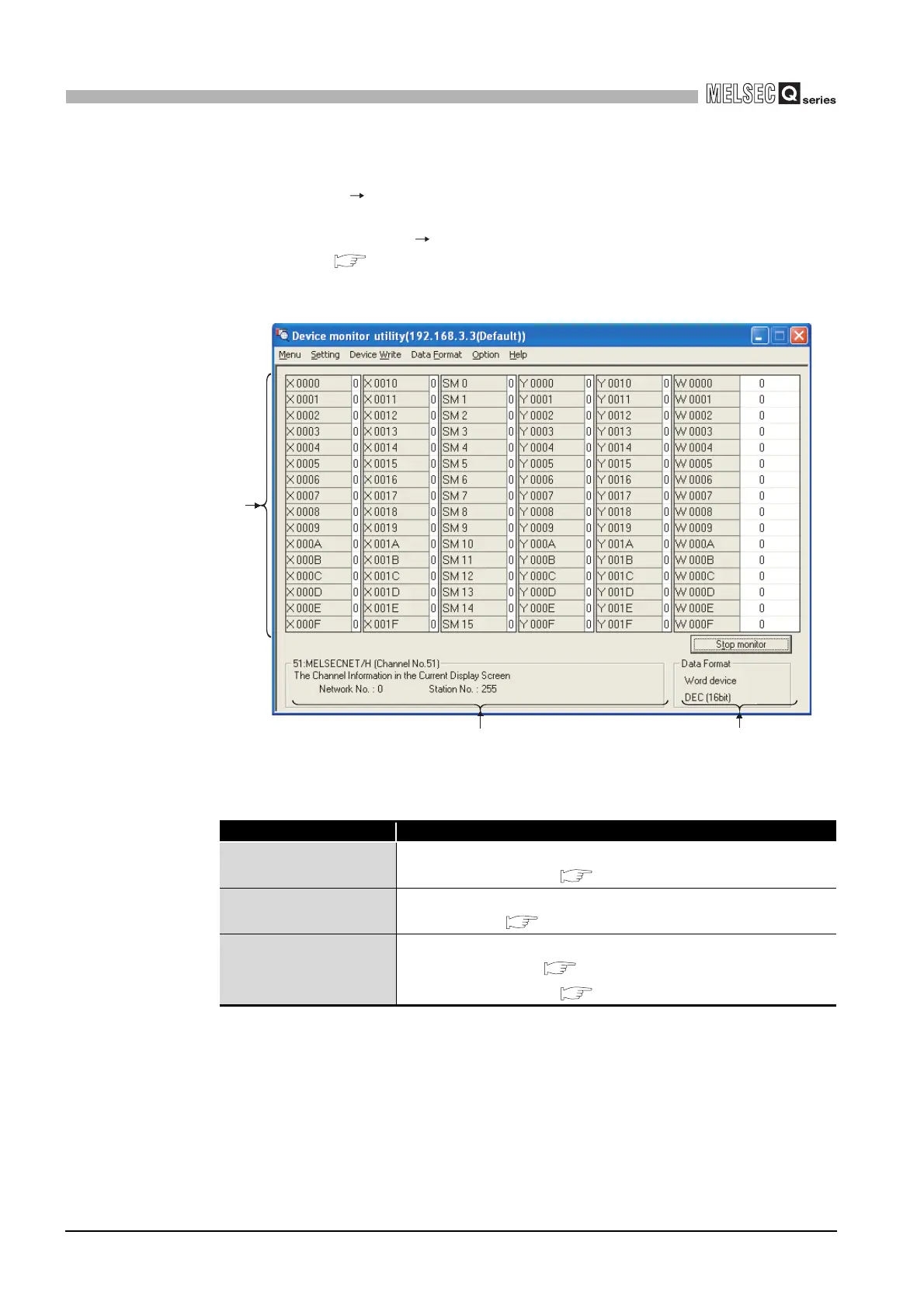

Figure 9.103 16-point register monitor
Table9.93 Explanation of 16-point register monitor screen
Item Description
1) Device information
Displays the current device status.
Changing display format ( Section 9.5.9)
2) Network status
Displays the status of the currently set network.
Network setting ( Section 9.5.4)
3) Data format
Displays the device type (word device, bit device) and display format.
Changing device type ( Section 9.5.5)
Changing display format ( Section 9.5.9)
1)
2)
3)
