MULTIPLE CPU SYSTEM CONFIGURATION
(2) When using the slim type main base unit (Q3 SB)
* 1 The programmable controller CPU does not accept the CompactFlash card.
* 2 As a power supply module, use the slim type power supply module.
Keep the current consumption within the rated output current of the power supply module.
The Q series power supply module and the redundant power supply module are not available for
the power supply module.
* 3 The slim type main base unit does not have an extension cable connector.
The extension base unit or GOT cannot be connected.
POINT
1. When a multiple CPU system is configured, the Basic model QCPU and High
Performance model QCPU are not used together.
2. When the slim type main base unit (Q3 SB) is used, the Motion CPU is not
applicable.
3. The slim type main base unit is applicable only when a multiple CPU system
is composed of the Basic model QCPU and the C Controller module.

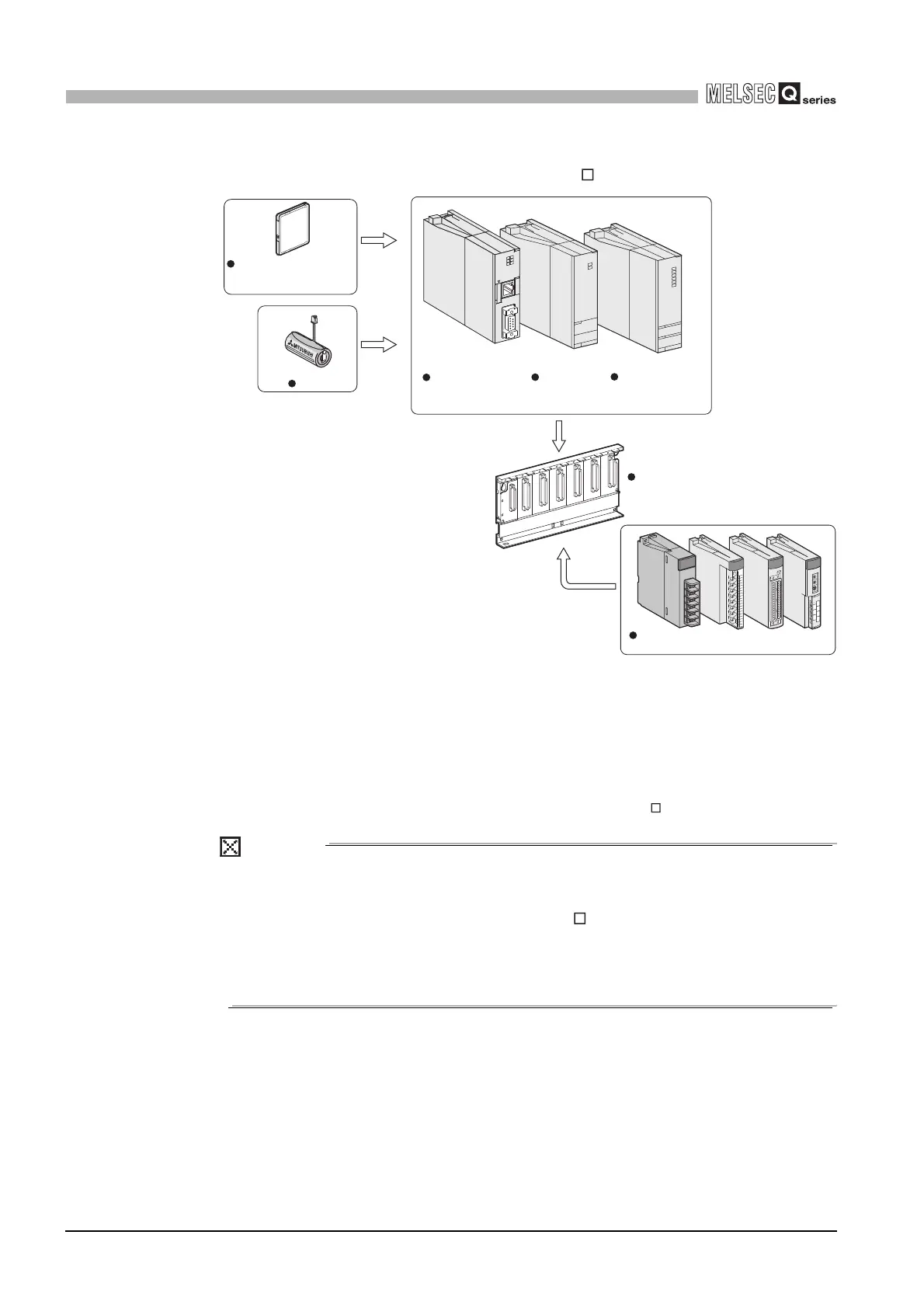

Figure 12.2 System configuration for using Q3 SB
Commercially available
CompactFlash card
(to be purchased separately)
Battery
High Performance
model QCPU
*1
Slim type main base unit *
2,
*
3
Slim type power supply/input/output/
intelligent function module
C Controller module
Basic model
QCPU
*1
