Mitsubishi MELSEC Q Series User Manual

2 - 8
2.1 System Configuration
2.1.4 Overview of system configuration
2
SYSTEM CONFIGURATION
(2) When the slim type main base unit (Q3 SB) is used
Precautions
• The slim type main base unit does not have an extension cable connector.
Connection of extension base units or GOT (bus connection) is not available.

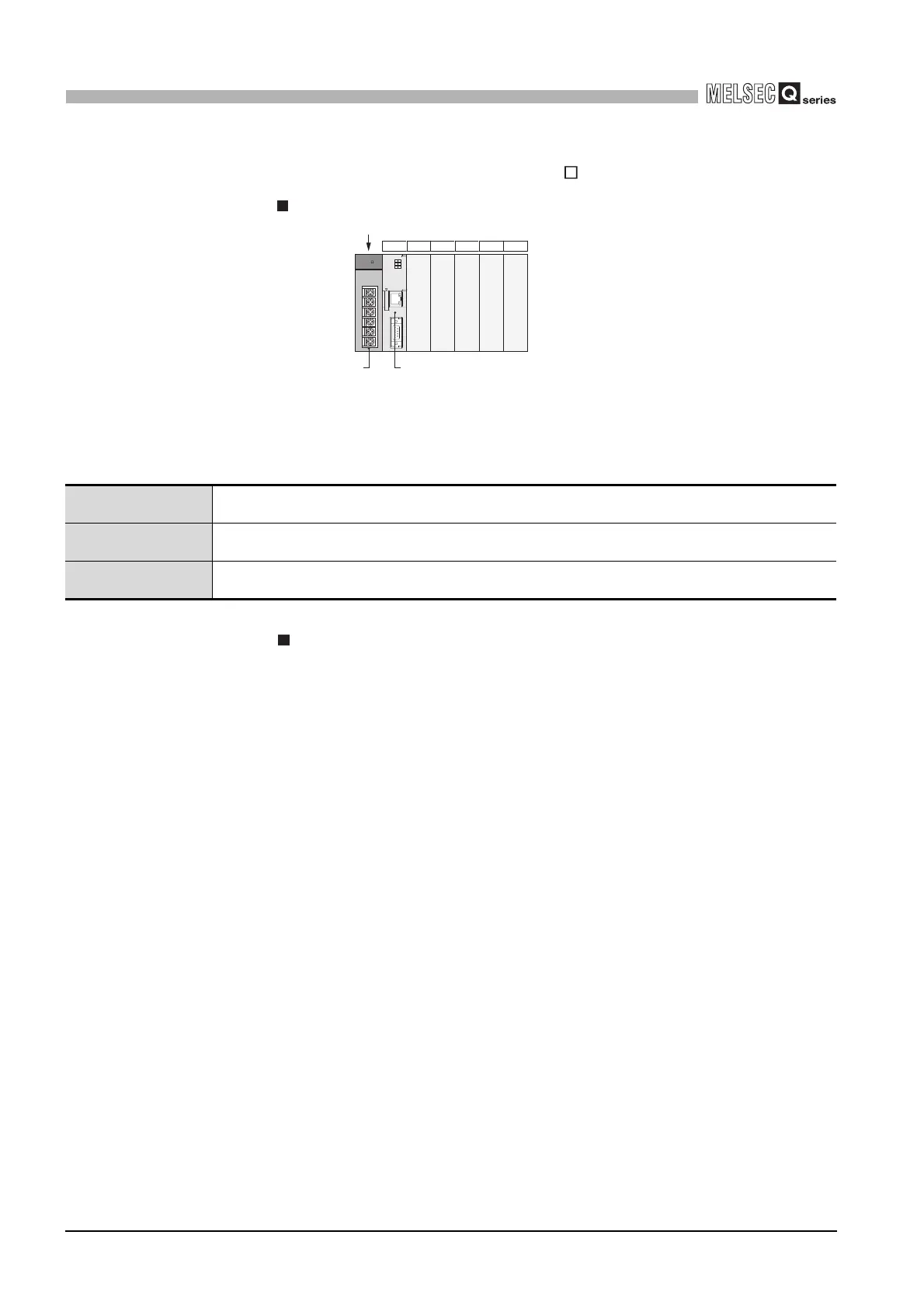

Figure 2.6 System configuration example when slim type main base unit is used
Table2.2 Restrictions on the system configuration, and applicable base units and power supply modules
Maximum number of
mounted I/O modules
5 modules
Available slim type main
base unit model
Q32SB, Q33SB, Q35SB
Slim type power supply
module
Q61SP
Slim type
power supply
module
C Controller module
Q35SB (5 slots occupied)
....
....
I/O number
Slot number
00 to 1F 20 to 3F 40 to 5F 60 to 7F 80 to 9F
CPU 0 1 2 3 4
Slim type main base unit When 32-point modules are loaded to slots.
...
