Reaction Effect
None The alarm is ignored
CAUTION: For use during commissioning or troubleshooting only. Not to be used in
normal working or operating conditions.
Emergency The drive sends an emergency message but does not stop or disable.
Disable Disables the drive and executes the stop procedure configured by the
Application/Fault Response parameters.
Stop Immediate disabling; the drive releases the motor control. If the axis was in motion, it
continues to move by inertia.
For each alarm, the most appropriate response must be programmed based on the characteristics of
the machine.
For some alarms, the Dx2020 GUI software prevents the selection of some reactions to ensure the
integrity of the drive (for example, you cannot enable emergency braking due to "overvoltage").
The following Fault listed are not configurable and the reaction is always 'STOP':
l
short_circuit_phase_U_low
l
short_circuit_phase_U_hi
l
short_circuit_phase_V_low
l
short_circuit_phase_V_hi
l
short_circuit_phase_W_low
l
short_circuit_phase_W_hi
l
restore_data_memory_corrupted
l
factory_data_memory_corrupted
l
calibration_data_memory_corrupted
Contact Applications Engineering for further assistance.

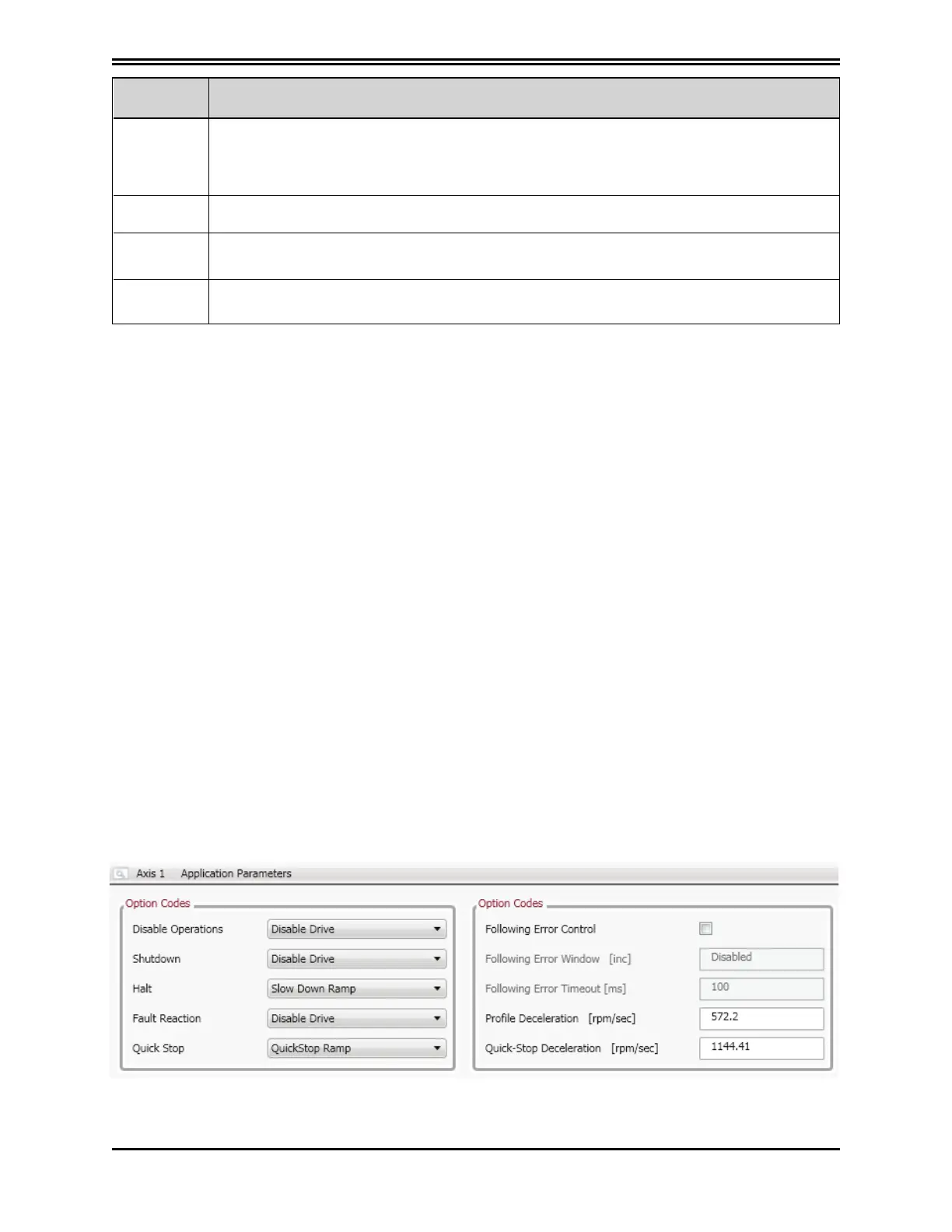

6.4.7 Application Parameters Configuration
From this menu, you can configure the reaction of the drive to particular events.
