Moog DM2020 Series User Manual

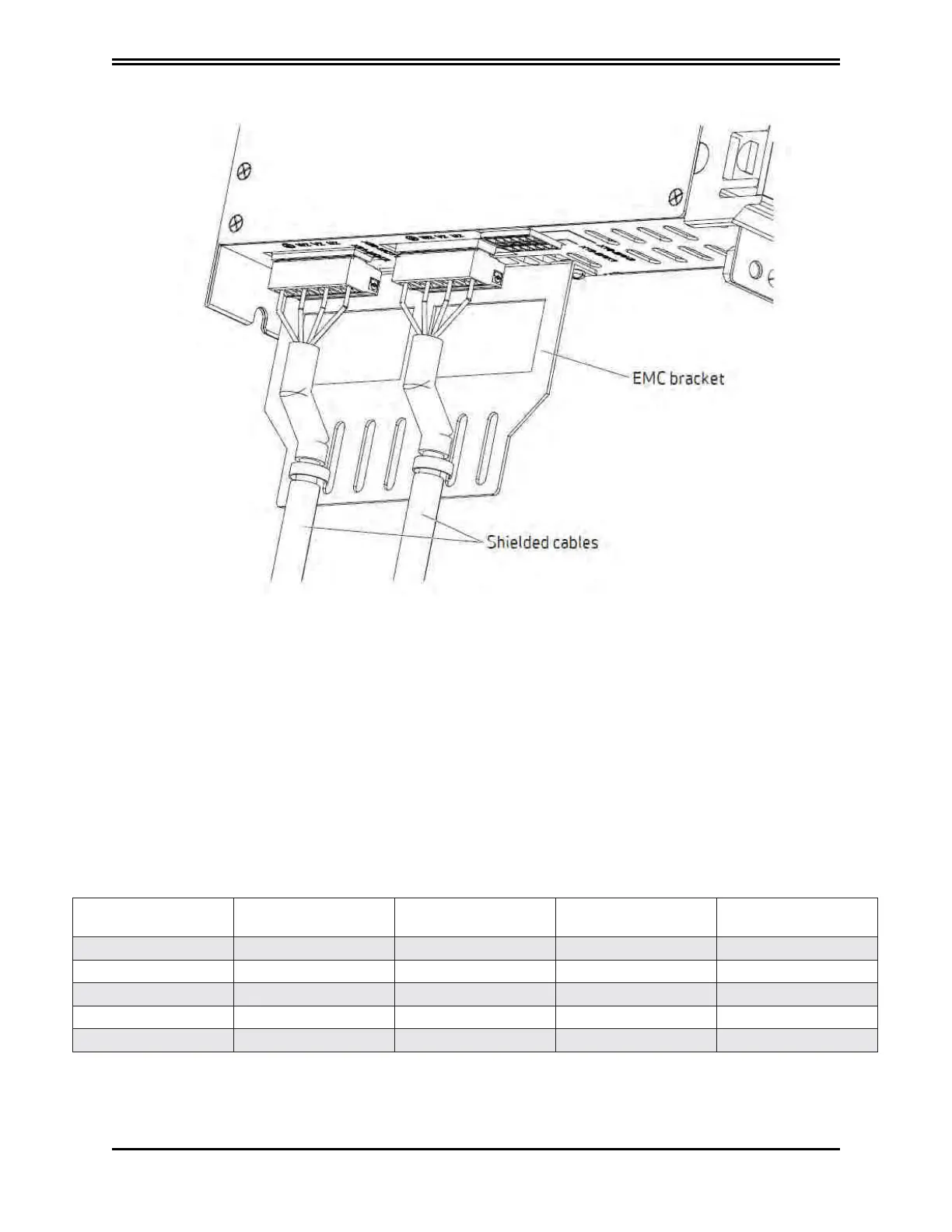

Connection Cables EMC Bracket
5.3.3 Thermal Rating of the Electrical Panel
For a thermal rating of the electrical panel, refer to the following table. The first column indicates the
value of the maximum power that can be dissipated from the radiator, The second column indicates
the value of the power dissipated by the DM2020 system under nominal operating conditions. The
value of maximum power that can be dissipated from the radiator is useful to estimate the power
dissipated on the internal braking resistors.
In the application, if the dissipated power (W) values in the loop are higher than the values indicated
in the following table, contact Applications Engineering.
5.3.3.1 Drive Axis Power Dissipation
PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
5.3.3 Thermal Rating of the Electrical Panel
% Rated
current
Type L50 Type L150 Type L100 Type L200
0 25 38 50 70
25 113 213 313 500
50 200 388 575 750
75 288 563 838 1100
100 375 738 1100 1750
69
