6.8 Oscilloscope Function and Log File (.UCX)
It is possible record and display numerous drive internal variables from the Dx2020 GUI by selecting
"Digital Oscilloscope".
6.8.1
L
og
C
onfi
g
ur
a
ti
on

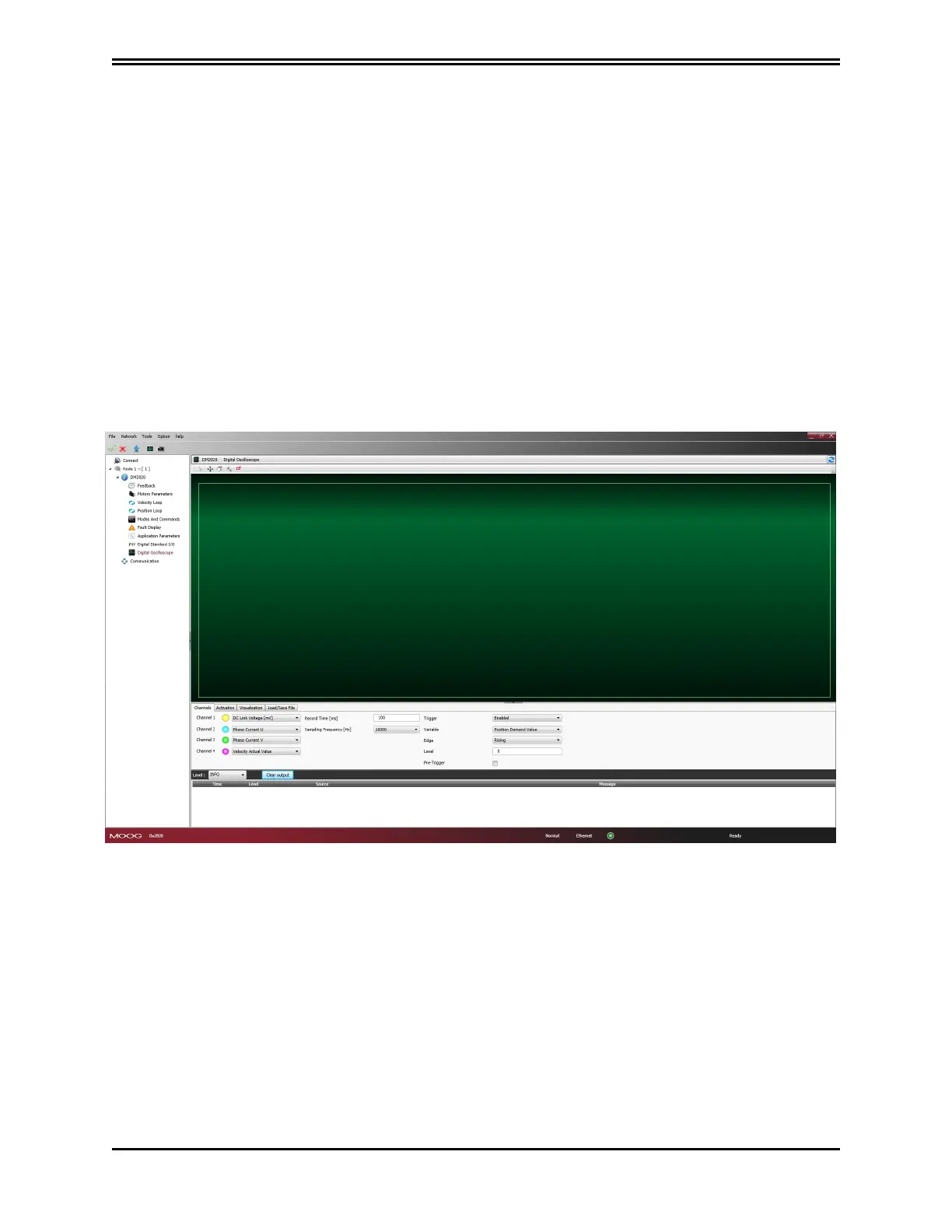

Select the Channels tab for each channel in the drop down menu to choose the variable to display. The
number of accessible variables depends on the mode of access (Advanced or Normal).
To change the access mode, from the toolbar, select Options > Modes and proceed with the choice.
You can display up to four tracks.
Set the recording time in msec (Record Time) and Sampling Frequency in Hz.
Triggering is possible. To display (and record) on an event, choose Enabled in the Trigger field (choose
Continuous for repeated display of the same event automatically).
The Pre Trigger setting lets you view 512 bytes before the signal is triggered.
PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
6.8 Oscilloscope Function and Log File (.UCX)
6.8.2 Start Logging
Select the Activation tab.
From Select Output, choose from the following options:
