Moog DM2020 Series User Manual

4.

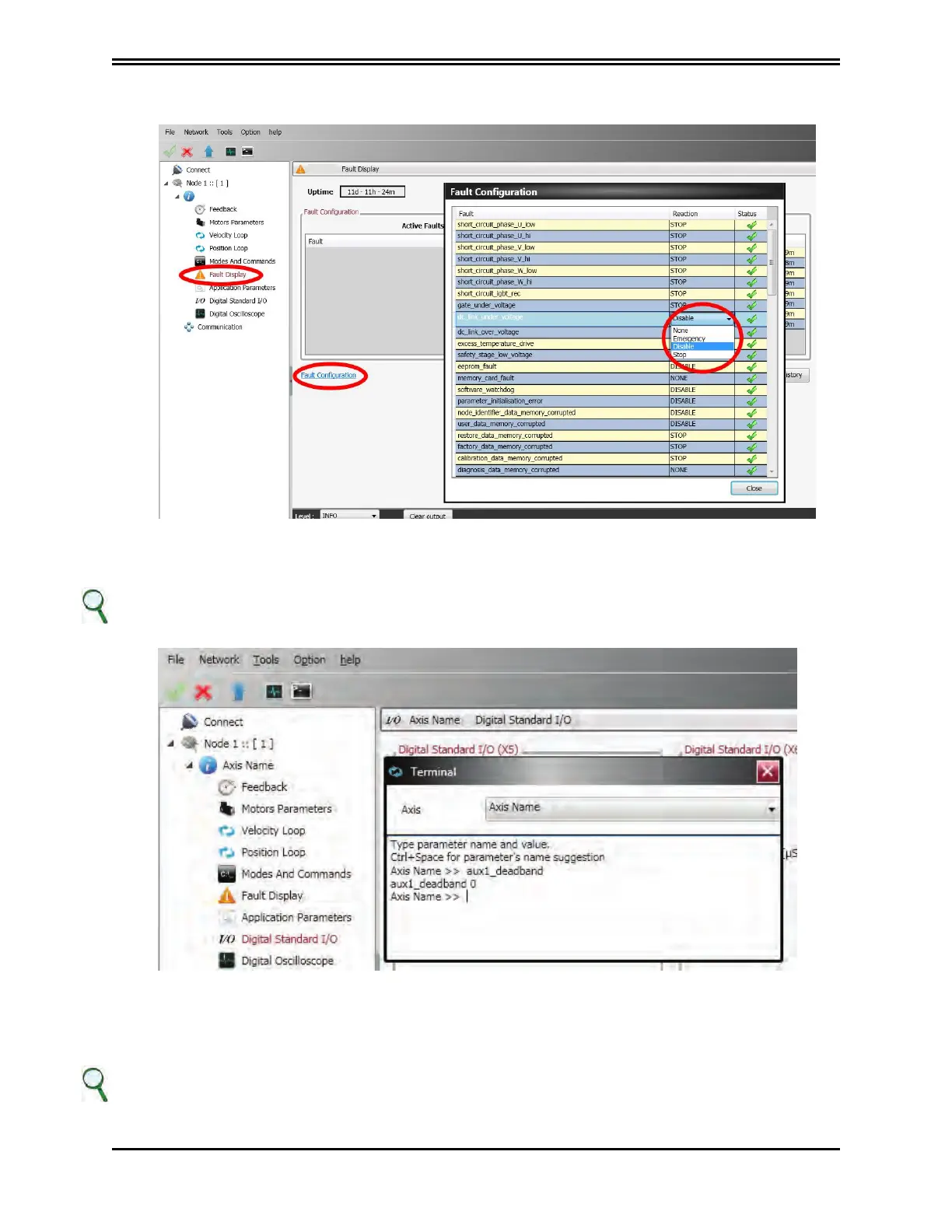

Finally, set the fault interface X3 - Missing Transducer Configuration to "None" as shown in the
following figure.
6.4.4 I/O Configuration
PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
6.4.4 I/O Configuration
I
NFORMATION
A “deadband” can be applied to all analogue inputs; this is a band of signal
below which the
two inputs will be
ignored. This is set on the terminal
.
The unit of measurement is in internal units from 0 to 2
15
, corresponding to 11 volts, meaning that 100 units
correspond to a deadband of 33.5 millivolts.
INFORMATION
The digital outputs are active if supplied with a +24 power supply on X6-X16 connector on pin 7 and earth on pin 8.
95
