If an error occurs during installation, report the error message to Applications Engineering. Once the
program is installed, the Dx2020 GUI icon will be displayed on the desktop.
6.2.4 GUI Drive Connection

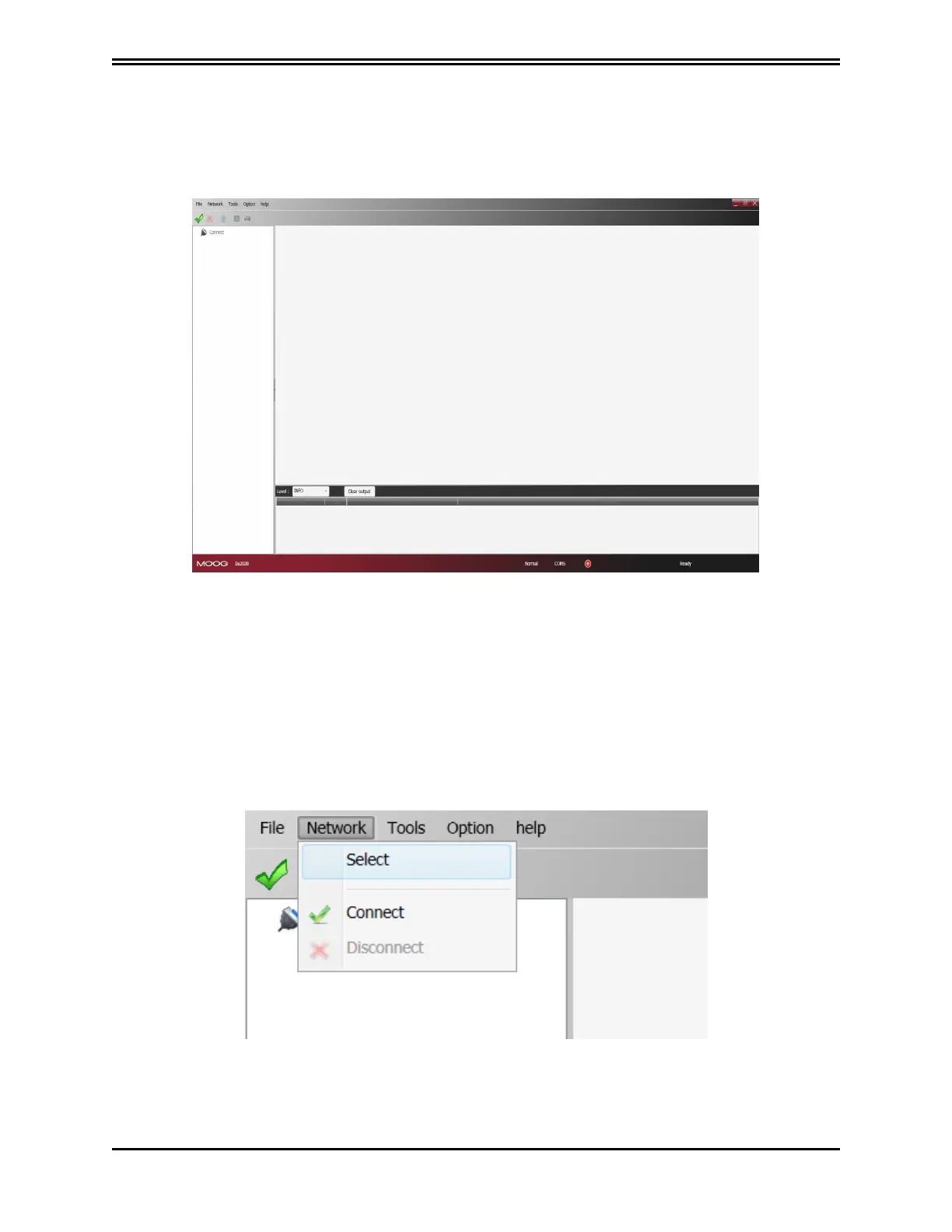

Run the executable Dx2020 GUI with the DM2020 system powered up.
The GUI can connect to the drive through:
l
Serial RS-422/RS-232 or USB (connector X3); the GUI automatically detects whether it is used
on RS-422 or RS-232.
l
EtherCAT* (X9-IN)
l
CAN bus* (connector X7-IN)
*The EtherCAT and CAN bus interfaces are optional.
For details on connectors see the Connectors section.
From the Network menu, click Select to choose the communication protocol.
For more details, see Accessing the Dx2020 GUI help on-line .
