6.4.3.1 Sensorless
The DM2020 provides a sensorless mode, i.e., without a speed transducer.
To enable it,
1.
Select Feedback from the Navigation Area.
2.

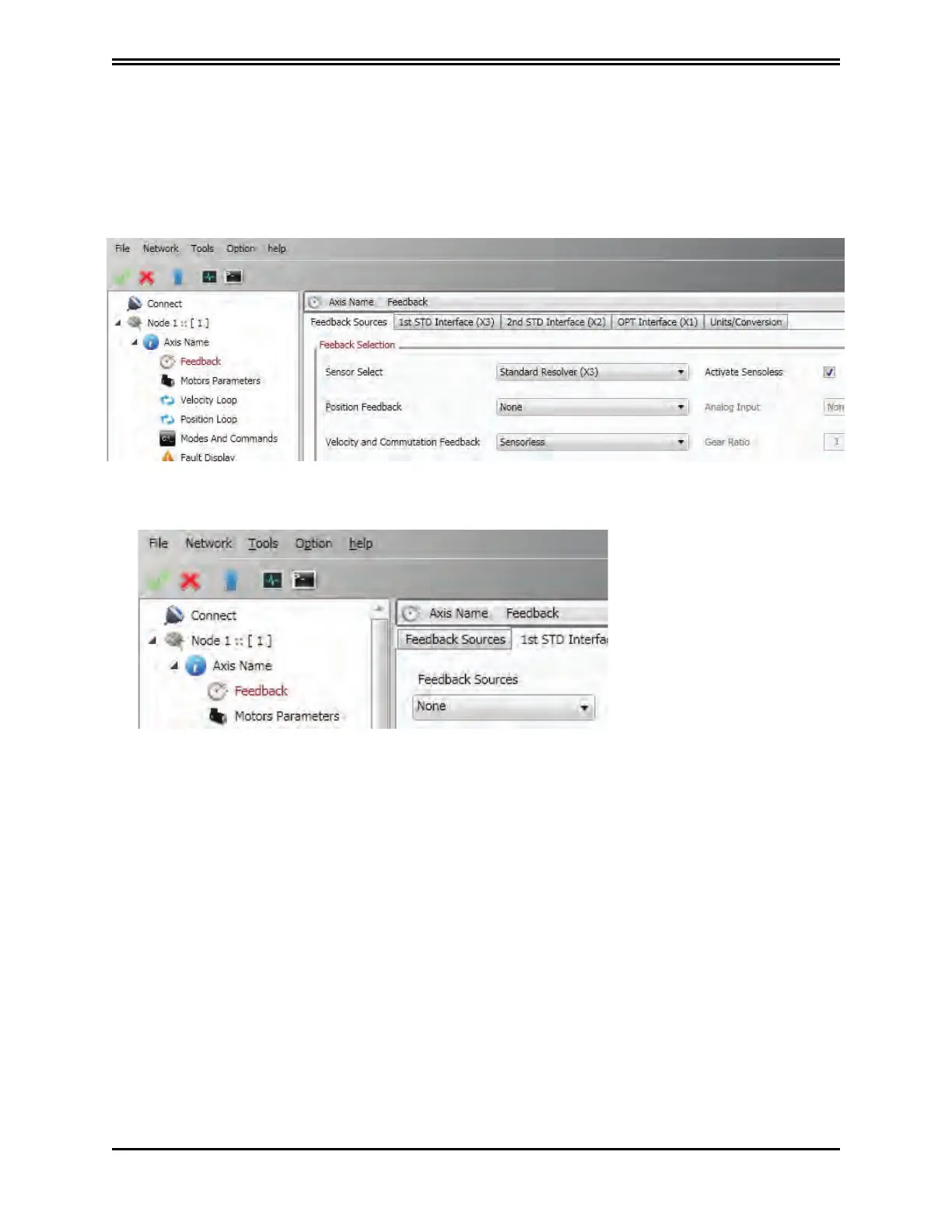

In Tab Sources feedback, set the fields as indicated in the following figure.
3.
In Tab 1 Interface STD (X3), set the fields as indicated in the following figure.
PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
6.4.3.1 Sensorless
94
