Moog Casella DM2020 Installation and Startup Guide
3.2.2 Mechanical Data
3.2.2 Module Side Plate Types
Model code
Hardware Revision
STO Function
Serial Number
Nominal data
(A)
(B)

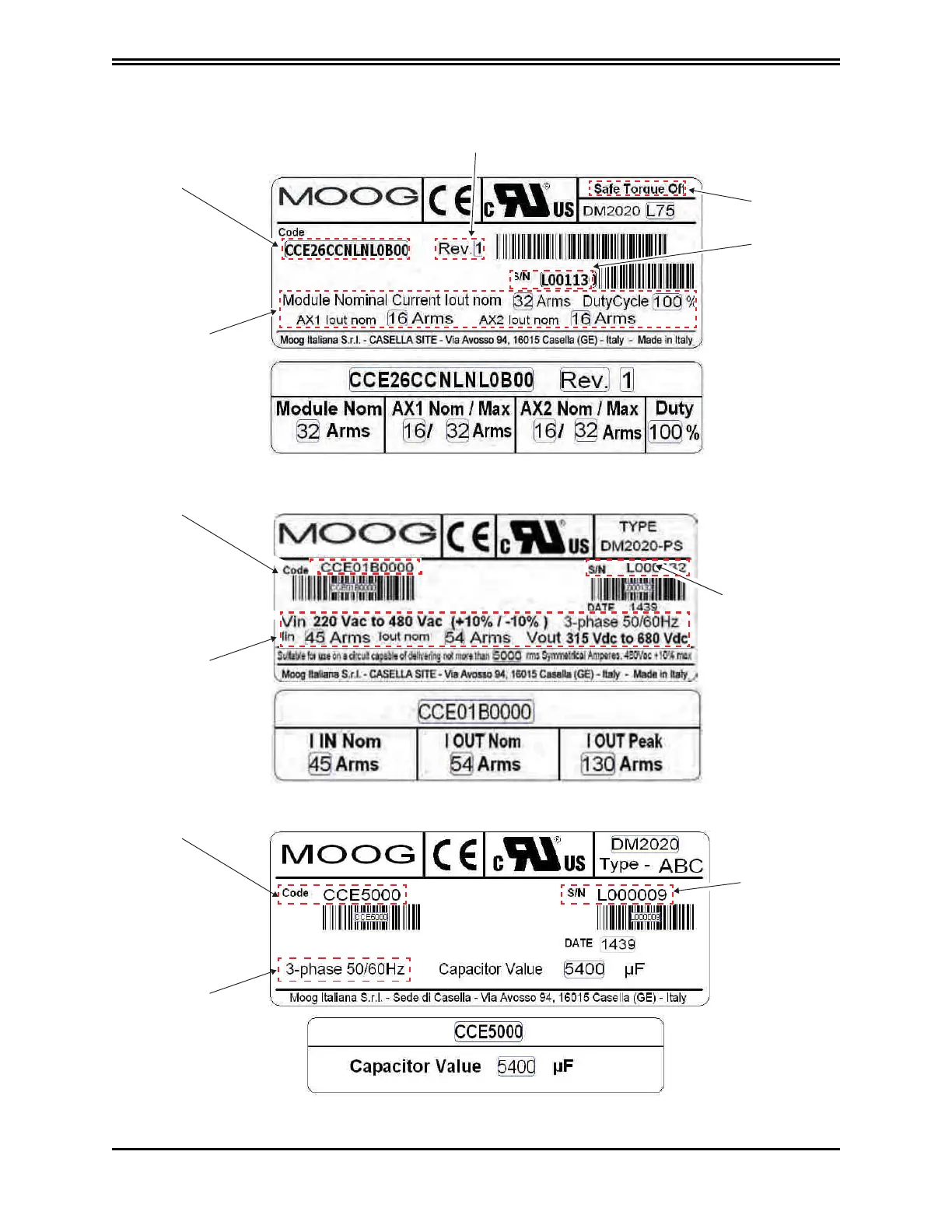

Example of axis module side plate (A) and front plate (B)
Serial Number
(A)
(B)
Example of power supply side plate (A) and front plate (B)
(A)
(B)
Serial Number
Example of capacitor module side plate (A) and front plate (B)
Model code
Nominal data
Model code
Nominal data
