5.3.6 Drive Wiring
The steps for wiring the DM2020 drive are as follows:
5.3.6.1 Grounding
Mount the DM2020 drive to the control cabinet's metal structure, ensuring that the contact surface is
adequate and that the connection is at low resistance and inductance. Do not mount the DM2020
drive on painted or insulated surfaces.
5.3.6.2 Power Cord and Braking resistor Connection
For the power cord selection information, see the Cables section.
Connector
X2
PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
5.3.6 Drive Wiring

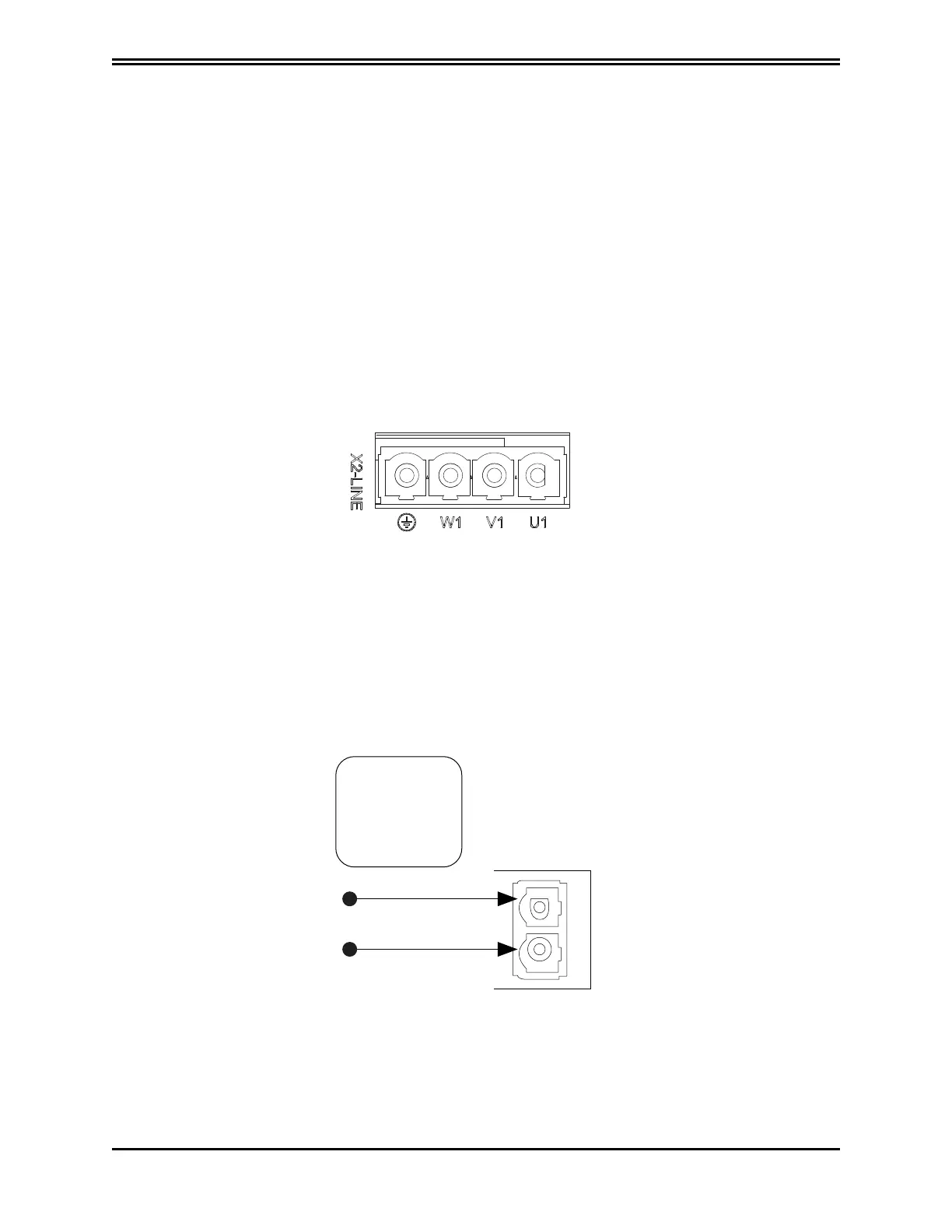

Braking Resistor Connection
The following figures show the braking resistor connection points. Use a shielded cable for the
connection, with shielding closed on the drive side.
X1 - R.R.
Connect
the brake resistor
on RR1
and RR2
RR2 RR1
To Next Page
