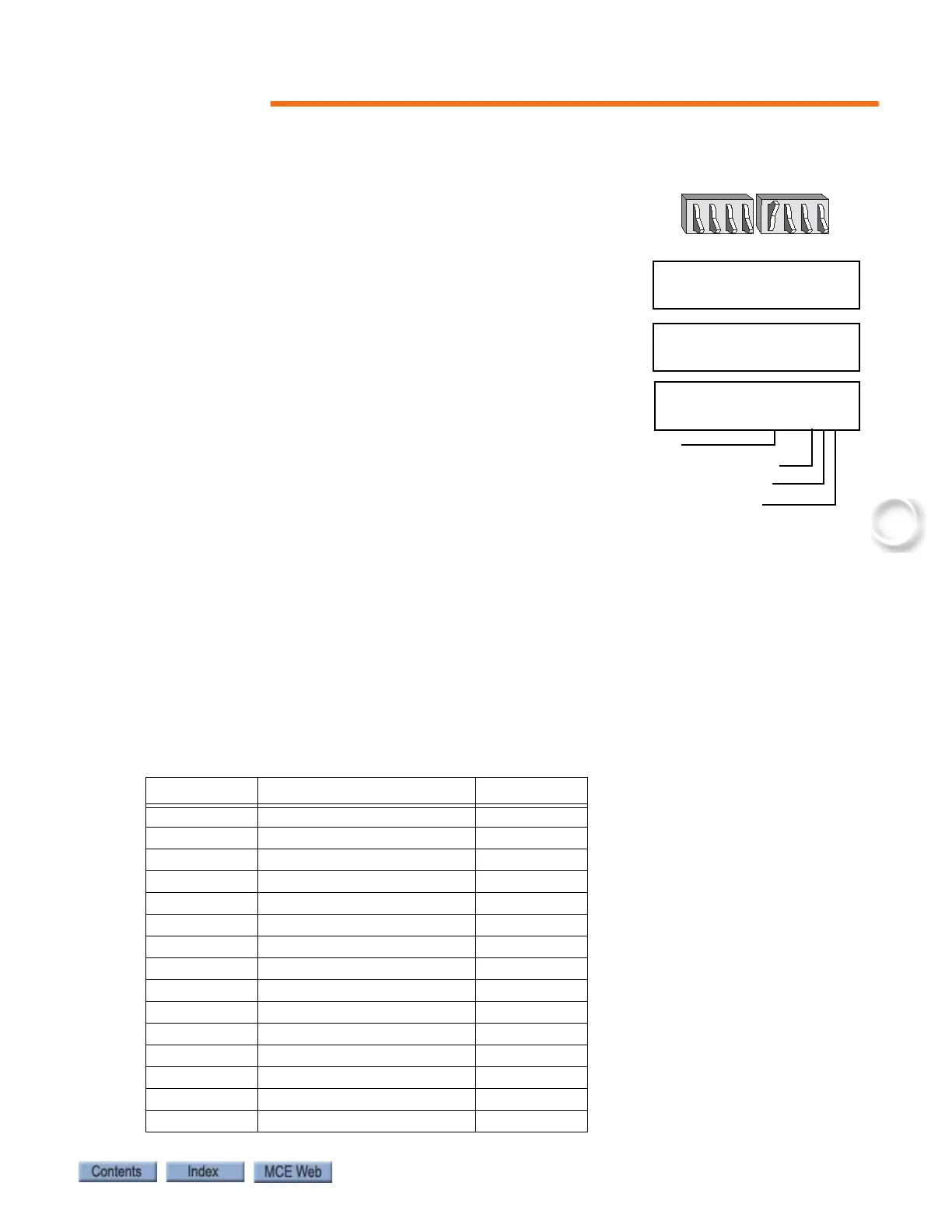

F4: Messages and Floor Labels
5-67
F4: Messages and Floor Labels
The Messages and Floor Labels menu is used to program the CE
fixture displays. To access, move the F4 switch to the up position.
This display changes to:
Modify Floor Labels Press the S push button. The dis-
play changes to:
Press the S push button again. The display changes to:
• Press + or - push buttons to change landing
• Press S push button to move to first label field
• Press + or - push buttons to change field value
• Press S push button to move to next field
• Repeat until entries completed
• Press N push button to exit.
• Note: Spaces for three characters (three character display) are provided. If the display
has only two characters, use the two right most spaces (ones and tens place) and leave
the left most space (hundreds place) blank.
Modify Message Labels There are ten standard messages that will appear based on
the operating status of the elevator. For example, if the car doors are in nudging mode, the “03”
message will be displayed. The factory default for the 03 message is _ND but you may choose to
set it to any three spaces or characters, for example, NUD. Factory defaults are listed below. The
10 “custom” labels are used by MCE when a customer requests a non-standard feature.
Table 5.10 Default Message Labels
Message # Operation Label
01 Fire Main _FM
02 Fire Alternate _FA
03 Nudging _ND
04 Independent Service _IN
05 Overload _OL
06 Emergency Power _EP
07 Inspection Service _IS
08 Seismic Sensor _SS
09 Door Hold _DH
10 Hospital Phase I _H1
11 Hospital Phase II _H2
12 Out of Service _OS
13 Stop Switch Active _SA
14 Heavy Load _HL
15-24 Custom Messages 01 - 10 _ _ _
FUNCTION SWITCHES
F8 F7 F6 F5 F4 F3 F2 F1
Messages and Floor Labels
* MESSAGES AND *
* FLOOR LABELS *
- MODIFY FLOOR -
- LABELS -
FLOOR LABEL FOR
LANDING 01: 001
Landing
Floor label 100’s place
Floor label 10’s place
Floor label 1’s place
To Next Page
