7-14 Manual # 42-02-1P21

LS-QUTE Landing System Assembly Drawings

Note

If a sensor or the HC-IPLS board is replaced, make sure the orientation of the HC-IPLS

board is correct. Use the chassis ground and the LEDs shown in the figure below for an orienta-

tion reference.

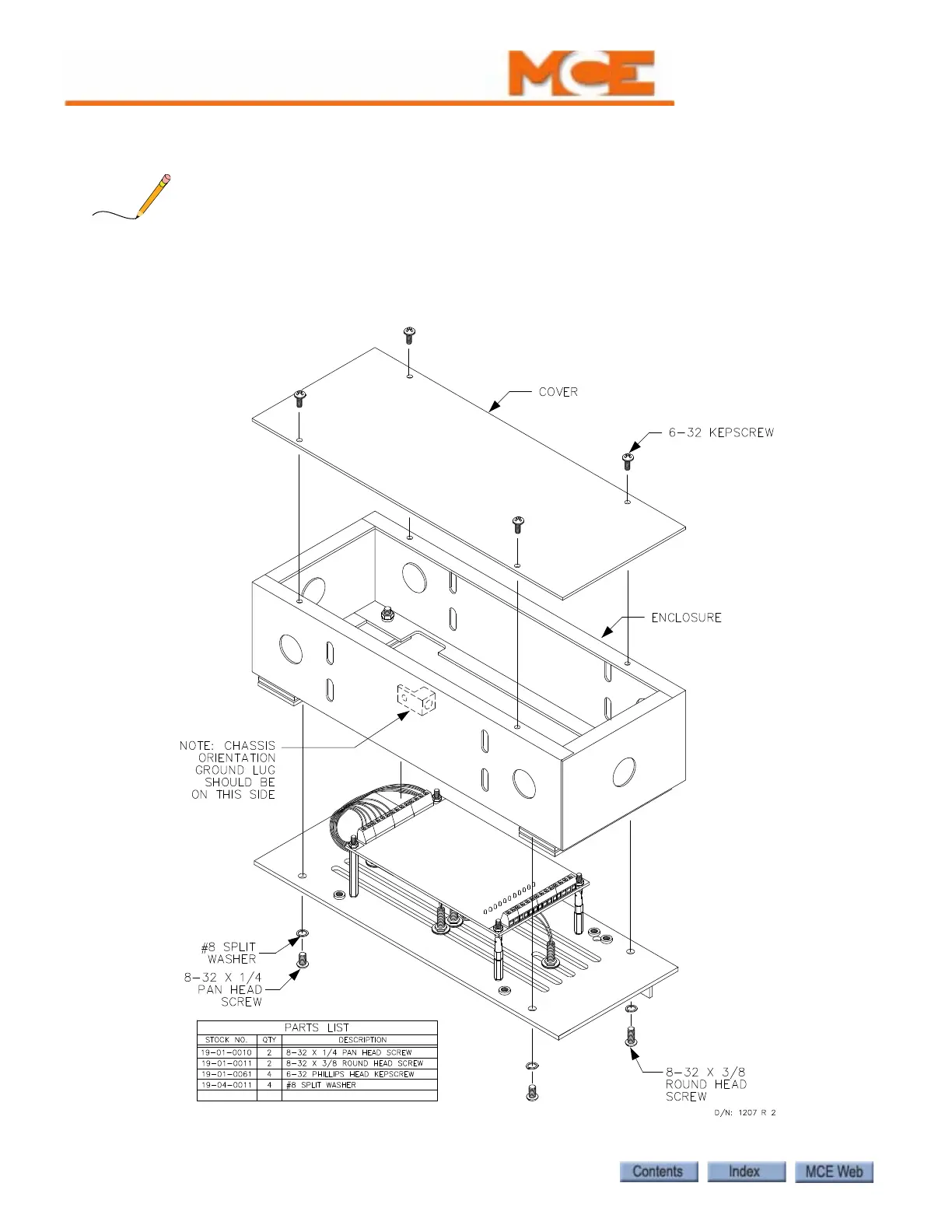

Figure 7.1 LS-QUTE Enclosure Assembly
