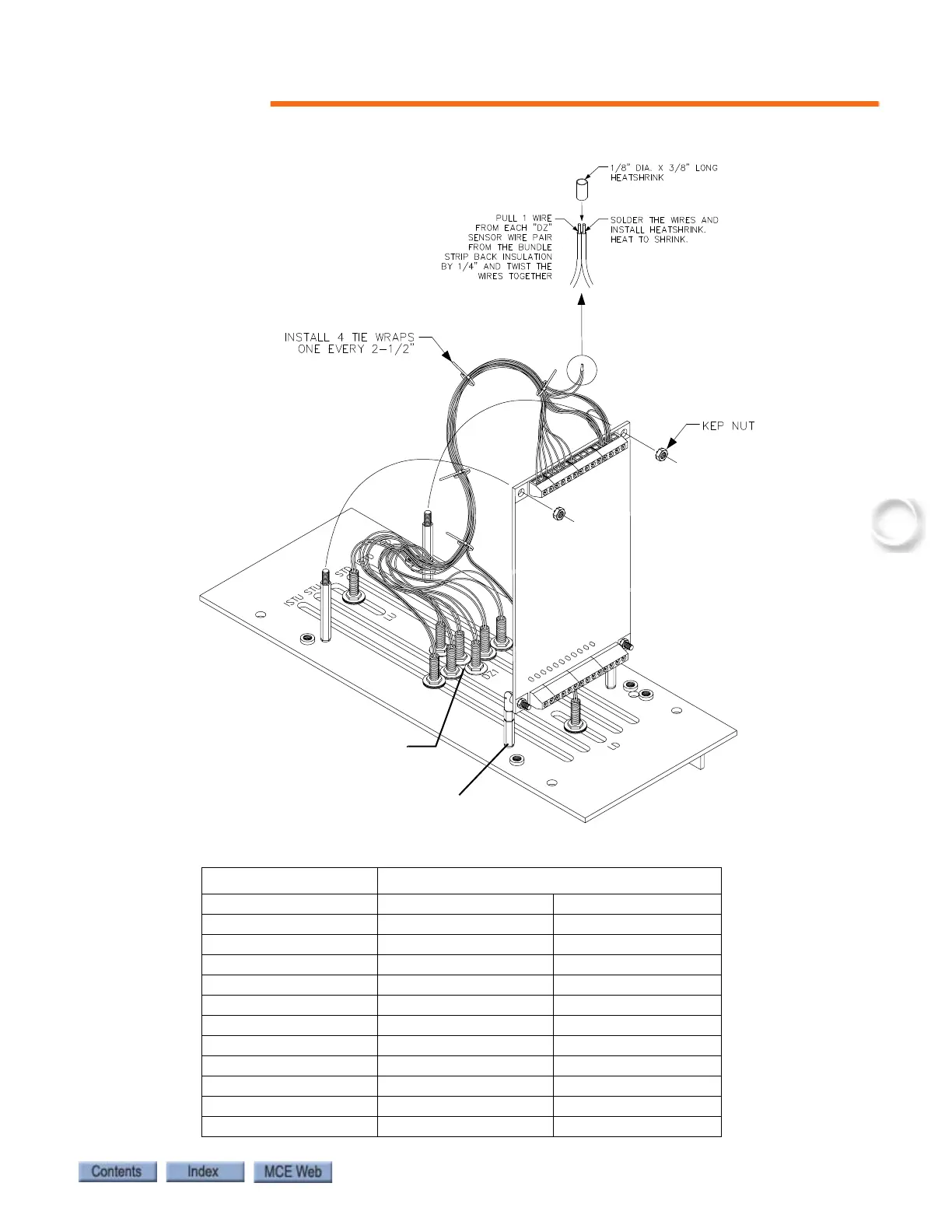

LS-QUTE Landing System Assembly Drawings
7-15
7
Figure 7.2 LS-QUTE Wiring Diagram
SENSOR HC-IPLS BOARD TERMINALS
DZ1 DZ2 SENSOR S18
DZX SDZX S18
DZ2 DZ1 SENSOR S27
DZF SDZF S18
DZR SDZR S18
LD SLD S18
LU SLU S18
STD STD S2
STU STU S2
ISTD ISTD S2
ISTU ISTU S2
One 2 inch jumper S18 S2
DZX is between
DZ1 and DZ2
D/N: 1206 R3
Hinged standoffs
