Landing System
1-9
Landing System
The landing system is designed to be mounted on the car top. Landing systems used with the
Motion 2000 controller include the LS-QUTE, LS-STAN, and LS-EDGE.
LS-QUTE Landing System
The LS-QUTE is a tape-and-magnet-operated landing system. A three inch wide steel tape is
mounted in the hoistway. The cartop control box has a floating head that slides on the steel
tape, and magnetic sensors for slowdown, STU, STD, ISTU, ISTD, ULM(LU), DLM(LD) and
DZ. With LS-QUTE, the Motion 2000 is configured for absolute floor encoding.

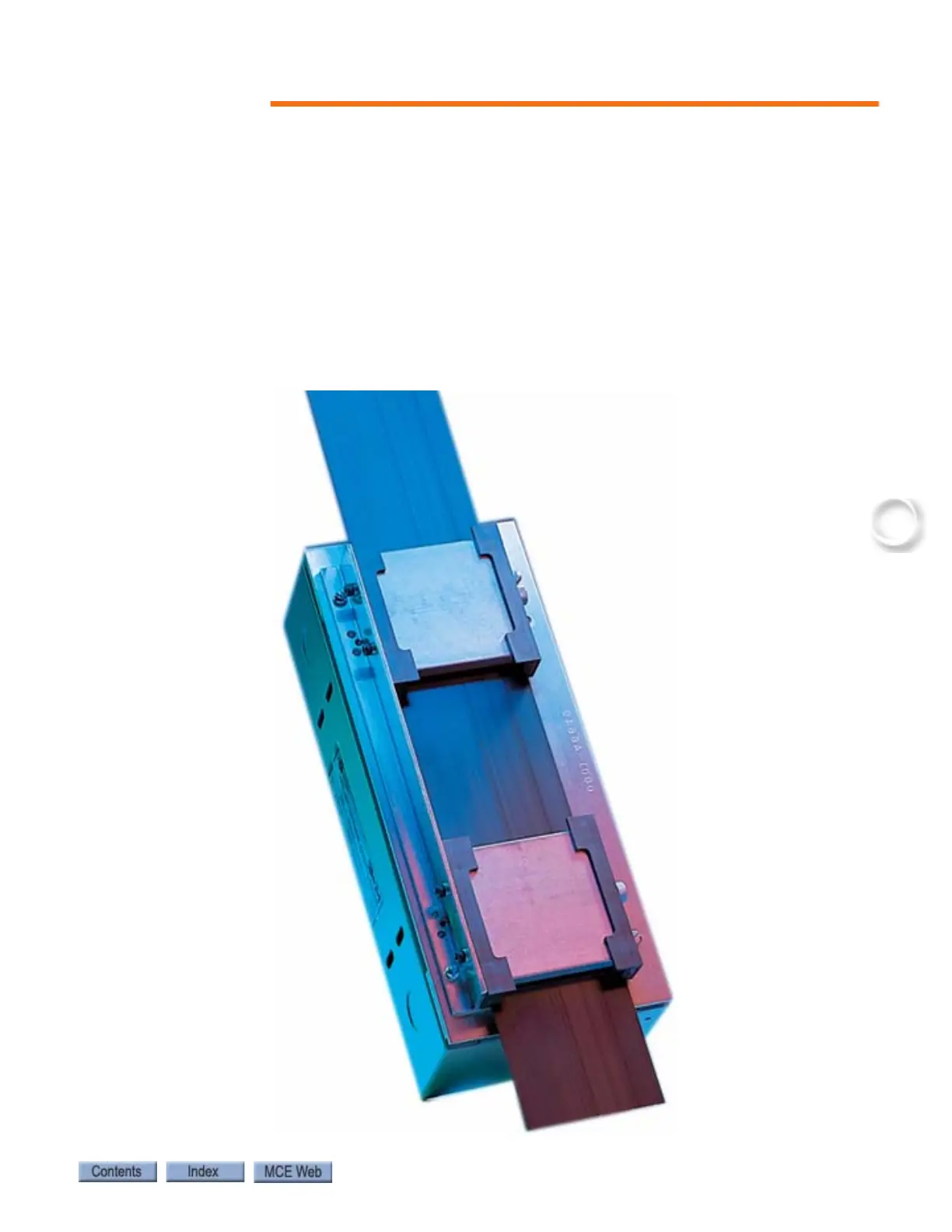

Figure 1.2 LS-QUTE Landing System
