F5: Controller Utilities/Monitoring and Reporting
5-71

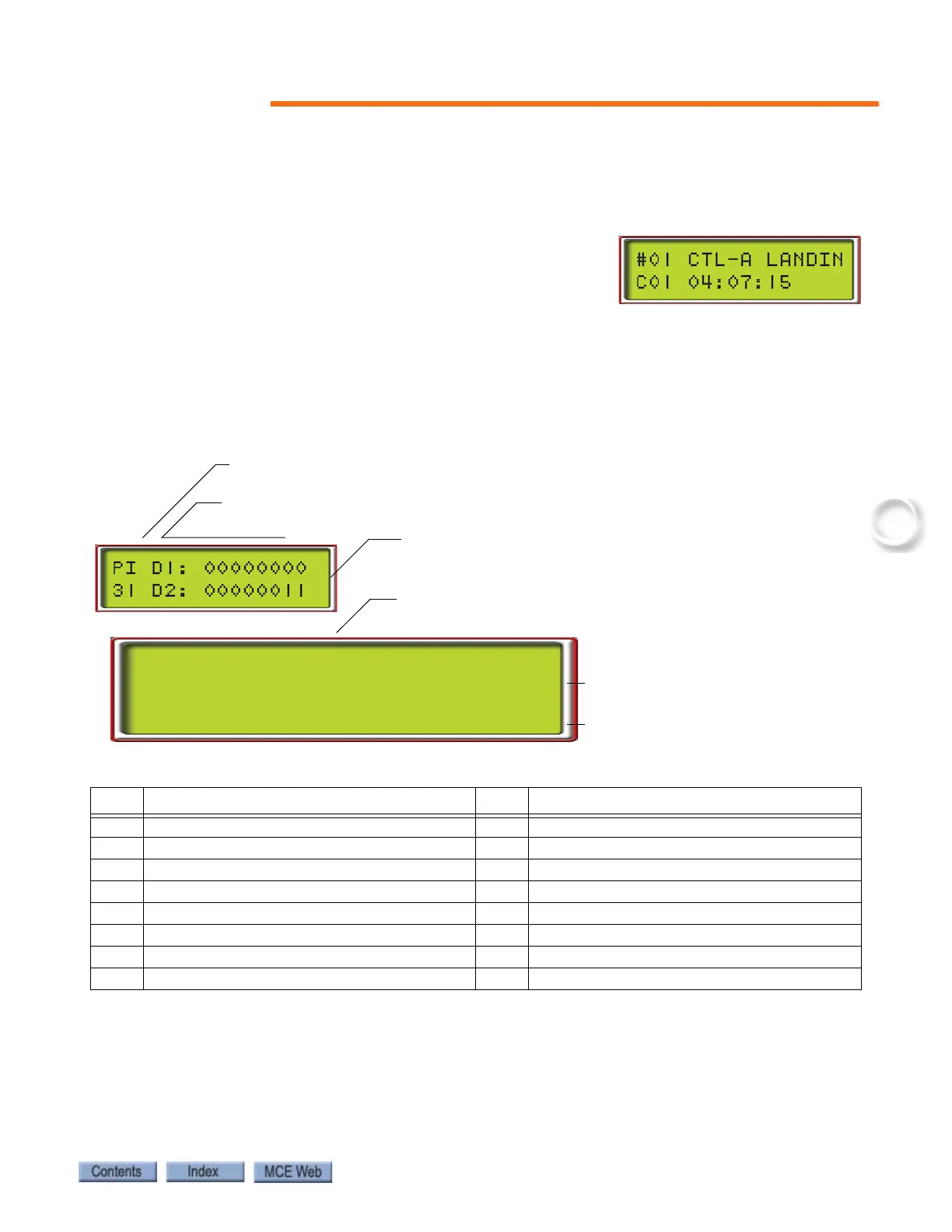

View Event Log
The event log tracks the most recent system events; each with date and time stamp. Event “01”
is the most recent event, with older events numbered “02” through “99” respectively.
1. Press S to view the event log.
An event number and the associated event (usually scrolling
due to message length) are displayed on the top line of the
display. The time and date (alternating) are displayed on the
bottom line.
2. Press + to increment to the next event. (Press - to decrement events.)
3. Press N to exit event viewing.
Additional Information Certain input and output conditions are important to almost
all events. While displaying any event, the status of these inputs/outputs is viewable:
• With an event displayed, press S for additional information:
• Press S again to return to event log standard display.
Table 5.12 Event Message Additional Information
D1 Definition D2 Definition
SAF Safety String, combined DZR Door Zone, Rear
SAFH Safety String, hoistway DZ Door Zone, Front
SAFC Safety String, car LU Level Up
DOLR Door Open Limit, Rear LD Level Down
DOL Door Open Limit, Front UPS Up Direction Sense Input
DLK Door Lock Input DNS Down Direction Sense Input
UPDO Up Direction Output USD Up Slowdown Input
DNDO Down Direction Output DSD Down Slowdown Input
D1: 0 0 0 0 0 0 0 0
SAF SAFH SAFC DOLR DOL DLK UPDO DNDO
D2: 0 0 0 0 0 0 1 1
DZR DZ LU LD UPS DNS USD DSD
Column PI: Floor at which event occurred.
Rows D1 and D2 Input/Output State Indicators: 0 = OFF, 1 = ON
D1 Indicator to Corresponding Input
D2 Indicator to Corresponding Input
Actual Display
Interpreted Display
