Hoistway Control Equipment Installation
3-17
LS-EDGE Terminal Magnets
Special striped magnets are used to designate the top and bottom terminals. The length of the
terminal magnets depends upon car speed, the aggressiveness of the slowdown, and the travel
distance between level at floor and end of travel.

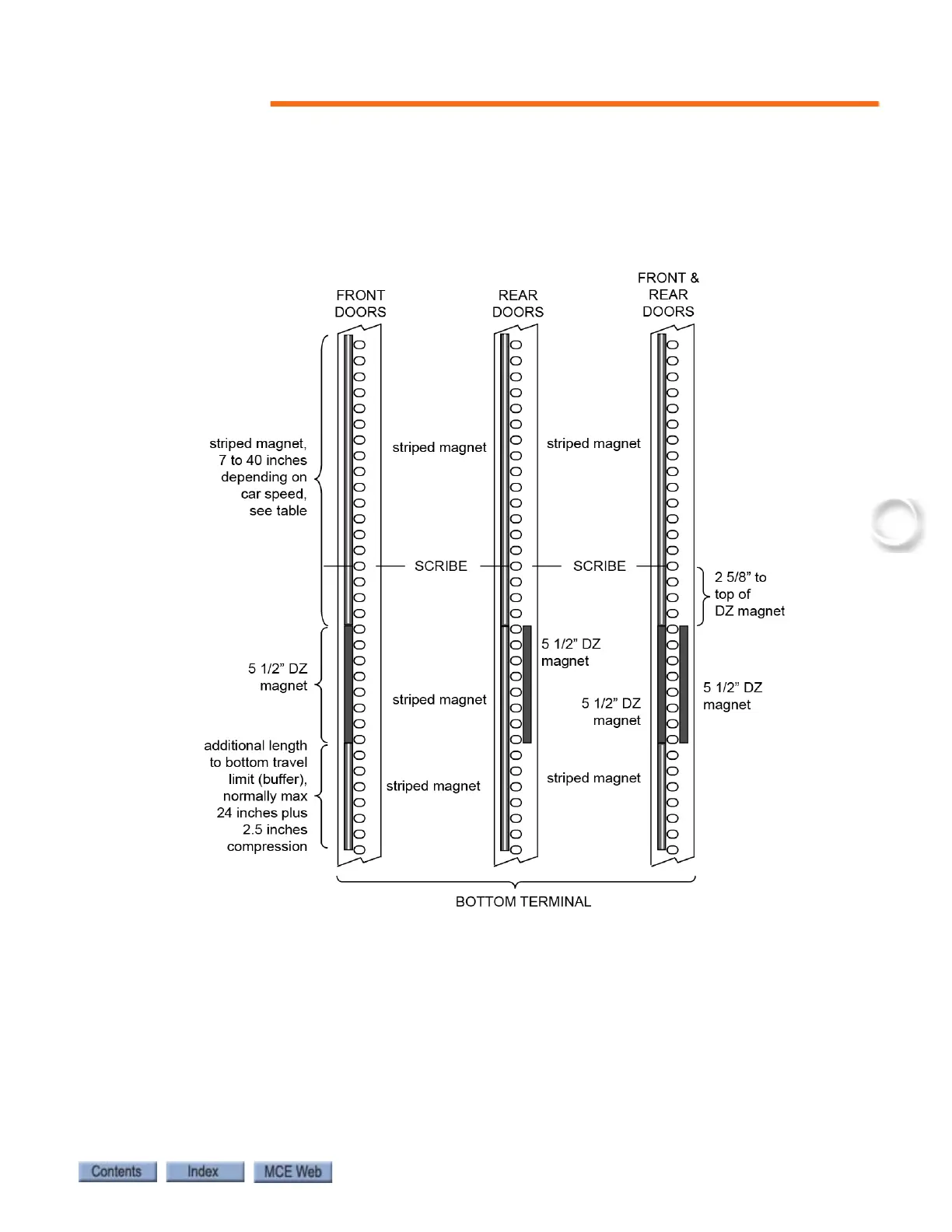

Figure 3.8 Motion 2000 Bottom Terminal Magnets
1. Refer to Table 4 on page 18 to determine the length of the magnet to be placed above the
bottom terminal DZ magnet to the left of the tape holes (see “Motion 2000 Bottom Ter-
minal Magnets” on page 3-17).
2. Place magnet(s) on the tape to the left of the holes, below the bottom terminal DZ mag-
net, sufficient to allow the car to reach bottom travel limit while still sensing the magnet.
3. Refer to Table 4 on page 18 to determine the length of the magnet to be placed below the
top terminal DZ magnet to the right of the tape holes (see “Motion 2000 Top Terminal
Magnets” on page 3-18.
4. Place magnet(s) on the tape to the right of the holes, above the top terminal DZ magnet
sufficient to allow the car to reach stop ring while still sensing the magnet.
