Startup - Inspection Operation
3-18 Manual # 42-02-1P21

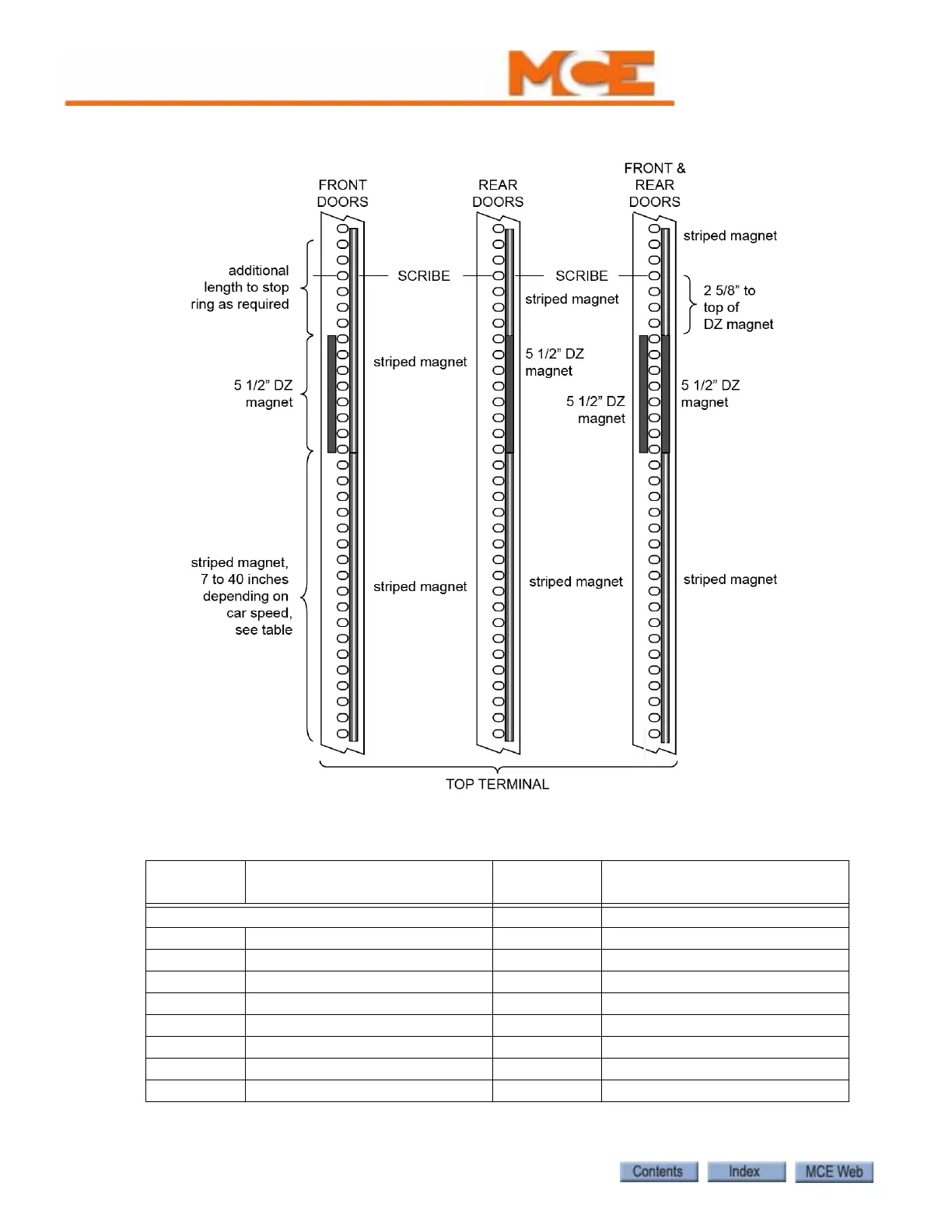

Figure 3.9 Motion 2000 Top Terminal Magnets
Table 4. Suggested Length of Terminal Magnet Before Leading Edge of DZ Magnet
Car Speed
Length of Terminal Magnet
Preceding Floor Zone Magnet
Car Speed
Length of Terminal Magnet
Preceding Floor Zone Magnet
110 fpm 19 inches
<65 fpm 7 inches 125 fpm 22 inches
70 fpm 8 inches 140 fpm 25 inches
75 fpm 10 inches 150 fpm 28 inches
80 fpm 11 inches 160 fpm 30 inches
85 fpm 12 inches 170 fpm 32 inches
90 fpm 13 inches 180 fpm 35 inches
95 fpm 14 inches 190 fpm 37 inches
100 fpm 16 inches 200 fpm 40 inches
40-11-0027
40-11-0028
40-11-0028
