PC Board Quick References
6-69
MC-LSI Landing System Interface Board
The MC-LSI mounts in the cartop box and provides a connection point for the landing system
and for the Car Panel Interface board (MC-CPI) if one is used. The MC-LSI board receives 24
VAC power from an external transformer operating from the controller 2 Bus (120 VAC). In
turn, the LSI board provides power to the landing system and to any Universal I/O boards that
might be used on the cartop through the CAN connections to those components. A shielded,
external CAN connection runs from the LSI board, through the traveler, to the Motion 2000
controller.

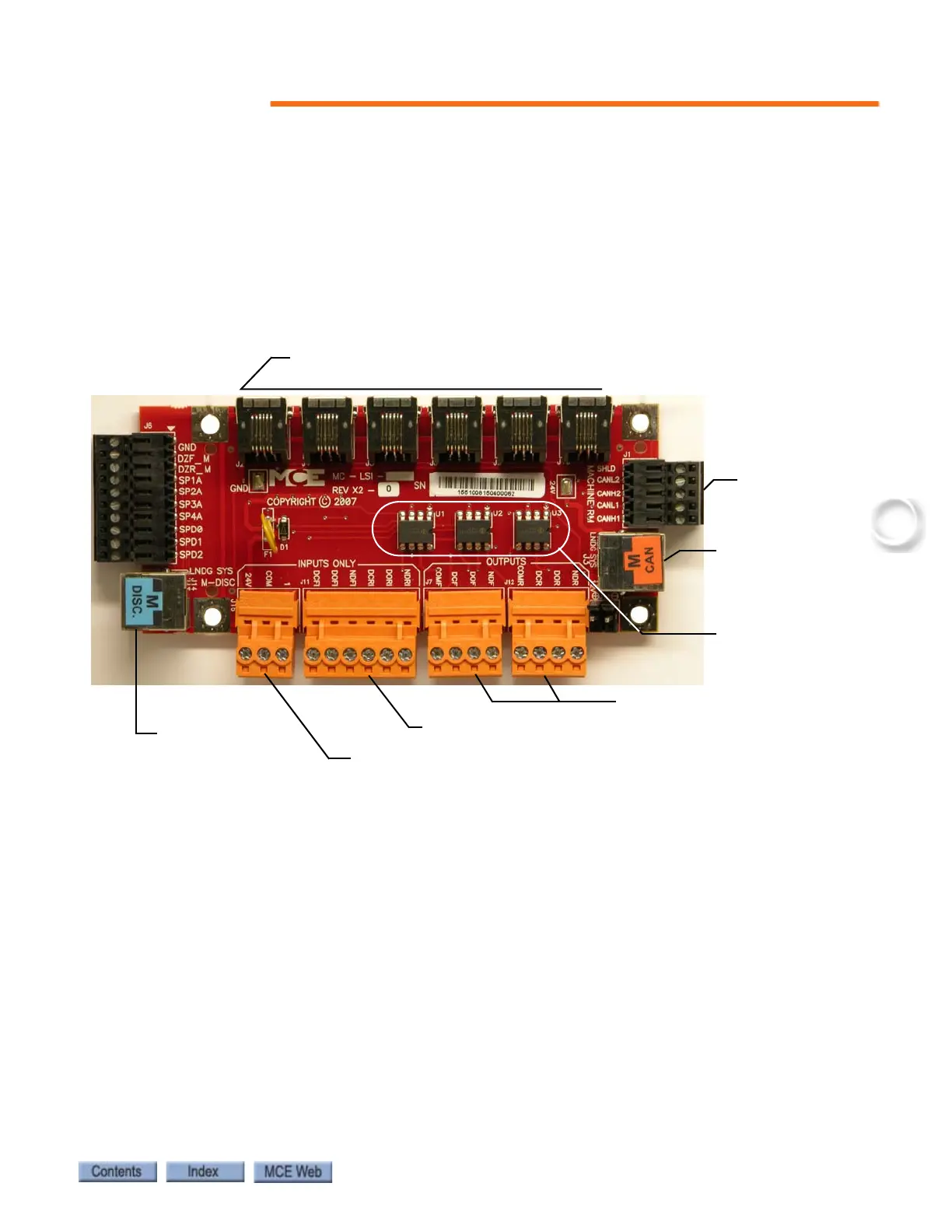

Figure 6.2 MC-LSI Landing System Interface Board
LSI Connections
• Local CAN: CAN signal and power to additional cartop box boards (HC-UIO, MC-CPI,
etc.)
• CAN to Machine Room: Redundant CAN connections to/from machine room
• Landing System: CAN connections to/from landing system
• Door Signals from cartop HC-UIO:
• NDRI: Nudging, rear NDFI: Nudging, front
• DORI: Door open, rear DOFI: Door open, front
• DCRI: Door close, rear DCFI: Door close, front
• Door Signals to operators:
• NDR: Nudging, rear NDF: Nudging, front
• DOR: Door open, rear DOF: Door open, front
• DCR: Door close, rear DCF: Door close, front
• COMR: Common COMF: Common
Local CAN connections to other car boards
CAN to
Landing System
24 VDC from cartop power supply
Door control signals from HC-UIO board
Door control signals to operators
CAN to
Machine Room
Solid state relay
Input/Output
protection
Discrete signals to
Landing System
