LS-EDGE Terminal Magnet Logic
The terminal limits from the LS-EDGE are positional back-up only. The controller uses serial
counter data to adjust speed depending on the positions of the virtual limits. The LS-EDGE
magnet logic provides a redundant means of terminal limits.
• L = LEVELING MAGNET (UNMARKED)
• T = TERMINAL MAGNET PRESENT (STRIPED OR WHITE)
• 0 = NO MAGNET PRESENT
•X = DON’T CARE
When the controller is powered up with no sensors present, DSL1 and USL1, are closed.
• DSL1 is open in the presence of terminal magnets at ULM, DZ, DLM, or SDD sensors.
• USL1 is open in the presence of terminal magnets at ULMR, DZR, DLMR, or SDU sen-
sors.
LS-EDGE Electrical Connection
Make electrical connections as shown in the job prints. Motion 2000 installations use the DISC
(discrete) and M-CAN connections.
Caution: Secure cables with a nylon tie wrap through the holes provided. This is VERY
IMPORTANT as it provides strain relief and prevents connector fatigue over time.

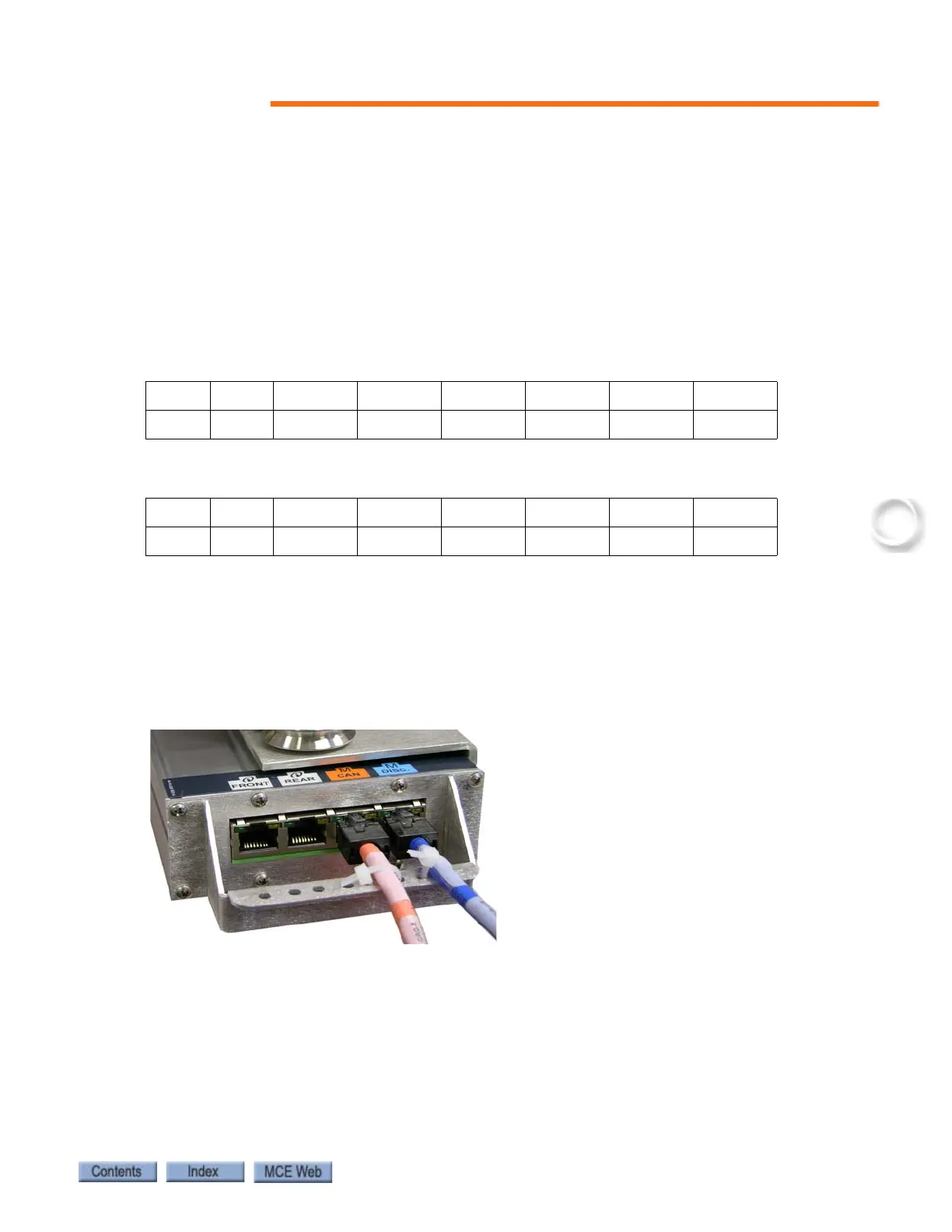

Figure 3.10 Sensor Connections
Parameter Settings
Verify the following parameter settings:
• F1: Program Mode - Additional Car Option Menu - LS-EDGE Landing System? = Yes
• F7: Parameters Adjust - #191 Landing System = LS-EDGE
• F7 parameters 209 + Step Dn“x” and 210 + Step Up“x” = Factory settings (x = floor #)
• F7 parameters 241+ Sub Step Dn“x” and 242+ Sub Step Up“x” = Factory settings
ULM DZ DLM SDD ULMR DZR DLMR SDU
TTTTXXXX
ULM DZ DLM SDD ULMR DZR DLMR SDU
XXXXTTTT
M CAN, Motion CAN, orange cable
DISC, Discrete, blue cable
