F7: Parameters Adjust
5-101
F7: Parameters Adjust
Through the F7 menu, you can fill and/or adjust motion related parameters. With the car on
Inspection and the F7 function switch in the UP position, the N button is used to cycle between
the two (Fill or Adjust) menus.

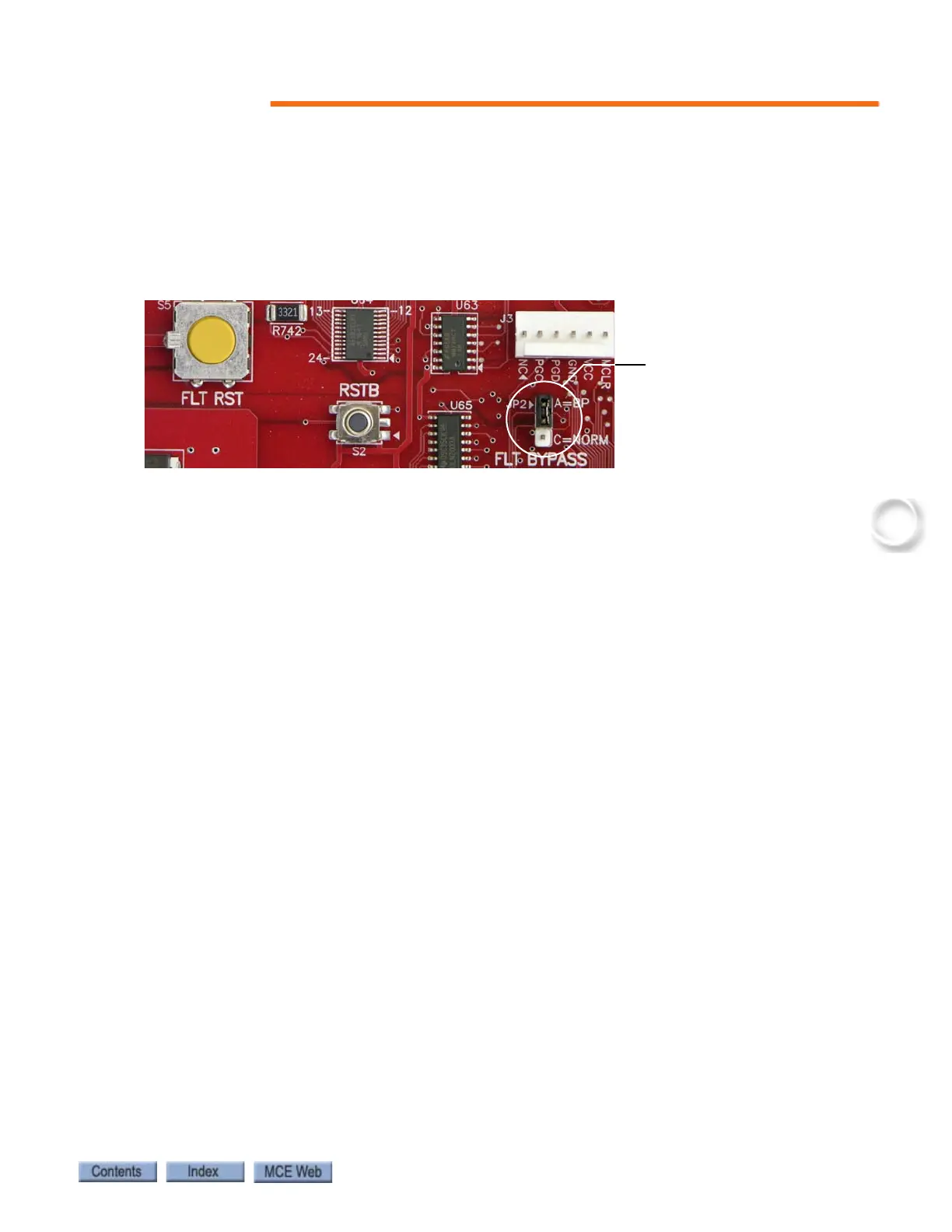

Important Once set at the factory, F7 parameters are protected by positioning a jumper
on the HC-CTL-2 board. Before you can access F7 parameters, you must set the jumper appro-
priately:
Changing Parameters
1. Place the car on Inspection operation.
2. Set the F7 function switch to the up position.
3. Press N until the LCD displays PARAMETER ADJUST MENU. Press S to select. The
LCD will display ADJUST FROM N=LAST / S=START.
• Press N to begin adjustment from the last viewed or edited parameter.
• Press S to begin adjustment starting with the first F7 parameter.
4. Once viewing parameters:
• Press N to move through the parameters listings.
• Press + or - to change a displayed parameters value.
• To move back to a previous parameter, press and hold N (Next) then press - (minus) as
needed
• Press S to save changed parameters.
Filling Parameters
Stepping parameters can be preset using this sub-menu.
1. Place the car on Inspection operation.
2. Set the F7 function switch to the up position.
3. Press N until the LCD displays PARAMETER FILL MENU. Press S to select. The LCD
will display the stepping distance that will be used to preset all step parameters. The
sub-step parameters will be preset to zero.
• Press + or - to change the step fill value.
• Press S to set all step parameters to the adjusted fill value and all sub-step parameters
to zero.
• Press N to cancel changes and return to the PARAMETER ADJUST MENU.
