Motion 2000 TSSA Description
1-6 Manual # 42-02-1P21

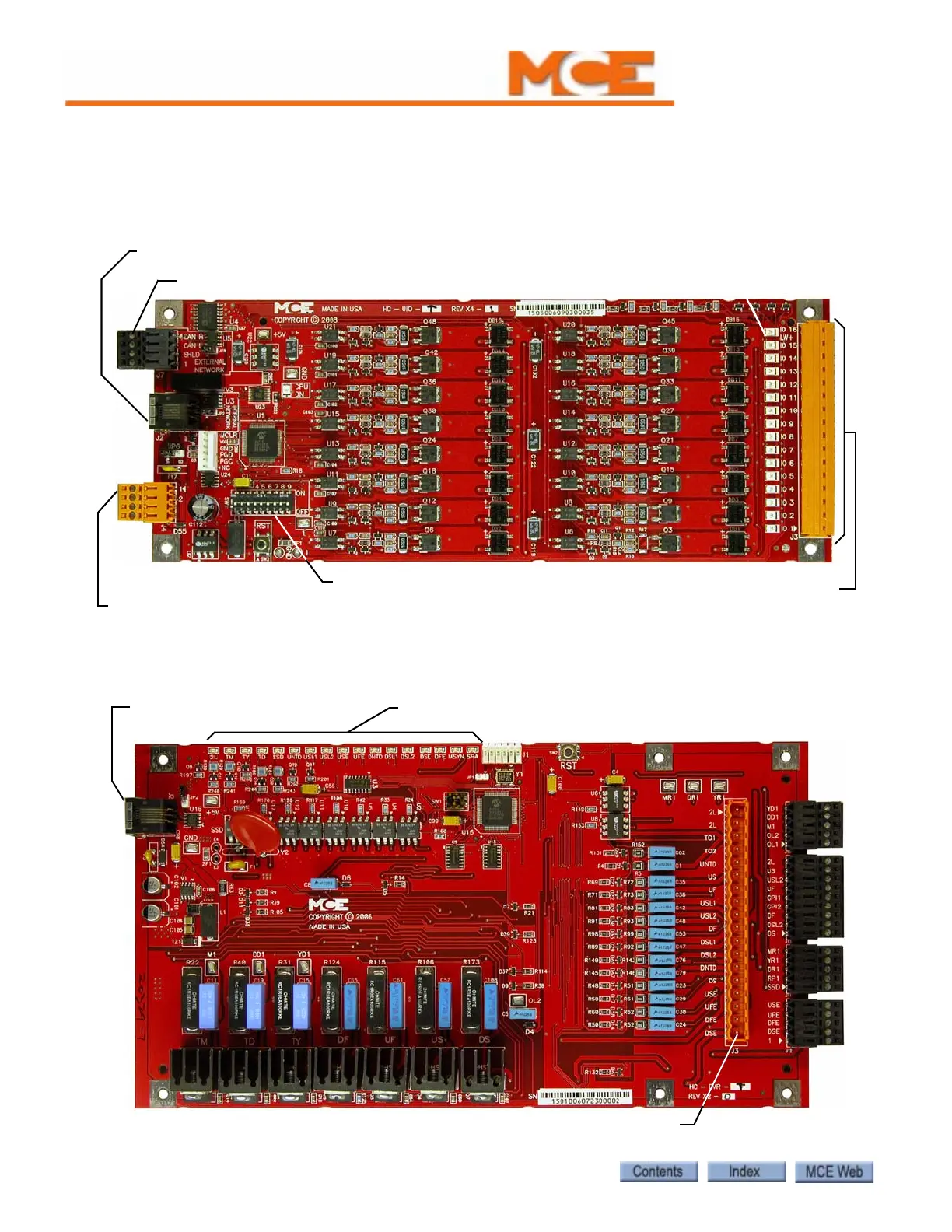

HC-UIO Universal Input/Output Board Depending upon the board configuration,
HC-UIO boards may be used for programmable inputs and outputs (16 per board), car and hall
calls, and dispatching. In all cases, the functionality of the HC-UIO board can be expanded by
“plugging in” additional boards. For more information see “HC-UIO-2 Universal Input/Output
Board” on page 6-53.
HC-DVR Driver Board The HC- DVR Driver board controls the starter and valves. For
more information see “HC-DVR Driver Board” on page 6-47.
External CAN connection
Internal CAN connection
1 bus and 2 bus
24 - 120V AC or DC Inputs / Outputs
I/O Status Indicators
Board ID
Internal CAN connection
Starter, valve and hoistway limit connections
Indicators
