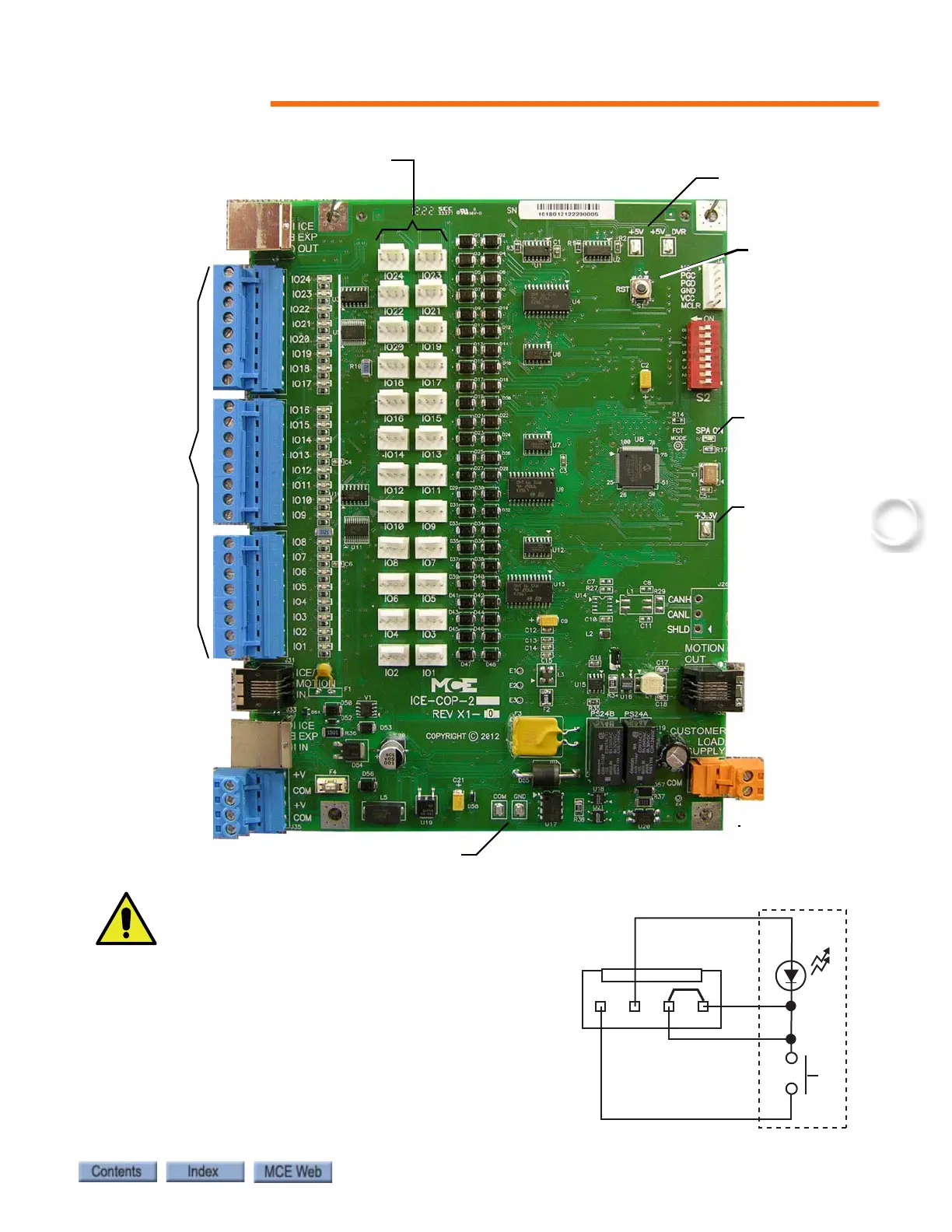

Figure 6.10 ICE-COP-2 Serial Car Operating Panel Board
COM
+24V
CAR CALL
BUTTON
+24V SIGNAL
COM
Test points,+5v
Reset button
I/O
connections
24 VDC
6W max.
To previous board
or LSI on cartop
(RJ11)
8-position DIP
switch package
+24V
Com
4-pin “universal” inputs may be used
instead of screw terminals if desired.
CAN to next
ICE-COP-2
Not used for
Motion controllers
I/O Status LEDs
SPA processor OK
Test point,+3.3v
Test point COM, GND
Board power
input. See
prints.
Caution
This system is designed for 24 VDC cir-
cuits maximum. Connecting 120VAC or
DC will open the input fuses.
Connection Example:
Universal 4-pin inputs
Not used for
Motion controllers
