Motion Control Engineering 2000 User Manual

PC Board Quick References
6-65
6

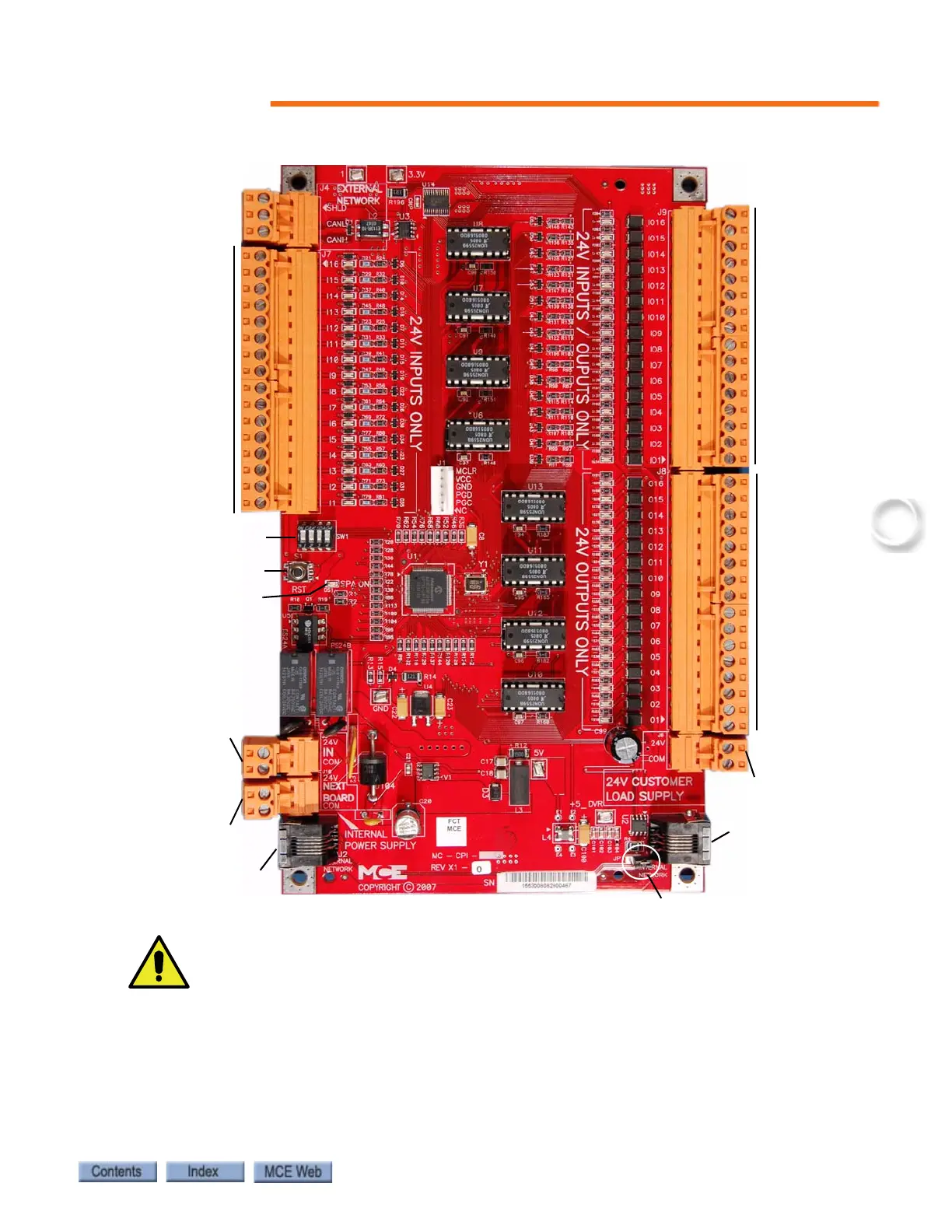

Figure 7. MC-CPI Serial Car Panel Interface Board
J3 - To next MC-CPI
board (RJ11)
Inputs only
24 VDC max.
6W max.
To MC-LSI board in
Cartop box or
MC-CPI board - J2
From Power
Supply - J5
+24VDC in
COM
Outputs only
24 VDC max.
6W max.
I/O only
24 VDC max.
6W max.
+24VDC
COM
To next board - J10
Reset button
SW1 Board Address
JP1 - Bus termination
on last board
+24VDC
COM
J6 - Customer
Load Supply
SPA ON indicator
Caution
This system is designed for 24 VDC circuits maximum. Do not
connect 120VAC or DC to any terminal on this board at any time.
