The PowerPC Core
MOTOROLA
MPC823e REFERENCE MANUAL
6-3
CORE
6

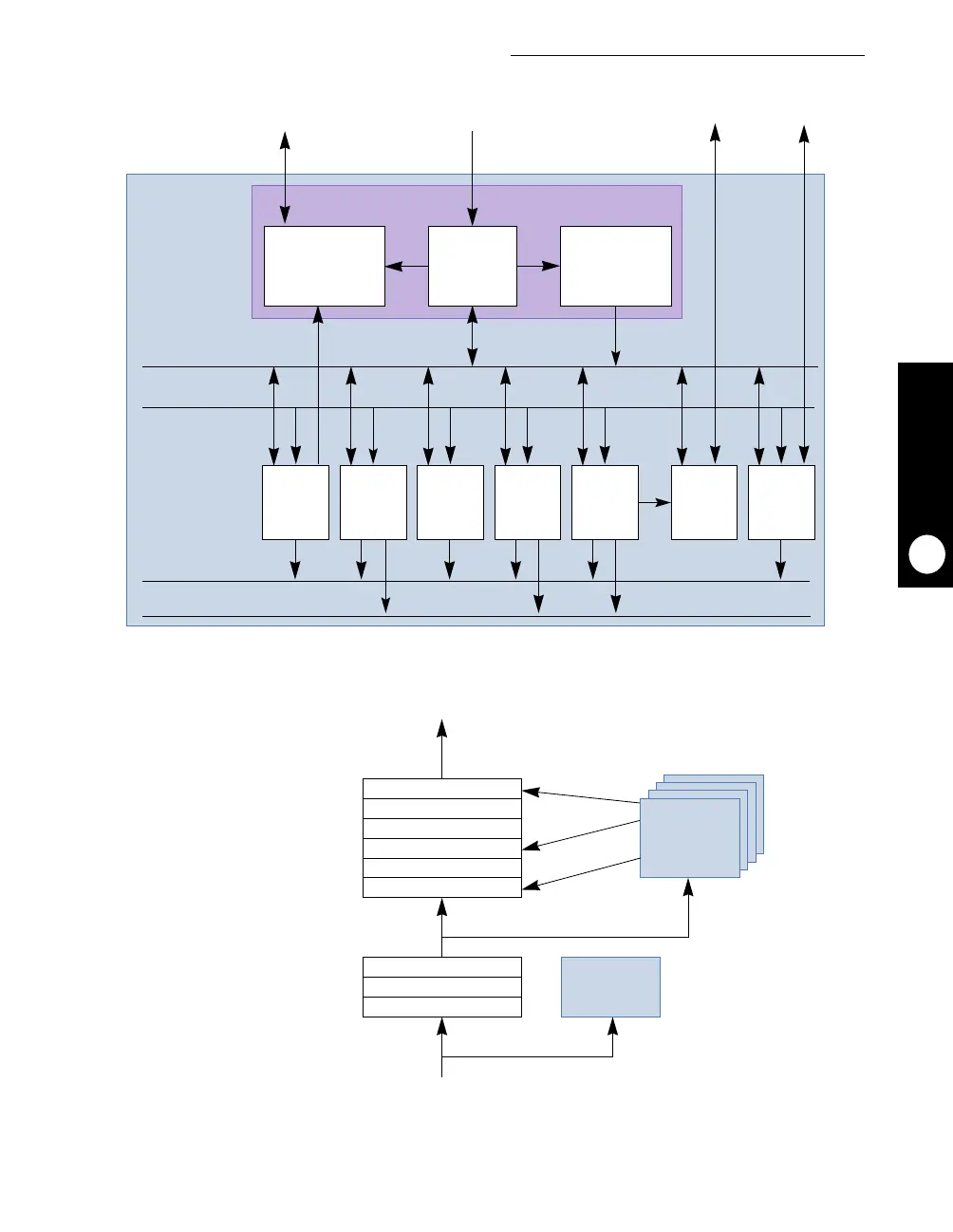

Figure 6-1. Block Diagram of the Core
Figure 6-2. Instruction Flow Conceptual Diagram
WRITEBACK BUS
SOURCE BUSES
CONTROL BUS
BRANCH
L-ADDR
L-DATA
LDST
FIX
LDST
ADDR
IMUL /
IDIV
ALU /
GPR
HISTORY
GPR
(32 X 32)
CONTR
REGS
(2 SLOTS / CLOCK)
(4 SLOTS / CLOCK)
INSTRUCTION
QUEUE
UNIT
NEXT ADDRESS
GENERATION
SEQUENCER
CORE
BFU
INSTRUCTION CACHE / INSTRUCTION MMU INTERFACE
DATA CACHE / DATA MMU INTERFACE
DATA
EXECUTION UNITS
HISTORY BUFFER
INSTRUCTION QUEUE
BRANCH
UNIT
ISSUE
RETIRE
FETCH
WRITEBACK
133
135
