Instruction Execution Timing
MOTOROLA
MPC823e REFERENCE MANUAL
8-7
INSTRUCTION EXECUTION
8
TIMING
8.2.3 Fastest External Load (Data Cache Miss)
lwz
r12,64 (SP)
sub
r3,r12,3
addic
r4,r14,1
The
sub
instruction is dependent on the value read by the load. It causes three bubbles in
the instruction execution stream. The external clock is shifted 90
°
relative to the internal
clock.

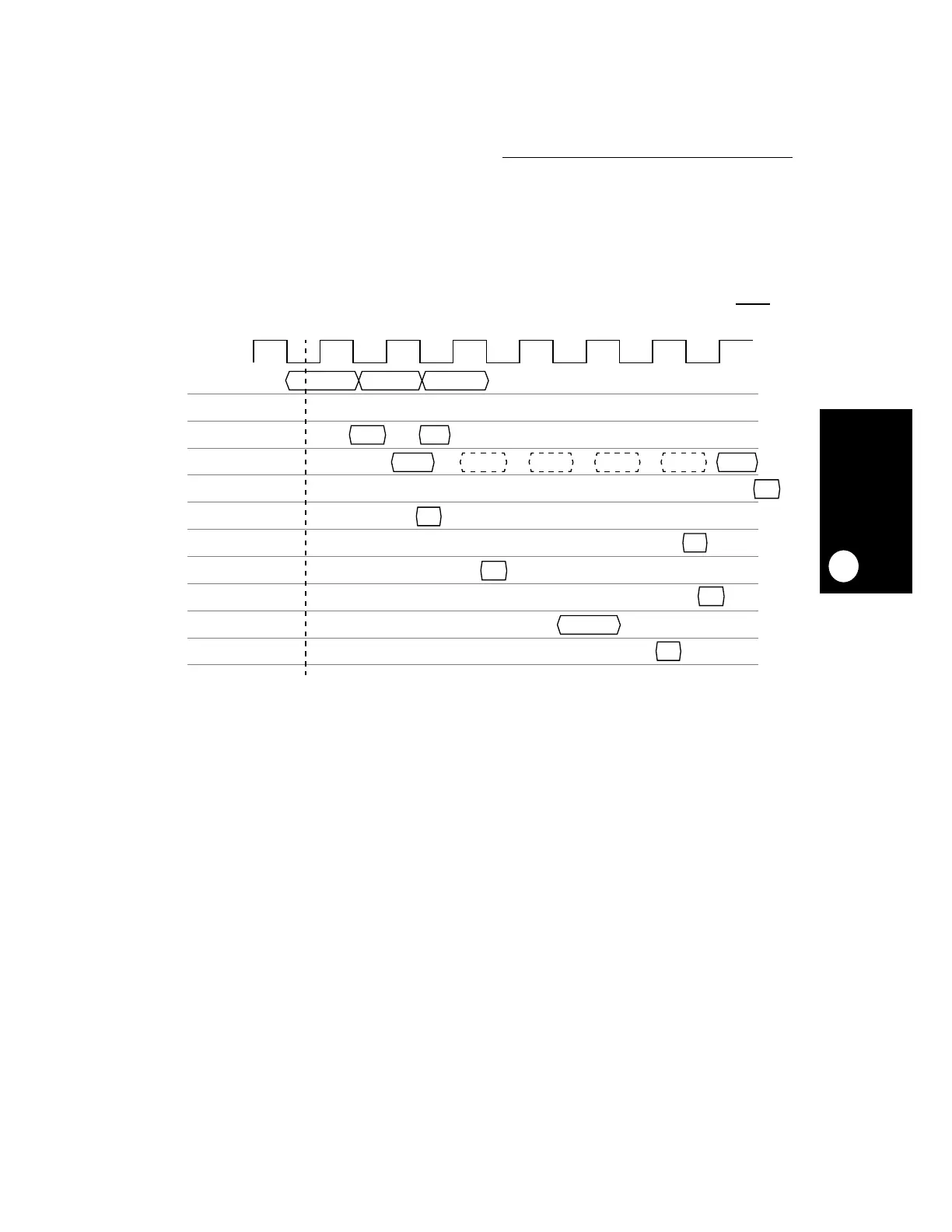

Figure 8-5. Example of an External Load
SUB
LWZ
LWZ
SUB
ADDIC
SUB
SUB
LWZ
BUBBLE
LWZ
LWZ
LWZ
LWZ
LWZ
LWZ
GCLK1
E DATA
FETCH
DECODE
READ + EXECUTE
WRITEBACK
L ADDRESS DRIVE
L DATA
CACHE ADDRESS
LOAD WRITEBACK
E ADDRESS
BUBBLE
BUBBLE
BUBBLE
