External Bus Interface

MOTOROLA

MPC823e REFERENCE MANUAL

13-11

EXTERNAL BUS

INTERFACE

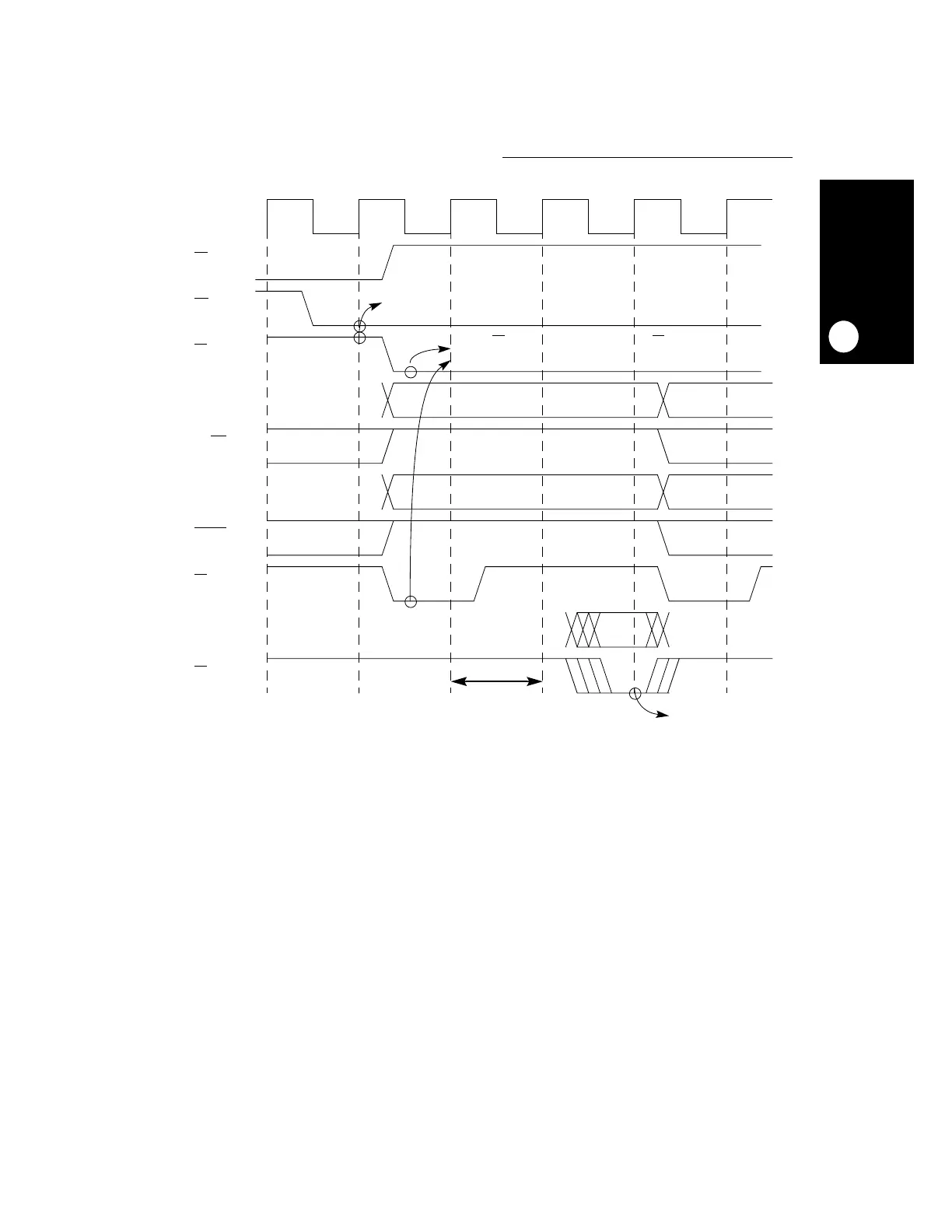

Figure 13-5. Single Beat Read Cycle–Basic Timing–One Wait State

CLKOUT

A[6:31]

DATA

RD/WR

RECEIVE BUS GRANT AND BUS BUSY NEGATED

ASSERT BB, DRIVE ADDRESS AND ASSERT TS

DATA IS VALID

BURST

TSIZ[0:1],AT[0:3]

WAIT STATE
