External Bus Interface

MOTOROLA MPC823e REFERENCE MANUAL 13-19

EXTERNAL BUS

INTERFACE

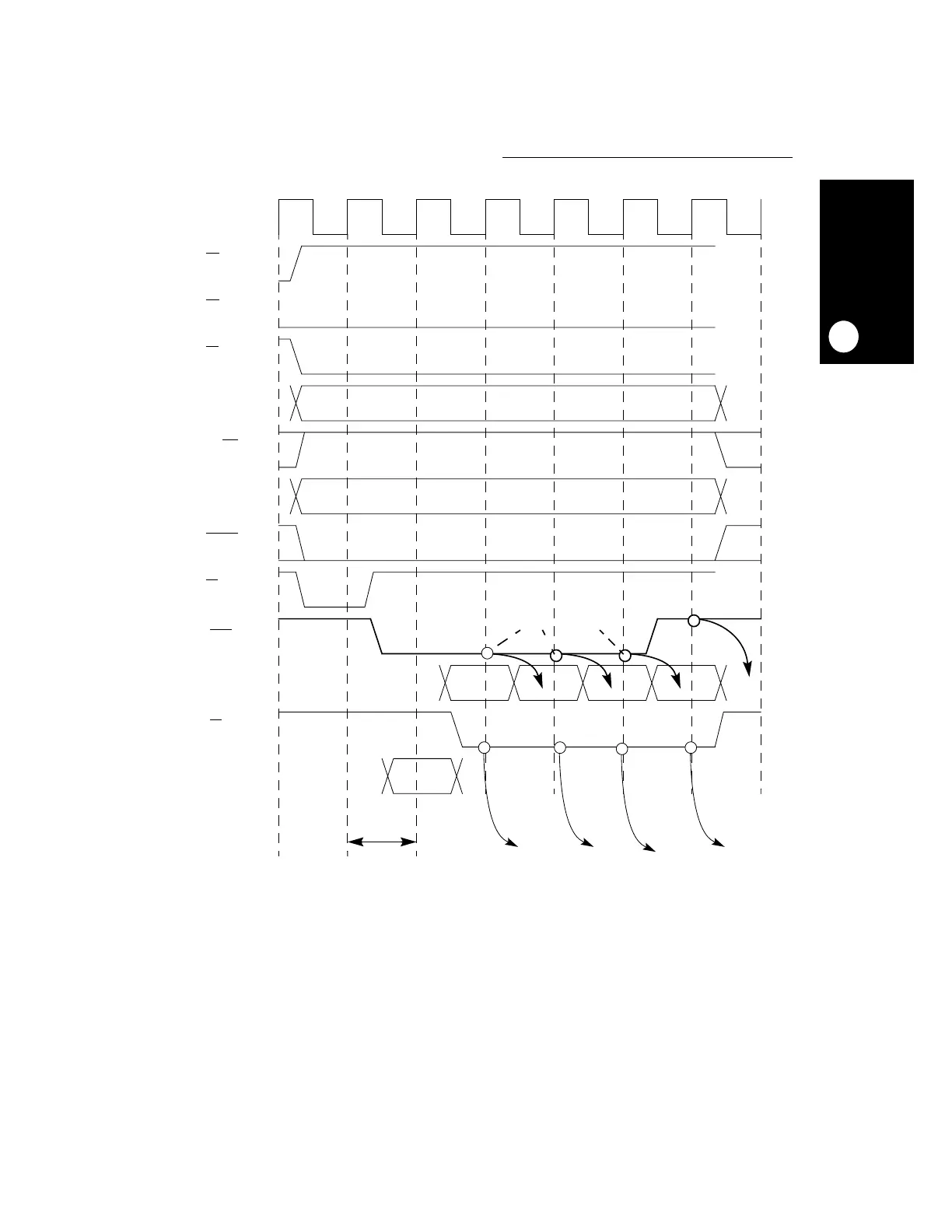

Figure 13-12. Burst-Read Cycle–32-Bit Port Size–One Wait State

CLKOUT

A[6:31],AT[0:3]

DATA

RD/WR

BURST

TSIZ[0:1]

BDIP

DATA DATA

DATA

IS VALID IS VALID

IS VALID

LAST BEAT

EXPECTS ANOTHER DATA

‘00’

WAIT STATE

‘00’
