External Bus Interface

MOTOROLA MPC823e REFERENCE MANUAL 13-43

EXTERNAL BUS

INTERFACE

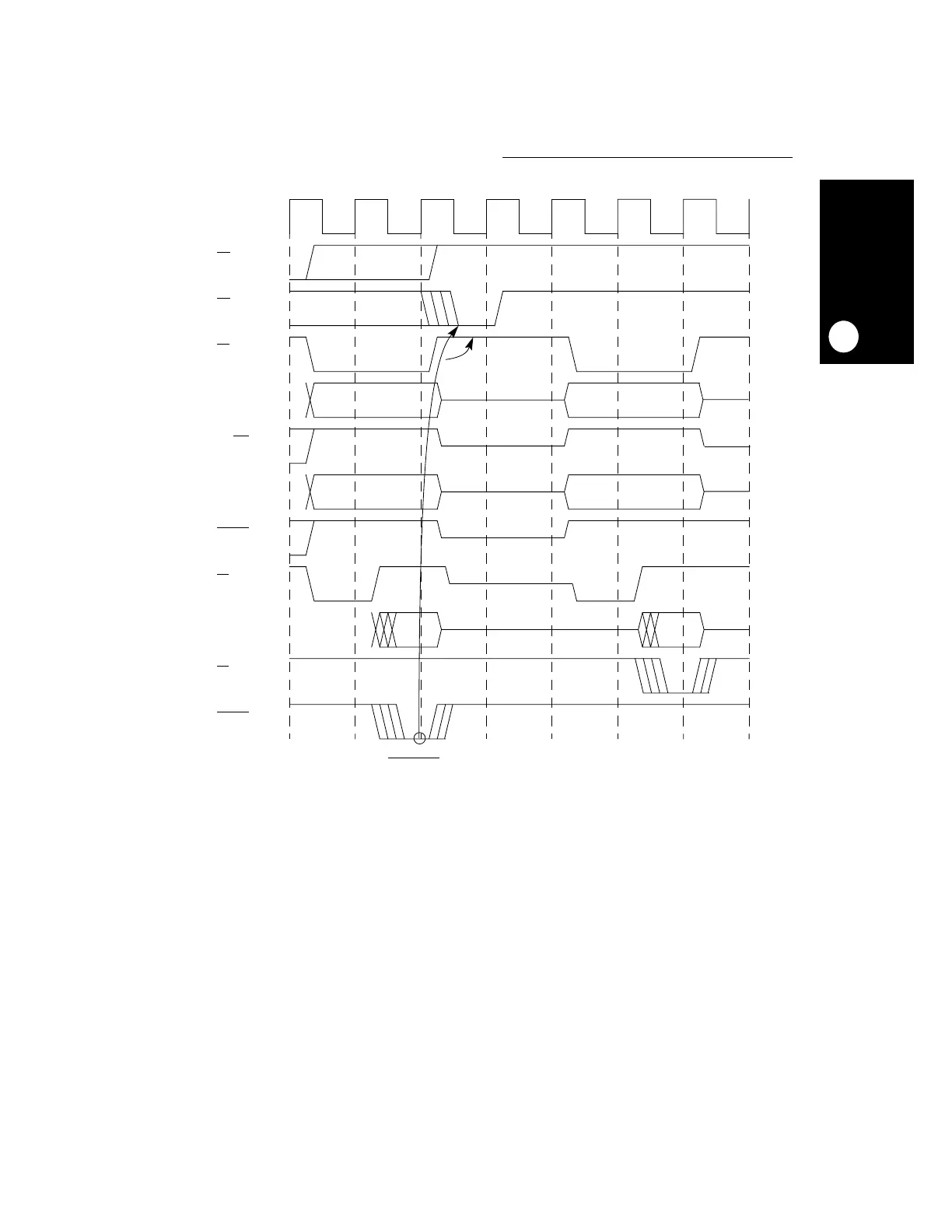

Figure 13-28. RETRY Transfer Timing–Internal Arbiter

CLKOUT

A[6:31]

BG(OUTPUT)

DATA

RD/WR

BURST

TSIZ[0:1]

RETRY

ALLOW EXTERNAL MASTER

TO GAIN THE BUS
