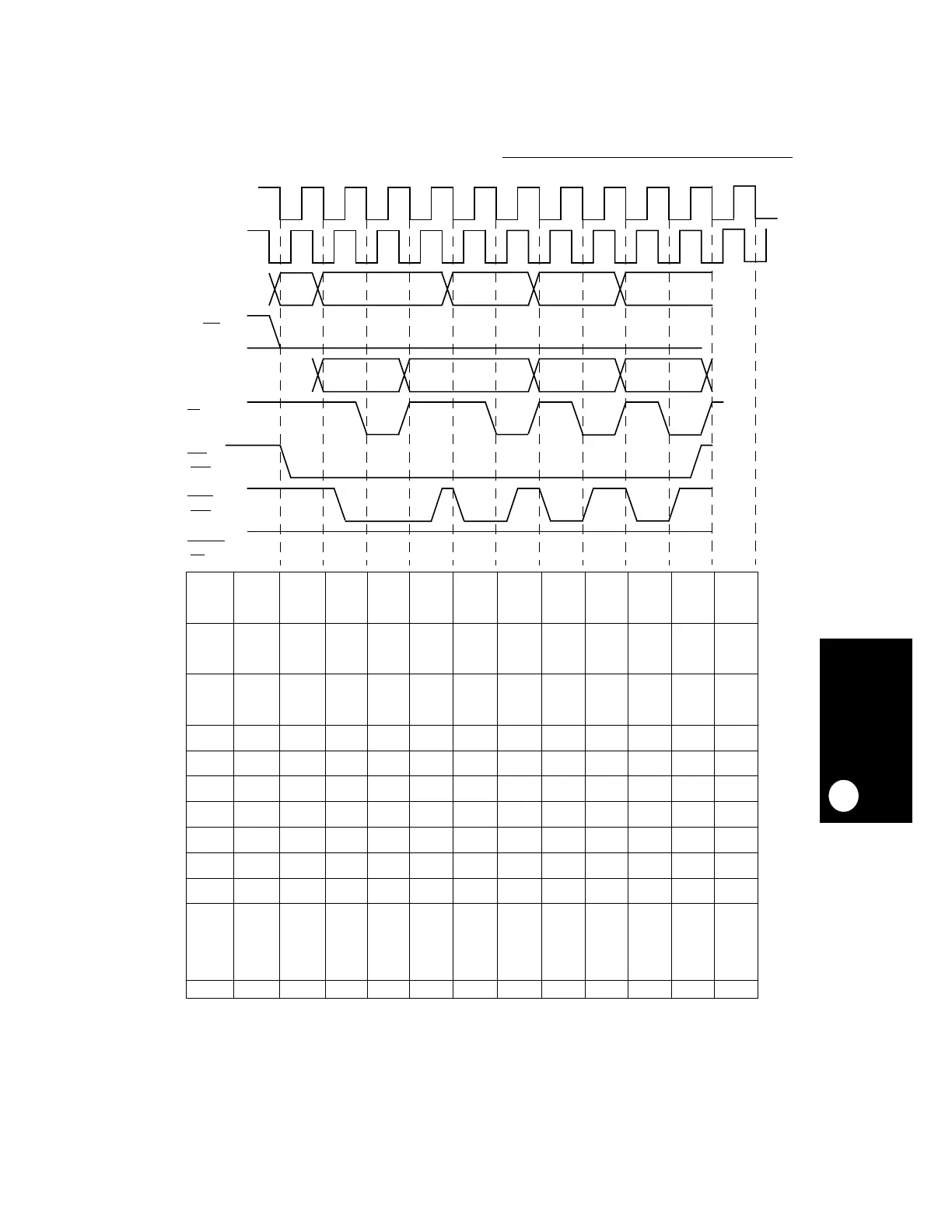

Figure 15-55. EDO DRAM Burst Write Access
cst4 Bit 0 0 0 0 0 0 0 0 0 0 0
cst1 Bit 1 0 0 0 0 0 0 0 0 0 0
cst2 Bit 2 0 0 0 0 0 0 0 0 0 1
cst3 Bit 3 0 0 0 0 0 0 0 0 0 1
bst4 Bit 4 1 1 0 0 0 0 0 1 0 1
bst1 Bit 5 1 0 0 0 0 1 0 1 0 1
bst2 Bit 6 1 0 0 1 0 1 0 1 0 1
bst3 Bit 7 1 0 0 1 0 1 0 1 0 1
g0l0 Bit 8
g0l1 Bit 9
g0h0 Bit 10
g0h1 Bit 11
g1t4 Bit 12 1 1 1 1 1 1 1 1 1 1
g1t3 Bit 13 1 1 1 1 1 1 1 1 1 1
g2t4 Bit 14
g2t3 Bit 15
g3t4 Bit 16
g3t3 Bit 17
g4t4 Bit 18
g4t3 Bit 19
g5t4 Bit 20
g5t3 Bit 21
- Bit 22
- Bit 23
loop Bit 24 0 0 0 0 0 0 0 0 0 0
exen Bit 25 0 0 0 1 0 1 0 1 0 0
amx0 Bit 26 0 0 0 0 0 0 0 0 0 1
amx1 Bit 27 0 0 0 0 0 0 0 0 0 0
na Bit 28 0 0 0 1 0 1 0 1 0 0
uta Bit 29 1 0 1 1 0 1 0 1 0 1
todt Bit 30 0 0 0 0 0 0 0 0 0 1
last Bit 31 0 0 0 0 0 0 0 0 0 1
WBS WBS+1 WBS+2 WBS+3 WBS+4 WBS+5 WBS+6 WBS+7 WBS+8 WBS+9
CLKOUT/GCLK2
GCLK1
A[6:31]
RD/
WR
D[0:31]
TA
CS2
BS_B [0:3]
ROW COLUMN 1
(
CAS [0:3])
(
RAS )
GPL_B1
( OE )
COLUMN 2 COLUMN 3 COLUMN 4
