Communication Processor Module

MOTOROLA

MPC823e REFERENCE MANUAL

16-155

SERIAL

I/F

COMMUNICATION

PROCESSOR MODULE

The pins available to the universal serial bus, serial communication controllers, and serial

management controllers in NMSI mode are illustrated in Figure 16-62.

The modem control pins for the USB in NMSI mode are as follows:

• USBRXD

• USBRXP

• USBTXP

• USBCLK ← BRG1–BRG4, CLK1–CLK4

• USBRXN

• USBTXN

•

USBOE

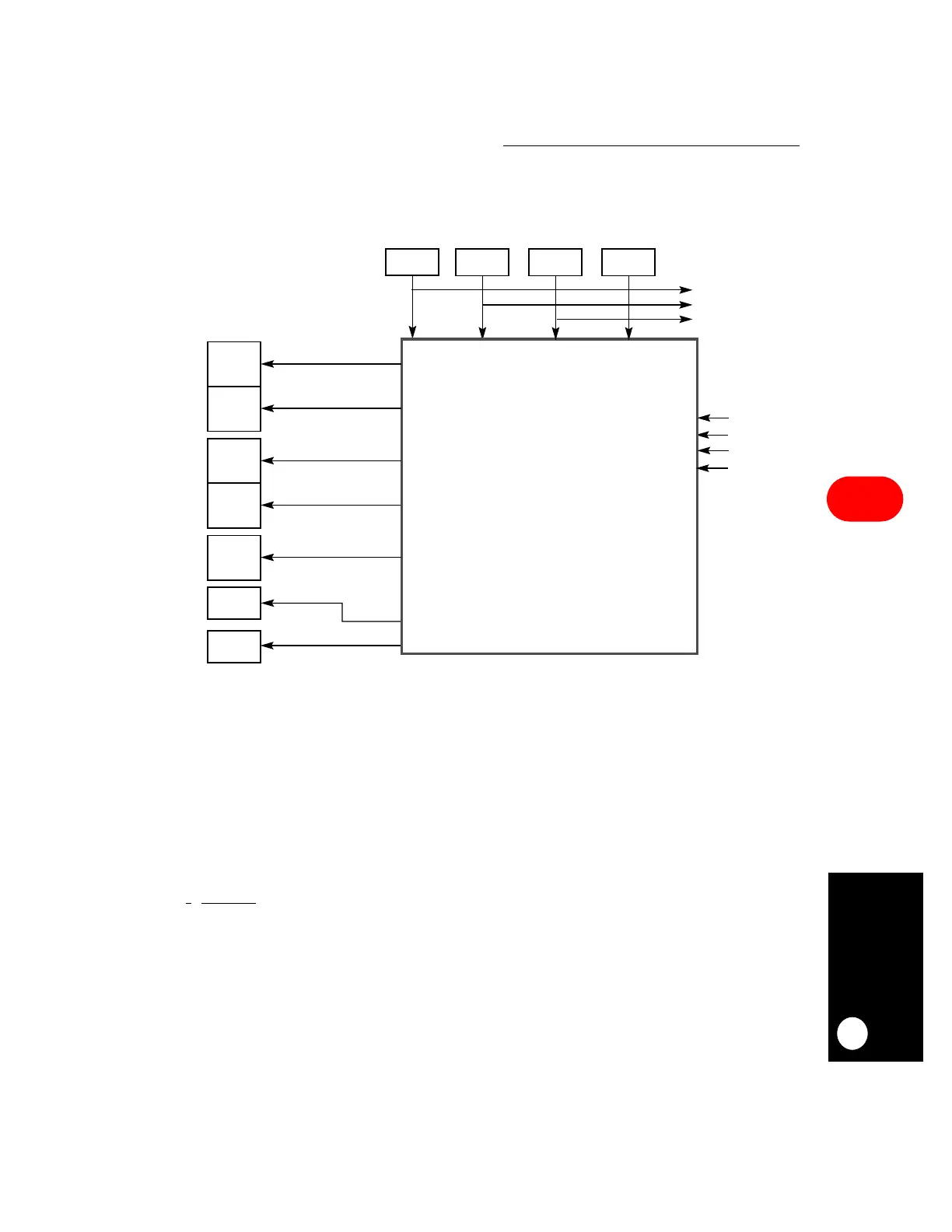

Figure 16-62. Bank of Clocks

SMC1

SMC2

SCC2

BRG1

BRG2

CLK2

SMCLK1

SMCLK2

RCLK2

TCLK2

BRGO1

BRGO2

BANK OF CLOCKS

SELECTION LOGIC

USB AND SCCS CONTROLLED IN THE SICR

SMCS CONTROLLED IN THE SIMODE REGISTER

CLK4

USBCLK

USB

CLOCK

BRG3

BRG4

BRGO3

SCC3

RCLK3

TCLK3

CLK1

CLK3
