If both the REN and TEN bits are set in the SMCMR, the first falling edge of the SMSYNx
pin causes both the transmitter and receiver to achieve synchronization. To resynchronize
the transmitter or receiver, the SMCx transmitter/receiver can be disabled and reenabled
and the SMSYNx
pin can be used again to resynchronize the transmitter or receiver. Refer
to Section 16.11.5 Disabling the SMCs On-the-Fly for a description of how to safely
disable and reenable a serial management controller. Simply clearing and setting the TEN
bit may not be sufficient.

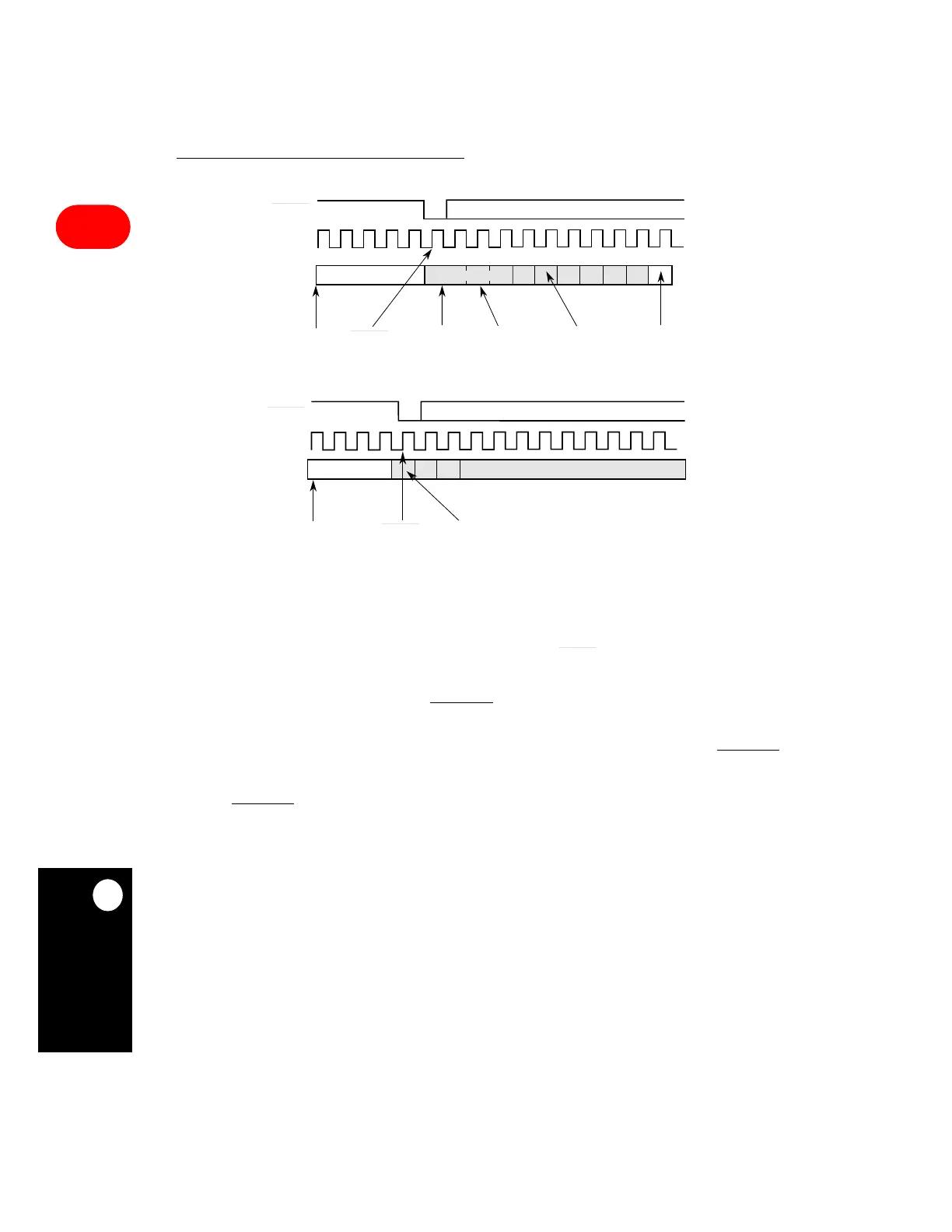

Figure 16-120. SMSYNx
Pin Synchronization
SMRXD
SMC1 RECEIVE DATA
SMTXD
SMSYNx
SMCLK
TEN
SET
HERE
TX FIFO
LOADED
APPX.
HERE
SMSYNx
DETECTED
LOW HERE
SMCLK
SMSYNx
REN SET
HERE OR
ENTER
HUNT MODE
COMMAND
ISSUED
FIRST BIT OF
RECEIVE
DATA (LSB)
1s ARE SENT
SMSYNx
DETECTED
LOW HERE
SMC1 TRANSMIT DATA
FIRST BIT OF
FIRST 5-BIT
TRANSMIT
CHARACTER
(LSB)
NOTES:
1. SMCLK is an internal clock derived from an external clock pin or a baud rate generator.
2. This example shows the SMC receiver and transmitter enabled separately. If the REN
and TEN bits were set at the same time, a single falling edge of SMSYNx would
synchronize both.
FIVE 1s
ASSUME
CHARACTER
LENGTH
EQUALS 5
TRANSMISSION
COULD BEGIN
HERE IF TX FIFO
NOT LOADED IN
TIME
FIVE 1s ARE SENT
