PCMCIA Interface

MOTOROLA MPC823e REFERENCE MANUAL 17-25

PCMCIA INTERFACE

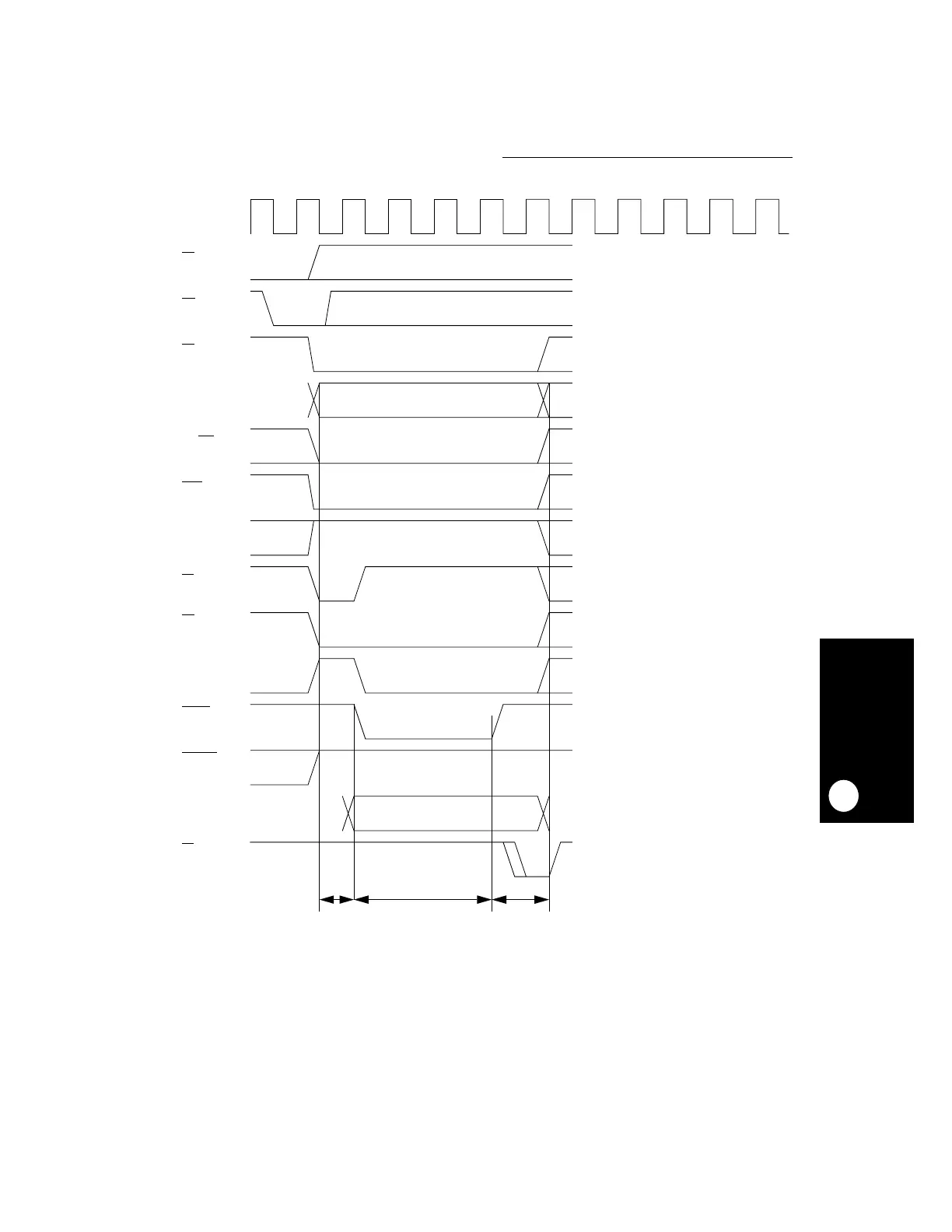

Figure 17-6. PCMCIA Single Beat Write Cycle

(PRS = 2, PSST = 1, PSL = 3, PSHT = 1)

CLKOUT

A[0:31]

DATA

RD/WR

BURST

REG

ALE_B

PCWE

WAIT_B

CE[1:2]

PSST PSL PSHT
