PCMCIA Interface

17-30 MPC823e REFERENCE MANUAL MOTOROLA

PCMCIA INTERFACE

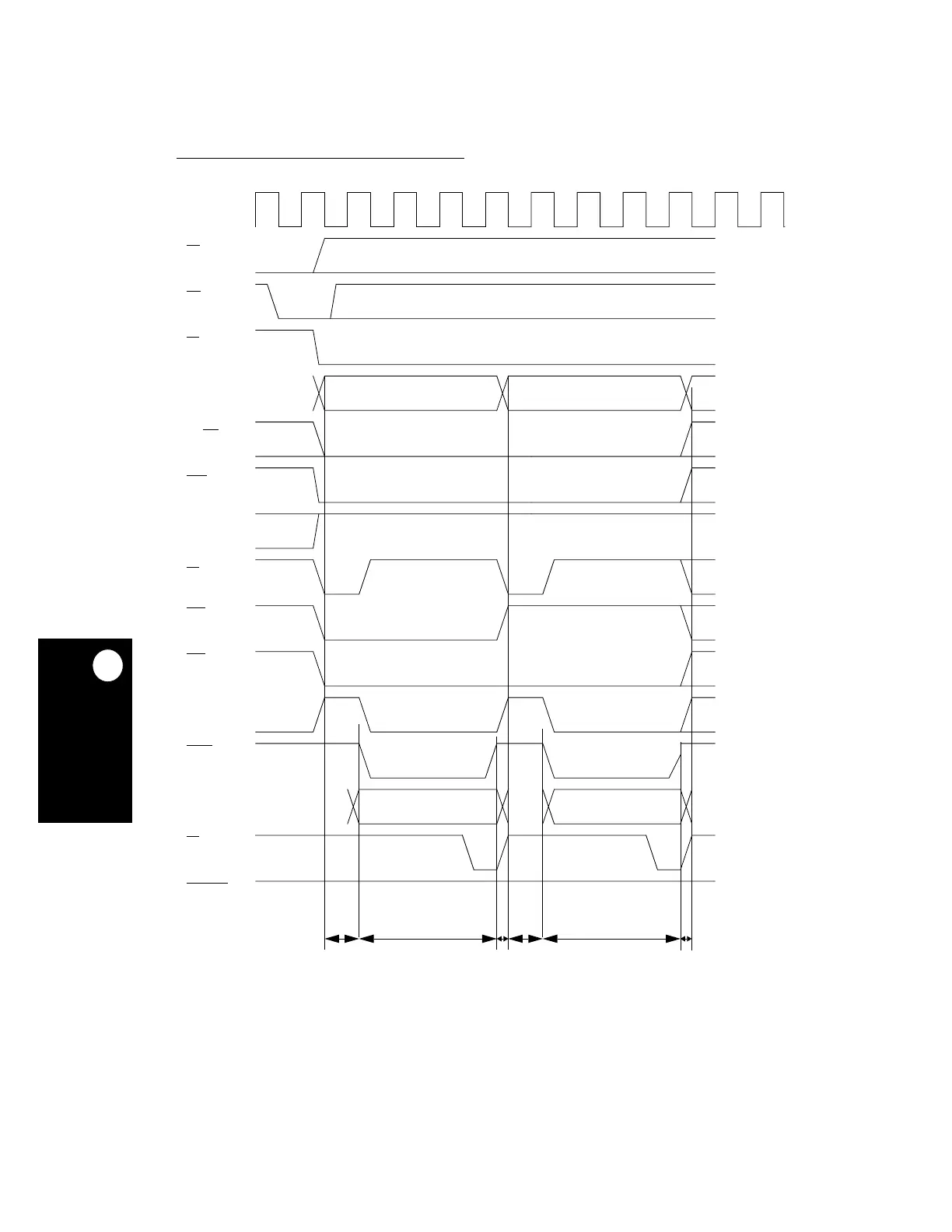

Figure 17-11. PCMCIA I/O Read of an 8-Bit Slave Port

(PPS = 1, PRS = 3, PSST = 1, PSL = 2, PSHT = 0

CLKOUT

A[0:31]

DATA

RD/WR

BURST

REG

ALE_B

IOWR

CE1

PSST PSHT

CE2

IOSI16_B

PSSTPSL PSL PSHT
