NETGEAR D6220 User Manual

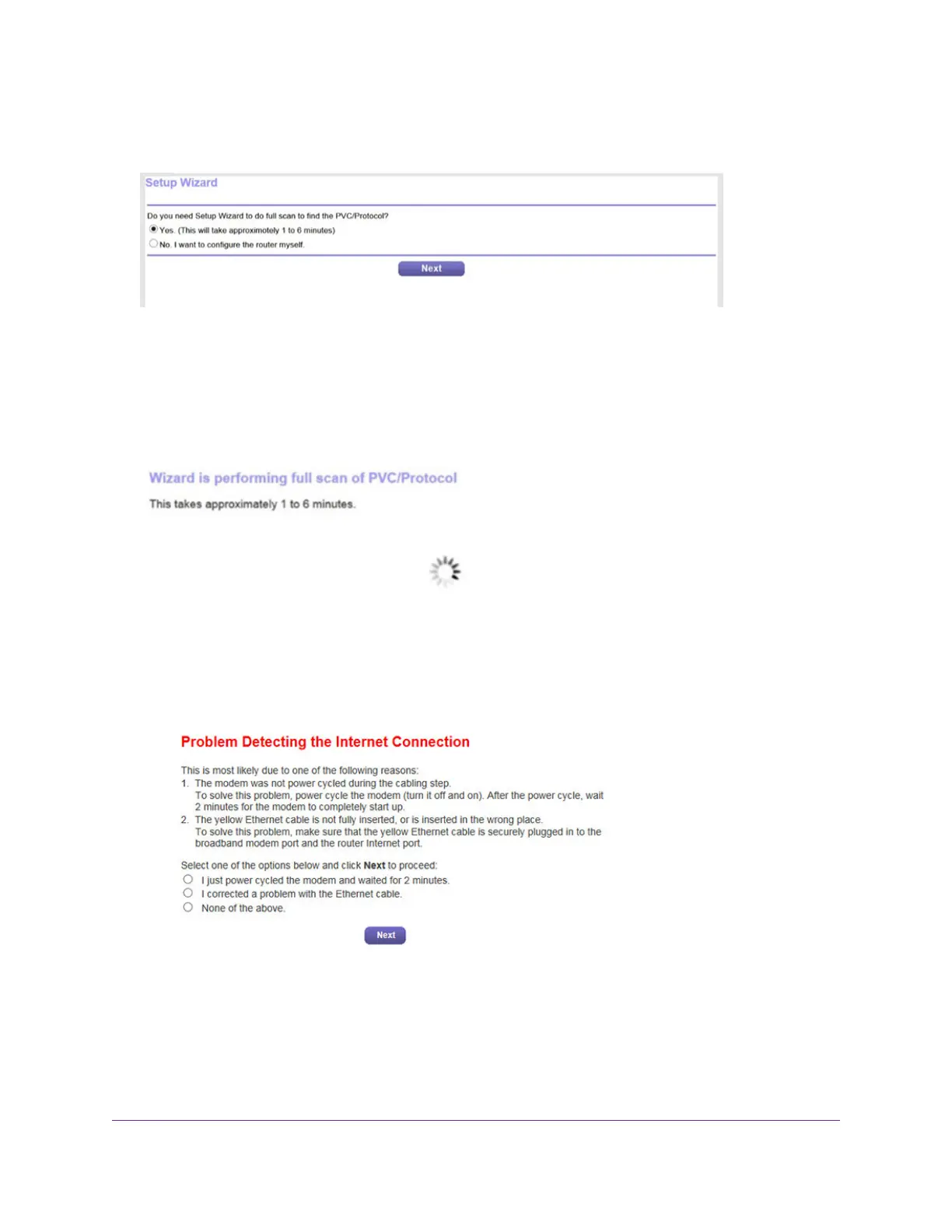

The page that might display asks you if you need the Setup Wizard to do a full scan to find the PVC
protocol. If this page does not display, continue with Step 11.
Do the following:
a. Select the Yes radio button.
b. Click the Next button.
The Setup Wizard performs a full scan, which might take up to six minutes.
11. (Only if the page in the following figure displays) Specify how to manage problems with the detection
of the Internet connection.
The page that might display states that a problem occurred while the wizard was detecting the Internet
connection. If this page does not display, continue with Step 12.
Take one of the following actions:
• If you did not yet power cycle the modem router, do so now:
a. Unplug your modem router’s power, leaving the modem router connected to either the wall jack
(for a DSL connection) or the cable modem (for a cable connection) for your Internet service.
b. Wait 10 seconds.
Manage the Internet Settings Manually
38
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
